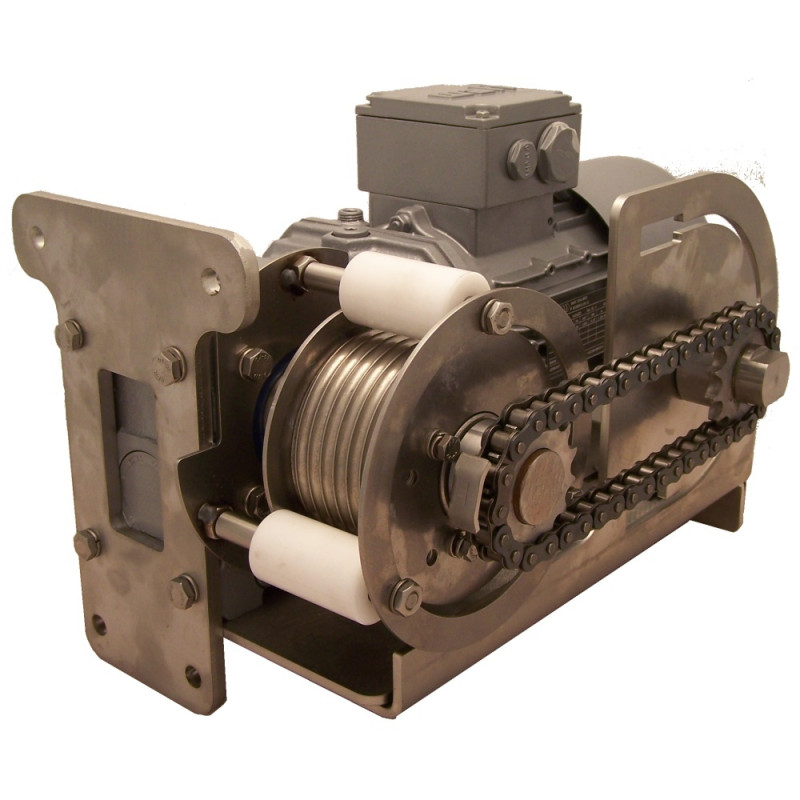

Drive Exploded View - SR2 Turbo No. 74 and higher - Lifting Aid
- Stock: On order
- Brand: Ruhle
- Type: F441265
 |
Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|---|
 |
1 | F250771 | Plate / Sheet | 230 x 160 x 8 | 1 | |
 |
2 | F21260 | Federring | DIN127 B 8 | 21 | |
 |
3 | F22449 | Sechskantschraube | DIN933 M 8 x 20 | 4 | |
 |
4 | F241268 | Plate / Sheet | 335 x 190 x 42 x 5 | 1 | |
 |
5 | F441495 | Starting sheet | SR 2 Turbo | 1 | |
 |
6 | F26600 | Scheibe | Ø 8,5 x Ø 20 x 2 | 4 | |
 |
7 | F20370 | Slide bushing | DIN1850 Ø 20 x Ø 26 x 30 | 1 | |
 |
8 | F252521 | Chain wheel | Z 14 1/2x5/16"" I-Ø 26" | 1 | |
 |
9 | F241271 | Bolt | Ø 30 x 70 x M 14 | 1 | |
 |
10 | F22916 | Washer | DIN125 A 15 | 1 | |
 |
11 | F22918 | Spring lock washer | DIN127 B 14 | 1 | |
 |
12 | F20205 | Sechskantmutter | DIN934 M 14 | 1 | |
 |
13 | F241274 | Shaft | Ø 30 x 255 | 1 | |
 |
14 | F22615 | Spring key | A 8 x 7 x 55 | 1 | |
 |
15 | F24389 | Spring key | A 8 x 7 x 65 | 1 | |
 |
16 | F21300 | Clamping ring | Ø 30.1 x Ø 55 x 24 | 1 | |
 |
17 | F22621 | Cylinder head screw | DIN912 M 8 x 25 | 1 | |
 |
18 | F441275 | Starting sheet | IR 56 / SR 2 T | 1 | |
 |
19 | F21281 | Sechskantschraube | DIN933 M 8 x 16 | 4 | |
 |
20 | F241276 | Shaft | Ø 12 x 111 | 3 | |
 |
21 | F241273 | Ring | Ø 30 x Ø 40 x 20 | 1 | |
 |
22 | F241280 | Rolle | Ø 30 x Ø 93 x 78 | 1 | |
 |
23 | F241279 | Disc | Ø 62 x Ø 115 x 2,5 | 1 | |
 |
24 | F20258 | Washer | DIN125 A 6,4 | 8 | |
 |
25 | F24031 | Spring lock washer | DIN127 B 6 | 8 | |
 |
26 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 8 | |
 |
27 | F241277 | Rolle | Ø 12 x Ø 30 x 57 | 3 | |
 |
28 | F241278 | Disc | Ø 47 x Ø 115 x 2,5 | 1 | |
 |
29 | F240582 | Disc | Ø 120 x Ø 150 x 2,5 | 1 | |
 |
30 | F20259 | Sechskantmutter | DIN934 M 8 | 3 | |
 |
31 | F252522 | Chain wheel | Z 14 1/2x5/16"" I-Ø 30" | 1 | |
 |
32 | F25432 | Gewindestift | DIN914 M 6 x 10 | 1 | |
 |
33 | F20687 | Hexagonal bolt | DIN933 M 8 x 35 | 1 | |
 |
34 | 100491 | Chain | IR 28/56 / SR 2 T | 1 | |
 |
 |
35 | F29039 | Gear motor with break | SUA 454A-72K4 BR2 | 1 |
 |
36 | F29057 | Cable gland | M 25 x 1.5 | 1 | |
 |
37 | F20948 | Cable gland | M 16 x 1.5 | 1 |
