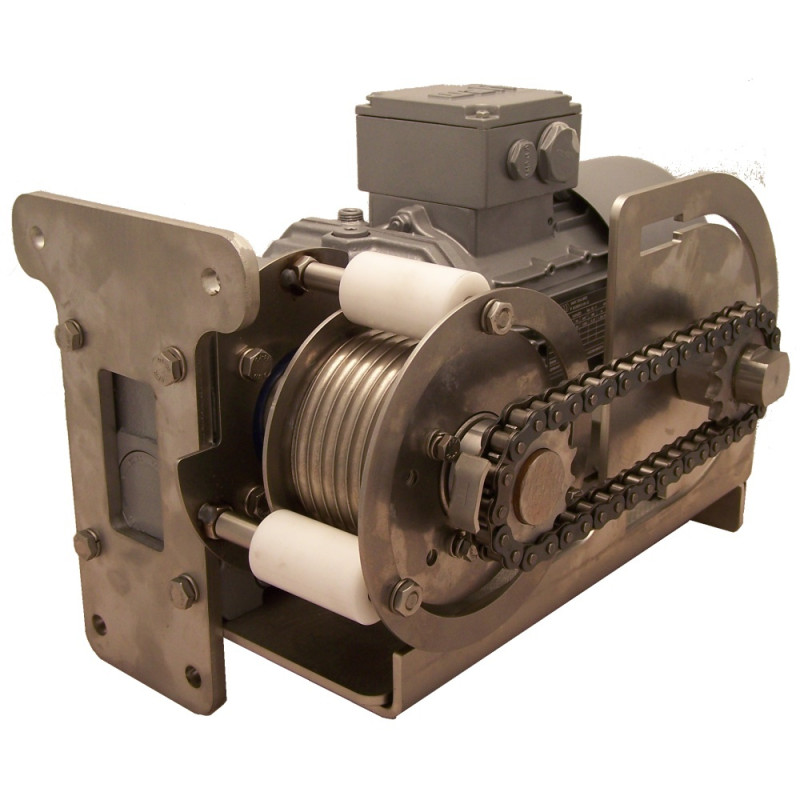

Drive Exploded View - SR2 Turbo No. 74 and higher - Lifting Aid

Type: F441265
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 780

Note: Shipping to be Determined.

* Drive Exploded View SR2 Turbo No. 74 and higher 2:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Exploded View - SR2 Turbo No. 74 and higher - Lifting Aid

Type: F441265
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 780

Note: Shipping to be Determined.

* Drive Exploded View SR2 Turbo No. 74 and higher 2:
--F250771 Plate / Sheet
--F21260 Federring
--F22449 Sechskantschraube
--F241268 Plate / Sheet
--F441495 Starting sheet
--F26600 Scheibe
--F20370 Slide bushing
--F252521 Chain wheel
--F241271 Bolt
--F22916 Washer
-- F22918 Spring lock washer
--F20205 Sechskantmutter
--F241274 Shaft
--F22615 Spring key
--F24389 Spring key
--F21300 Clamping ring
--F22621 Cylinder head screw
--F441275 Starting sheet
--F21281 Sechskantschraube
--F241276 Shaft
--F241273 Ring
--F241280 Rolle
--F241279 Disc
--F20258 Washer
-- F24031 Spring lock washer
--F20417 Hexagonal bolt
--F241277 Rolle
--F241278 Disc
--F240582 Disc
--F20259 Sechskantmutter
--F252522 Chain wheel
--F25432 Gewindestift
--F20687 Hexagonal bolt
--100491 Chain
-- F29039 Gear motor with break
--F29057 Cable gland
--F20948 Cable gland

Pos. No.	Part No.	Description	Add. Info	Required
1	F250771	Plate / Sheet	230 x 160 x 8	1
2	F21260	Federring	DIN127 B 8	21
3	F22449	Sechskantschraube	DIN933 M 8 x 20	4
4	F241268	Plate / Sheet	335 x 190 x 42 x 5	1
5	F441495	Starting sheet	SR 2 Turbo	1
6	F26600	Scheibe	Ø 8,5 x Ø 20 x 2	4
7	F20370	Slide bushing	DIN1850 Ø 20 x Ø 26 x 30	1
8	F252521	Chain wheel	Z 14 1/2x5/16"" I-Ø 26"	1
9	F241271	Bolt	Ø 30 x 70 x M 14	1
10	F22916	Washer	DIN125 A 15	1
11	F22918	Spring lock washer	DIN127 B 14	1
12	F20205	Sechskantmutter	DIN934 M 14	1
13	F241274	Shaft	Ø 30 x 255	1
14	F22615	Spring key	A 8 x 7 x 55	1
15	F24389	Spring key	A 8 x 7 x 65	1
16	F21300	Clamping ring	Ø 30.1 x Ø 55 x 24	1
17	F22621	Cylinder head screw	DIN912 M 8 x 25	1
18	F441275	Starting sheet	IR 56 / SR 2 T	1
19	F21281	Sechskantschraube	DIN933 M 8 x 16	4
20	F241276	Shaft	Ø 12 x 111	3
21	F241273	Ring	Ø 30 x Ø 40 x 20	1
22	F241280	Rolle	Ø 30 x Ø 93 x 78	1
23	F241279	Disc	Ø 62 x Ø 115 x 2,5	1
24	F20258	Washer	DIN125 A 6,4	8
25	F24031	Spring lock washer	DIN127 B 6	8
26	F20417	Hexagonal bolt	DIN933 M 6 x 16	8
27	F241277	Rolle	Ø 12 x Ø 30 x 57	3
28	F241278	Disc	Ø 47 x Ø 115 x 2,5	1
29	F240582	Disc	Ø 120 x Ø 150 x 2,5	1
30	F20259	Sechskantmutter	DIN934 M 8	3
31	F252522	Chain wheel	Z 14 1/2x5/16"" I-Ø 30"	1
32	F25432	Gewindestift	DIN914 M 6 x 10	1
33	F20687	Hexagonal bolt	DIN933 M 8 x 35	1
34	100491	Chain	IR 28/56 / SR 2 T	1
35	F29039	Gear motor with break	SUA 454A-72K4 BR2	1
36	F29057	Cable gland	M 25 x 1.5	1
37	F20948	Cable gland	M 16 x 1.5	1
