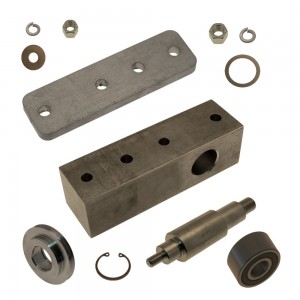

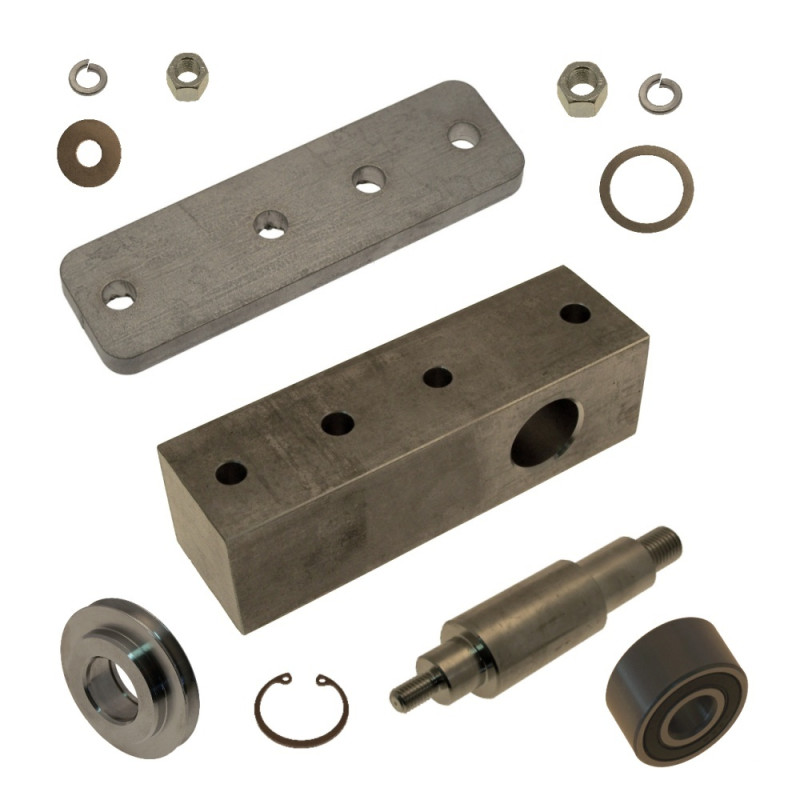

Baffle Exploded View

Type: F441284
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 784

Note: Shipping to be Determined.

* Baffle Exploded View SR2 Turbo No. 74 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Baffle Exploded View

Type: F441284
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 784

Note: Shipping to be Determined.

* Baffle Exploded View SR2 Turbo No. 74 and higher:
--F241304 Plate
--F240572 Housing
--F241286 Disc
--F240575 Shaft
--F20259 Sechskantmutter
--F20210 Federring
--F240576 Rolle
--F20562 Tapered ball bearing
--F22390 Locking ring
--F240574 Disc
--F26903 Spring lock washer
--F20563 Hexagonal nut

Pos. No.	Part No.	Description	Add. Info	Required
1	F241304	Plate	170 x 50 x 12	1
2	F240572	Housing	170 x 50 x 50	1
3	F241286	Disc	Ø 31 x Ø 40 x 4	1
4	F240575	Shaft	Ø 40 x 176	1
5	F20259	Sechskantmutter	DIN934 M 8	1
6	F20210	Federring	DIN127 A 12	1
7	F240576	Rolle	Ø 46 x Ø 112 x 34	1
8	F20562	Tapered ball bearing	DIN628 - 3205	1
9	F22390	Locking ring	DIN472 Ø 52 x 2	1
10	F240574	Disc	Ø 13 x Ø 33 x 5	1
11	F26903	Spring lock washer	DIN127 B 20	1
12	F20563	Hexagonal nut	DIN934 M 20	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Pos. No.	Part No.	Description	Add. Info	Required
1	F241304	Plate	170 x 50 x 12	1
2	F240572	Housing	170 x 50 x 50	1
3	F241286	Disc	Ø 31 x Ø 40 x 4	1
4	F240575	Shaft	Ø 40 x 176	1
5	F20259	Sechskantmutter	DIN934 M 8	1
6	F20210	Federring	DIN127 A 12	1
7	F240576	Rolle	Ø 46 x Ø 112 x 34	1
8	F20562	Tapered ball bearing	DIN628 - 3205	1
9	F22390	Locking ring	DIN472 Ø 52 x 2	1
10	F240574	Disc	Ø 13 x Ø 33 x 5	1
11	F26903	Spring lock washer	DIN127 B 20	1
12	F20563	Hexagonal nut	DIN934 M 20	1
