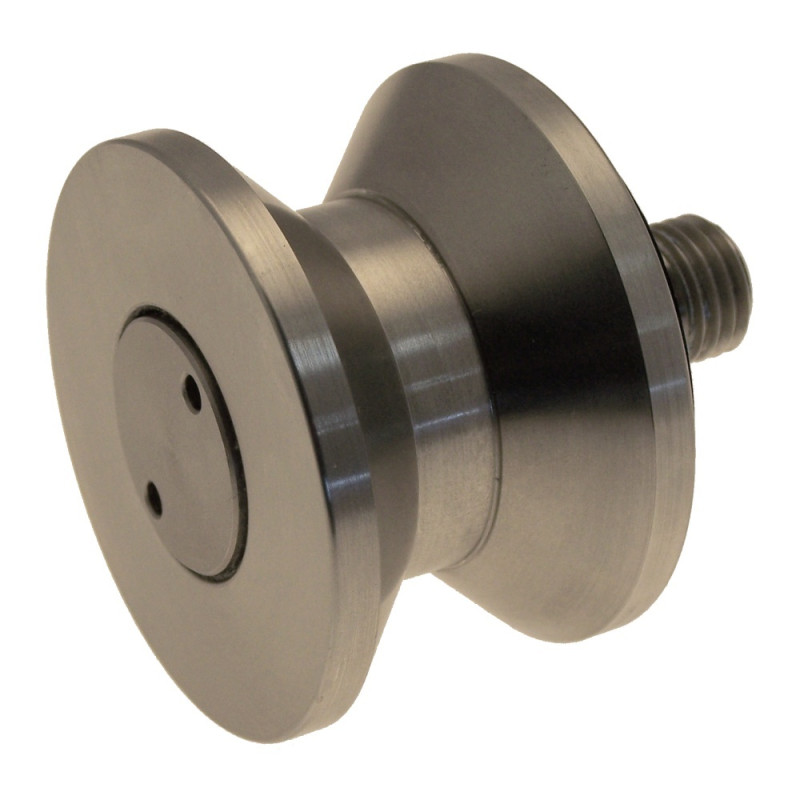

Rolle Exploded View 1 - SR2 Turbo No. 74 and higher

Type: 101191
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 786

Note: Shipping to be Determined.

* Rolle Exploded View SR2 Turbo No. 74 and higher 1:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rolle Exploded View 1 - SR2 Turbo No. 74 and higher

Type: 101191
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 786

Note: Shipping to be Determined.

* Rolle Exploded View SR2 Turbo No. 74 and higher 1:
--F29381 Rolle
--F26877 Tapered ball bearing
--F29380 O-ring
--F27442 Sealing ring
--F241360 Shaft
--F241358 Bolt

Pos. No.	Part No.	Description	Add. Info	Required
1	F29381	Rolle	Ø 30 x Ø 80 x 52	1
2	F26877	Tapered ball bearing	DIN628 - 3202 2RS	2
3	F29380	O-ring	Ø 34 x 3	1
4	F27442	Sealing ring	Ø 54 x Ø 64 x 5,5	1
5	F241360	Shaft	Ø 34 x 64	1
6	F241358	Bolt	Ø 30 x 38	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Pos. No.	Part No.	Description	Add. Info	Required
1	F29381	Rolle	Ø 30 x Ø 80 x 52	1
2	F26877	Tapered ball bearing	DIN628 - 3202 2RS	2
3	F29380	O-ring	Ø 34 x 3	1
4	F27442	Sealing ring	Ø 54 x Ø 64 x 5,5	1
5	F241360	Shaft	Ø 34 x 64	1
6	F241358	Bolt	Ø 30 x 38	1
