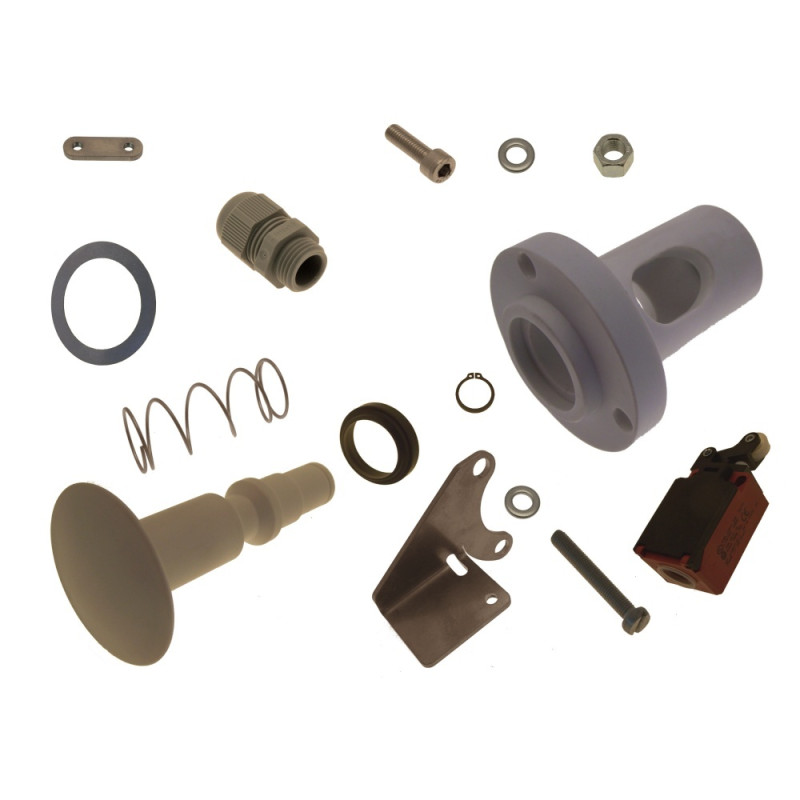

Push Button Complete
Type: 103732
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 788
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 788
Note: Shipping to be Determined.
Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F241961 | Bushing | Ø 18,2 x Ø 69 x 85 | 1 |
 |
2 | F24707 | Pressure spring | d1.5 x De24 x 65 | 1 |
 |
3 | F29138 | Scraper | 25 x 33 x 4/7 | 1 |
 |
4 | F241960 | Push button | Ø 59 x 112,3 | 1 |
 |
5 | F25452 | Disc | Ø 18 x Ø 25 x 0,1 | 1 |
 |
6 | F27852 | Locking ring | DIN471 Ø 18 x 1 | 1 |
 |
7 | F241400 | Housing | 74,9 x 64,5 x 40 x 3 | 1 |
 |
8 | F20569 | Cylinder head screw | DIN84 M 4 x 30 | 2 |
 |
9 | F20570 | U-Scheibe | DIN125 A 4,3 | 2 |
 |
10 | F20375 | Plate / Sheet | 36 x 12 x 4 | 1 |
 |
11 | F27761 | Cylinder head screw | DIN912 M 5 x 30 | 2 |
 |
12 | F20258 | Washer | DIN125 A 6,4 | 3 |
 |
13 | F20203 | Hexagonal nut | DIN934 M 6 | 3 |
 |
14 | F29040 | Limit switch | Ti2-SU1Z Hw | 1 |
 |
15 | F20948 | Cable gland | M 16 x 1.5 | 1 |
