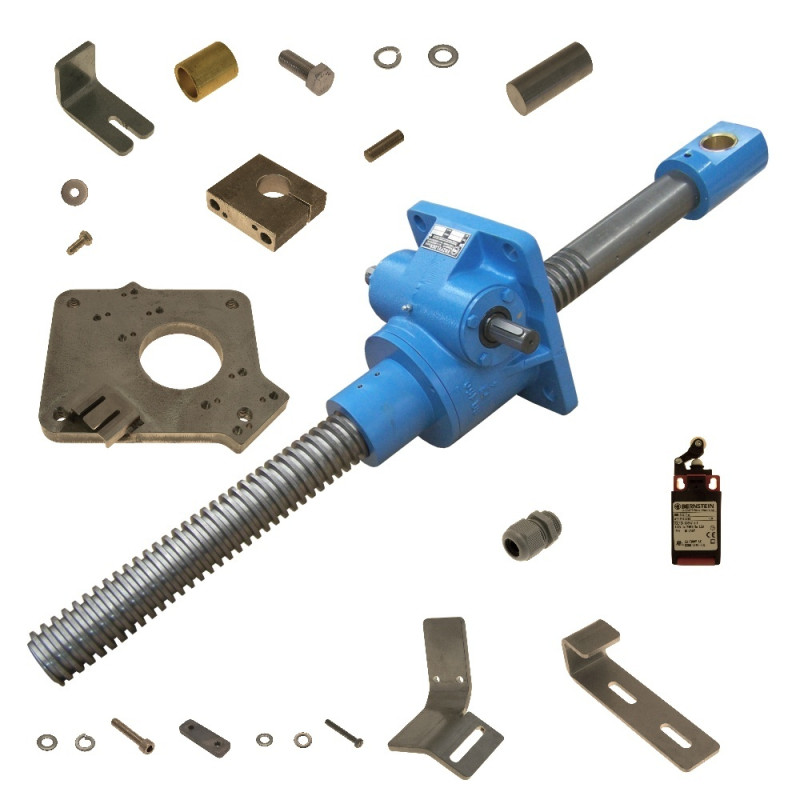

Spindle unit Complete Ruhle SR3 Dicer No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F28618 | bolt | Ø 30 x 72 | 2 |
 |
2 | F28614 | Lifting spindle | 1075 mm | 1 |
 |
3 | F23713 | Washer | DIN125 A 17 | 4 |
 |
4 | F24015 | Spring lock washer | DIN127 B 16 | 4 |
 |
5 | F25287 | Hexagonal bolt | DIN933 M16 x 45 | 4 |
 |
6 | F28622 | bushing | Ø 40 x Ø 50 x 62 | 1 |
 |
7 | F28624 | Bracket | 65 x 35 x 30 x 5 | 1 |
 |
8 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 1 |
 |
9 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 1 |
 |
10 | 104658 | Plate | SR 3 | 1 |
 |
11 | F28617 | Plate | 80 x 70 x 25 | 4 |
 |
12 | F22650 | Cylindrical pin | ISO8734 - Ø 6 m6 x 20 | 8 |
|
13 | F27693 | Washer | DIN125 A 10,5 | 8 |
 |
14 | F26379 | Spring lock washer | DIN127 B 10 | 8 |
 |
15 | F27786 | Cylinder head screw | DIN912 M10 x 90 | 8 |
 |
16 | F26346 | plate / sheet | 36 x 12 x 4 | 1 |
|
17 | F20570 | Washer | DIN125 A 4,3 | 2 |
 |
18 | F21045 | Washer | DIN125 A 5,3 | 2 |
 |
19 | F23034 | Cylinder head screw | DIN84 M 4 x 35 | 2 |
 |
20 | F28623 | Bracket | 131 x 70,25 x 5 | 1 |
|
21 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 1 |
|
22 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 1 |
|
23 | F26346 | plate / sheet | 36 x 12 x 4 | 1 |
|
24 | F20570 | Washer | DIN125 A 4,3 | 2 |
|
25 | F23034 | Cylinder head screw | DIN84 M 4 x 35 | 2 |
|
26 | F21045 | Washer | DIN125 A 5,3 | 2 |
 |
27 | F28625 | Bracket | 50 x 140 x 35 x 5 | 1 |
|
28 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 2 |
|
29 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 2 |
 |
30 | F22285 | Limit switch | 188-A2Z left | 1 |
 |
31 | F29058 | Cable gland | M 20 x 1.5 | 1 |
|
32 | F22285 | Limit switch | 188-A2Z left | 1 |
|
33 | F29058 | Cable gland | M 20 x 1.5 | 1 |
