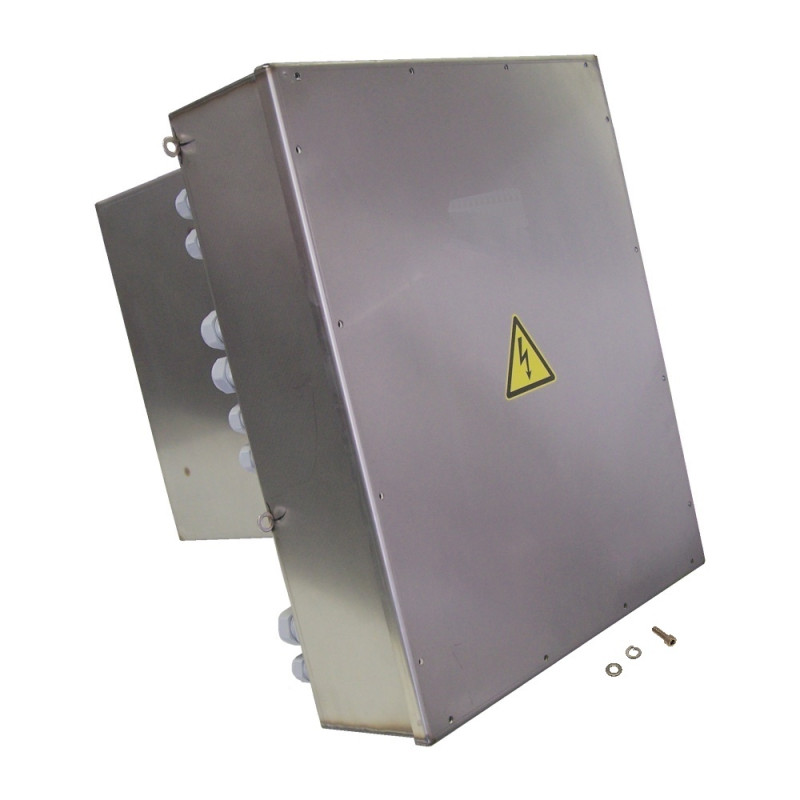

Switch box Assembly for Ruhle IR56 Meat Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 102052 | Switch box | IR 56 | 1 |
 |
2 | F240736 | Lid | 621 x 531 x 18 | 1 |
 |
3 | F20664 | Seal | 18 x 3 | 1.5 m |
 |
4 | F240740 | Lid | 446 x 367 x 30 | 1 |
 |
5 | F22174 | Cylinder head screw | DIN912 M 5 x 12 | 28 |
 |
6 | F20258 | Washer | DIN125 A 6,4 | 4 |
 |
7 | F24031 | Spring lock washer | DIN127 B 6 | 4 |
 |
8 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
 |
9 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 3 |
|
10 | F21260 | Spring lock washer | DIN127 B 8 | 3 |
 |
11 | F20455 | Hexagonal bolt | DIN933 M 8 x 25 | 2 |
 |
12 | F10131 | Sticker | flash | 2 |
 |
13 | F240727 | Bracket | 104 x 104 x 30 | 1 |
 |
14 | F20259 | Hexagonal nut | DIN934 M 8 | 1 |
 |
15 | F25303 | Cable | ÖZ-J 7x1.0 mm² | 2650 mm |
 |
16 | 101781 | Cable for FC A1.2 | IR 28/56 | 1 |
 |
17 | 101783 | Cable for FC A2.2 | IR 28/56 | 1 |
 |
18 | 101784 | Cable power supply unit G3 | IR 28/56 | 1 |
 |
19 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 3100 mm |
|
20 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 2900 mm |
 |
21 | F23309 | Socket | GDM 3011 | 2 |
|
22 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 3000 mm |
 |
23 | F23523 | Cable | ÖZ-O 2 x 1.0 mm² | 2100 mm |
 |
24 | F20694 | Cable | ÖZ-O 2 x 0,5 mm² | 2350 mm |
 |
25 | F28388 | Contact element 1Ö | E01 | 1 |
 |
26 | 101811 | Cable for FC A1.2 | IR 28/56 | 1 |
|
27 | F25303 | Cable | ÖZ-J 7x1.0 mm² | 2650 mm |
 |
28 | 101804 | Cable for FC A2.2 | IR 28/56 | 1 |
 |
29 | F27759 | Cable | ÖCYZ-J 4x1.5 mm² | 1200 mm |
|
30 | F27759 | Cable | ÖCYZ-J 4x1.5 mm² | 1500 mm |
 |
31 | F23730 | Cable | ÖZ-J 7 x 1.5 mm² | 2950 mm |
 |
32 | F27425 | Cable | ÖZ-J 5 x 1.5 mm² | 2750 mm |
 |
33 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 3150 mm |
|
34 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 2700 mm |
|
35 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 2400 mm |
 |
36 | 101768 | Cable main power supply filter | IR 28/56 | 1 |
 |
37 | F27483 | Cable | ÖZ-J 3 x 1.5 mm² | 3050 mm |
 |
38 | 101770 | Cable for power supply unit G3 | IR 28/56 | 1 |
