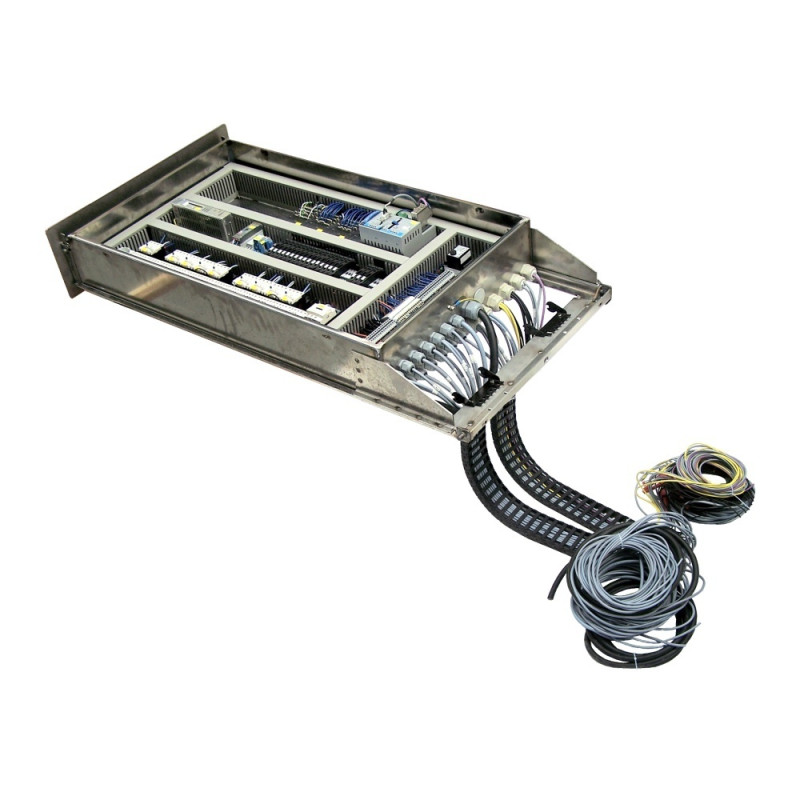

Switch Box Assembly for SR3 No. 35 and higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F41952 | Switch box | SR 3 | 1 |
 |
2 | 104635 | Mounting plate | SR 3 | 1 |
 |
3 | F28732 | lock washer | DIN6797-A ø 6,4 | 1 |
 |
4 | F20258 | Washer | DIN125 A 6,4 | 3 |
 |
5 | F24031 | Spring lock washer | DIN127 B 6 | 11 |
 |
6 | F20203 | Hexagonal nut | DIN934 M 6 | 6 |
 |
7 | F21385 | Hexagonal bolt | DIN933 M 6 x 30 | 1 |
 |
8 | F20664 | Seal | 18 x 3 | 3 |
 |
9 | F28718 | Lid | 938 x 554 x 26,5 x 1,5 | 1 |
 |
10 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 14 |
 |
11 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 10 |
 |
12 | F29189 | Solenoid | 67 x 25 x 16 | 2 |
|
13 | F20570 | Washer | DIN125 A 4,3 | 4 |
 |
14 | F21377 | Cylinder head screw | DIN84 M 4 x 25 | 4 |
 |
15 | F28728 | Grooved ball bearing | DIN625 - 6300 2RS | 2 |
 |
16 | F29058 | Cable gland | M 20 x 1.5 | 13 |
 |
17 | F246492 | Cable gland | M 32 x 1.5 2 x 7/3 x 7 S | 3 |
 |
18 | F28006 | Cover | CA 20 schwarz, Gummi | 1 |
 |
19 | F28005 | Cover | CA 20, klar halbiert | 2 |
 |
20 | F26173 | Cable gland | M 32 x 1.5 8 x 5 | 2 |
 |
21 | F143741 | blank plug | M 32 x 1,5 | 2 |
 |
22 | F24720 | Hexagonal nut | M 32 x 1,5 | 8 |
 |
23 | F10131 | Sticker | flash | 1 |
 |
24 | F29057 | Cable gland | M 25 x 1.5 | 1 |
 |
25 | F29060 | Hexagonal nut | M 25 x 1,5 | 1 |
 |
26 | F23066 | Cable | ÖZ-J 4 x 1.0 mm² | 9.8 m |
 |
27 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 20.2 m |
 |
28 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 6.4 m |
 |
29 | F23523 | Cable | ÖZ-O 2 x 1.0 mm² | 13.1 m |
 |
30 | F28791 | Cable | ÖZ-O 4x0.75 mm² | 10.2 m |
 |
31 | 106619 | Cable | Liycy 7 x 0.5 mm² | 4.5 m |
 |
32 | F27483 | Cable | ÖZ-J 3 x 1.5 mm² | 4 |
 |
33 | F28100 | Cable | Liycy 2 x 0.5 mm² | 14.46 m |
 |
34 | F20700 | Cable | Liycy 3 x 0.5 mm² | 5 |
 |
35 | 102494 | Cable for supply | SR 3 Servo | 1 |
 |
36 | 102496 | Cable for IPC-PLC | SR 3 Servo | 1 |
 |
37 | F24379 | BUS cable CAN bus | Unitronik BUS CAN UL/CSA | 5.2 m |
 |
38 | F23525 | Cable | ÖZ-J 5 x 1.0 mm² | 4 |
 |
39 | F20694 | Cable | ÖZ-O 2 x 0,5 mm² | 6.6 m |
 |
40 | F247557 | Brake resistance | FR-ABR-H 3.7 K | 1 |
|
41 | F29060 | Hexagonal nut | M 25 x 1,5 | 1 |
 |
42 | F242947 | Cable gland | M 25 x 1.5 / brass | 1 |
 |
43 | F249129 | Hood metal. | 9 poles SUB D | 2 |
 |
44 | F246494 | Cable gland | M 32 x 1.5 2 x 8/2 x 6 | 1 |
 |
45 | F249013 | Plug-in connector SUB D, TM | 9 poles SUB D | 2 |
 |
46 | F21613 | Main switch 25A | CA20 T103/D-A008 FT22 | 1 |
|
47 | F25780 | Hexagonal nut | M 20 x 1,5 | 13 |
