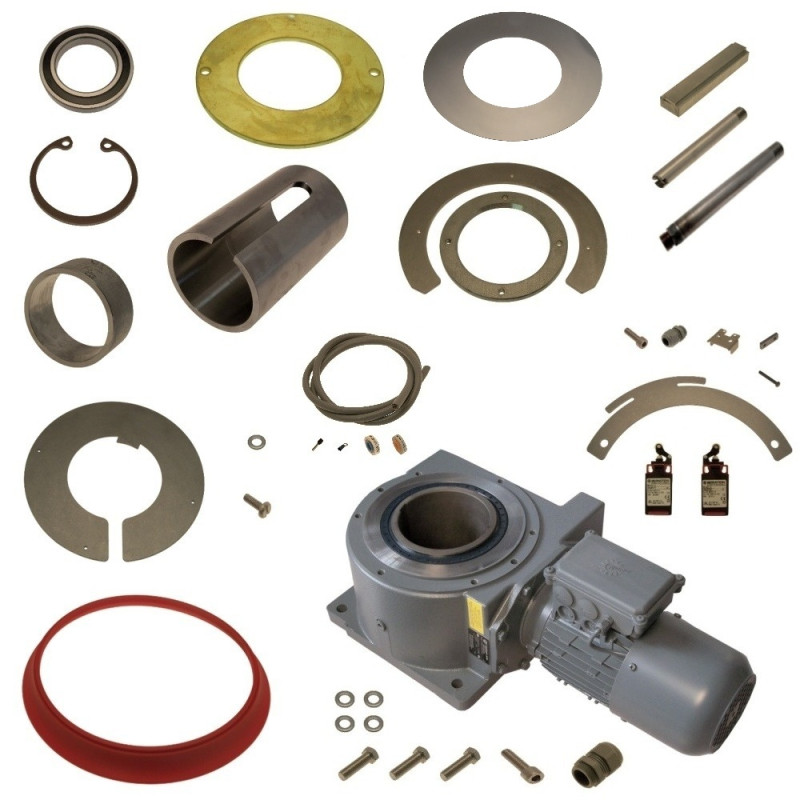

Trommelschwenkung Assembly
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | 107825 | Rillenkugellager | 6022 2RS R | 2 | |
 |
2 | 107824 | Sicherungsring | DIN472 Ø 170 x 4 | 2 | |
 |
3 | 107916 | Buchse | Ø 111 x Ø 125 x 54 | 1 | |
 |
4 | 107823 | Ring | Ø 133 x Ø 242 x 5 | 1 | |
 |
6 | 107955 | Buchse | Ø 110 x Ø 128 x 200 | 1 | |
 |
7 | 107956 | Paßfeder | 28 x 21 x 145 | 1 | |
 |
8 | 108174 | Drum swivelling | MKR 400 | 1 | |
 |
9 | 107953 | Scheibe | Ø 110,2 x Ø 210 x 3 | 1 | |
 |
10 | 107954 | Mutter | M110 x 1,5 x Ø 150 x 10 | 1 | |
 |
11 | 108129 | Schaltscheibe | Ø 170 x Ø 232 x 5 | 1 | |
 |
12 | F20570 | U-Scheibe | DIN125 A 4,3 | 6 | |
 |
13 | F28952 | Zylinderschraube | DIN84 M 4 x 12 | 3 | |
 |
14 | 107915 | Rohr | Ø 14 x 2,5 x 120 | 1 | |
 |
15 | 108176 | Vakuumrohr | MGR 400 | 1 | |
 |
16 | 107822 | Abstreifer | Ø 330 x Ø 390 x 35 | 1 |
