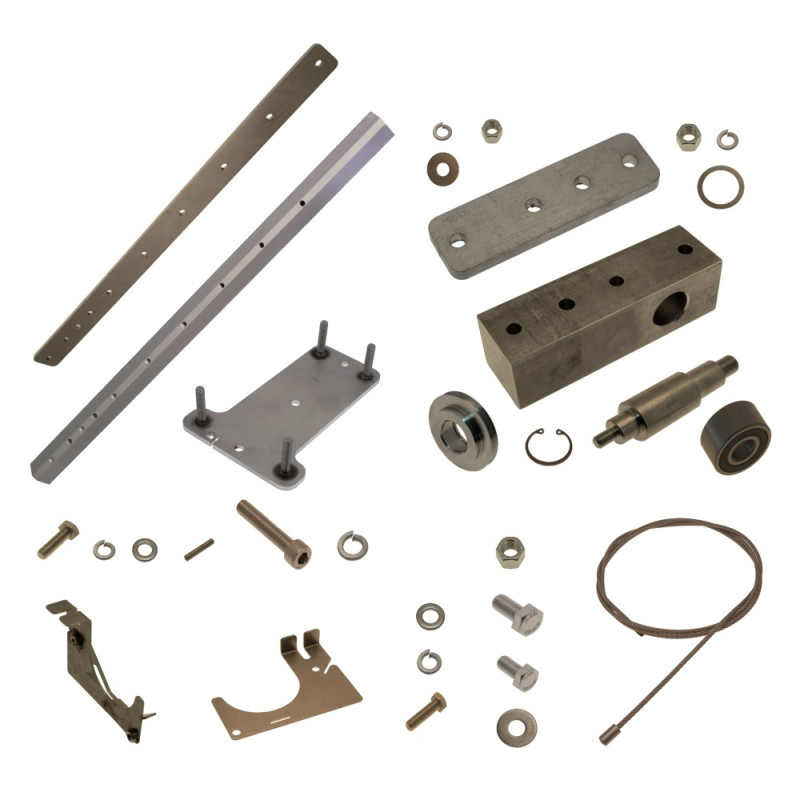

Baffle Complete for Ruhle SR2 Dicer
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F240571 | Guide | 950 x 57.2 x 54.2 | 1 |
 |
2 | F441289 | Plate | SR 2 Turbo | 1 |
 |
3 | F20693 | Hexagonal bolt | DIN933 M10 x 35 | 2 |
 |
4 | F26379 | Spring lock washer | DIN127 B 10 | 6 |
 |
5 | F27693 | U-Scheibe | DIN125 A 10,5 | 6 |
 |
6 | F241305 | Plate / Sheet | 740 x 50 x 8 | 1 |
 |
7 | F441284 | baffle | SR 2 Turbo | 1 |
 |
8 | F29002 | Cylindrical pin | ISO2338 - Ø10 m6 x 60 | 2 |
 |
9 | F27786 | Cylinder head screw | DIN912 M10 x 90 | 2 |
|
10 | F26379 | Spring lock washer | DIN127 B 10 | 2 |
 |
11 | F441315 | Cover | SR 2 Turbo | 1 |
 |
12 | F241306 | Profile | 153 x 115 x 30 x 2,5 | 1 |
 |
13 | F20449 | Hexagonal bolt | DIN933 M 8 x 30 | 2 |
|
14 | F21260 | Spring lock washer | DIN127 B 8 | 2 |
|
15 | F22888 | U-Scheibe | DIN125 A 8,4 | 2 |
 |
16 | F20259 | Hexagonal nut | DIN934 M 8 | 2 |
 |
17 | F20402 | Hexagonal bolt | DIN933 M10 x 30 | 1 |
|
18 | F20588 | Hexagonal bolt | DIN933 M10 x 40 | 3 |
 |
19 | F26600 | Scheibe | Ø 8,5 x Ø 20 x 2 | 2 |
 |
20 | F29345 | Rope | Ø 6 x Ø 19 x 2500 | 1 |
