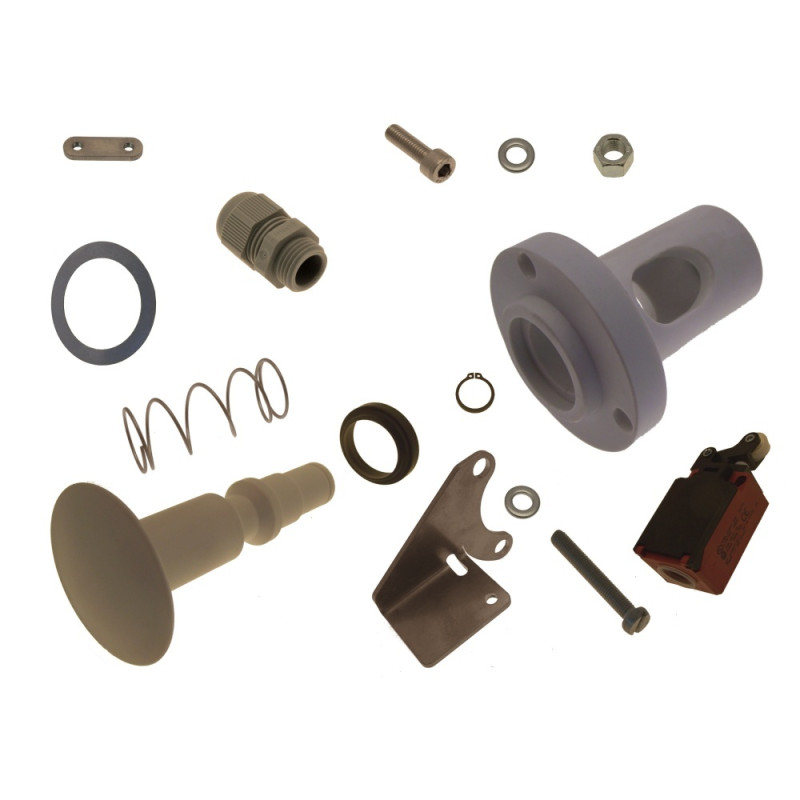

Push Button Complete

Type: 103732
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 712
* Push button Complete:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F241961 Bushing Ø 18,2 x Ø 69 x 85 1
2 F24707 Pressure spring d1.5 x De24 x 65 1
3 F29138 Scraper 25 x 33 x 4/7 1
4 F241960 Push button Ø 59 x 112,3 1
5 F25452 Disc Ø 18 x Ø 25 x 0,1 1
6 F27852 Locking ring DIN471 Ø 18 x 1 1
7 F241400 Housing 74,9 x 64,5 x 40 x 3 1
8 F20569 Cylinder head screw DIN84 M 4 x 30 2
9 F20570 U-Scheibe DIN125 A 4,3 2
11 F20375 Plate / Sheet 36 x 12 x 4 1
12 F27761 Cylinder head screw DIN912 M 5 x 30 2
13 F20258 Washer DIN125 A 6,4 3
14 F20203 Hexagonal nut DIN934 M 6 3
15 F29040 Limit switch Ti2-SU1Z Hw 1
16 F20948 Cable gland M 16 x 1.5 1
