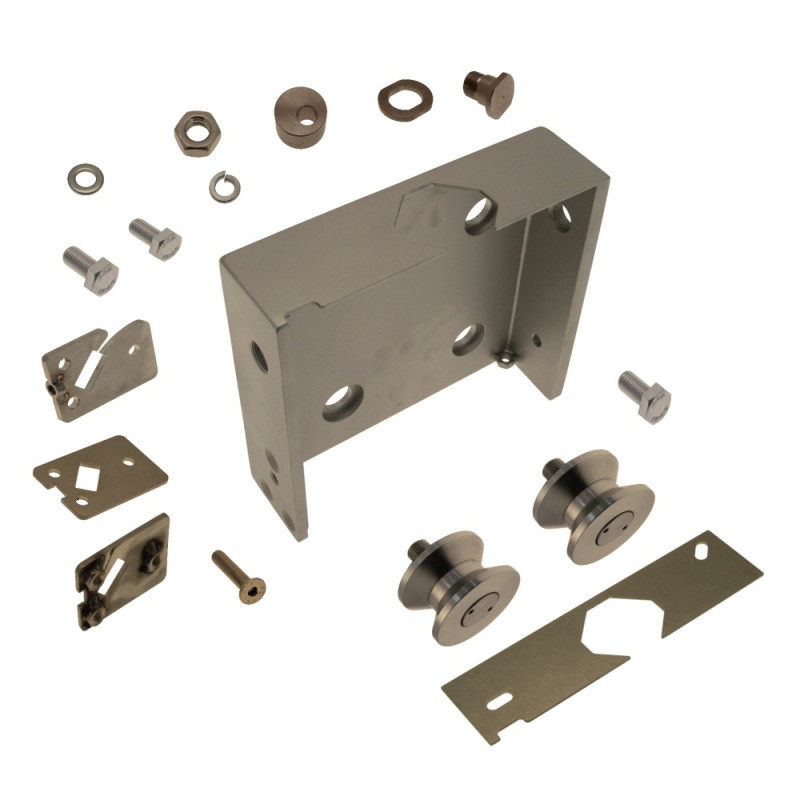

Guide Complete SR2 Turbo

Guide Complete SR2 Turbo
Guide Complete SR2 Turbo
Guide Complete for Ruhle SR2 Turbo Meat Dicer   Pos No. Part No. Descript... Read More

  • Stock: Pre-Order
  • Brand: Ruhle
  • Type: F441285

Available Options

Request Quote
Baffle Complete SR2 Dicer 103726
Quickview
Baffle Complete SR2 Dicer 103726
View Details Request Quotes
Baffle Exploded View SR2 Dicer
Quickview
Baffle Exploded View SR2 Dicer
View Details Request Quotes
Drive Complete Parts SR2 Turbo Dicer
Quickview
Drive Complete Parts SR2 Turbo Dicer
View Details Request Quotes
Drive Exploded View SR2 Turbo F441265
Quickview
Drive Exploded View SR2 Turbo F441265
View Details Request Quotes
Fork Complete Ruhle SR2 Dicer
Quickview
Fork Complete Ruhle SR2 Dicer
View Details Request Quotes
Gear Motor with Break Exploded View
Quickview
Gear Motor with Break Exploded View
View Details Request Quotes
Lifting Aid Assembly Ruhle SR2 Dicer
Quickview
Lifting Aid Assembly Ruhle SR2 Dicer
View Details Request Quotes
Push Button Complete Ruhle SR2 Turbo
Quickview
Push Button Complete Ruhle SR2 Turbo
View Details Request Quotes

Guide Complete for Ruhle SR2 Turbo Meat Dicer

  Pos No. Part No. Description Add Info Required
F441318 1 F441318 Cover SR 2 Turbo 1
101191 2 101191 Rolle SR 2 Turbo 2
101192 3 101192 Rolle SR 2 Turbo 2
F240594 4 F240594 Disc Ø 22,2 x Ø 36 x 5 4
F26720 5 F26720 Cap nut DIN917 M 20 4
F26379 6 F26379 Spring lock washer DIN127 B 10 2
F241356 7 F241356 Eccentric tappet Ø 11 x Ø 30 x 12 2
F22138 8 F22138 Hexagonal bolt DIN933 M10 x 25 2
F241355 9 F241355 Bolt Ø 32 x 33 2
F441354 10 F441354 Starting sheet SR 2 Turbo 1
103356 11 103356 Starting sheet SR 2 Turbo 1
F241351 12 F241351 Plate / Sheet 79 x 54 x 4 1
F20834 13 F20834 Countersunk bolt DIN7991 M 8 x 35 3
F241239 14 F241239 Plate / Sheet 236 x 61 x 2,5 1
F22888 15 F22888 Washer DIN125 A 8,4 2
F20267 16 F20267 Hexagonal bolt DIN933 M 8 x 10 1
F21281 17 F21281 Hexagonal bolt DIN933 M 8 x 16 1
