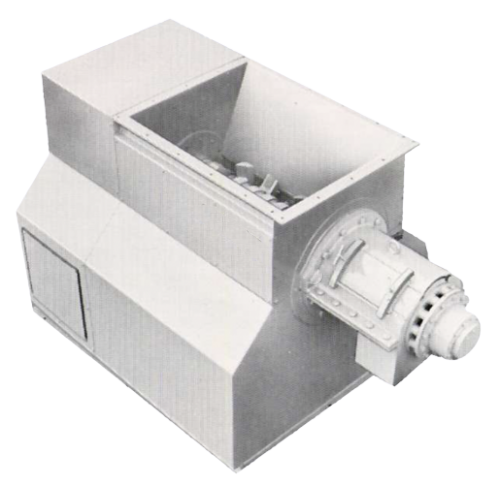

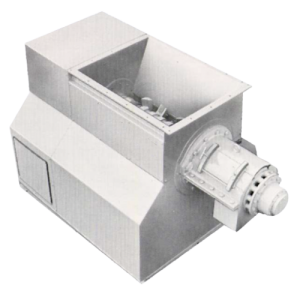

Crusher CM 60-100

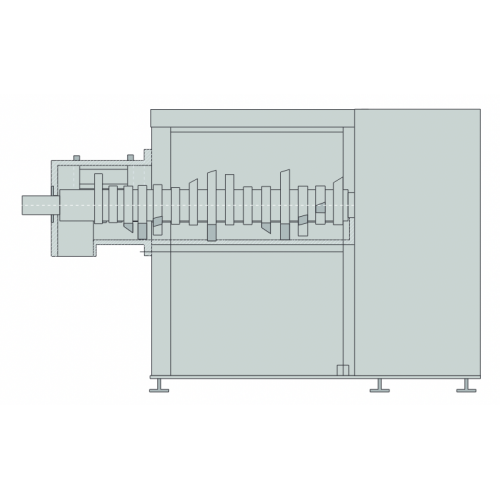

This crusher is intended to pre-crush bone waste and whole carcases. The machine has a revolving crusher roll provided with hardened cross knives which run towards interchangeable solids of steel. To guarantee a good output, the tube of the crusher roll is provided with diagonal lifters. The crusher roll also has a feeding effect.
This crusher has strong bearing with labyrinth seals to prevent leaking and to protect the bearings itself. The machine will crush the material, therefore it is possible to transport it by the pneumatic air system. The driving occurs by a double V-belt transmission equipped with special narrow V-belts with great pull and long length of life.
Specifications:
- Basic frame and covers made of normal steel and finished by paint
- Inlet hopper and work lining made of durability steel
- Equipped with revolving crusher roll with hardened cross knives
- The motor: 400/600V, 50/60Hz (Other power options available)
- Adjustable legs on grate to allow for leveling on the floor and fixing it to the floor
- Construction of machine uses only FDA certified materials
- CE certification
Electrical equipment included:
- Control box with pushbuttons and emergency stop
- Control voltage: 24 VAC 50/60Hz
- Safety switch for door of electrical motor chamber
Technical Data:
|
CM60 |
CM100 |
Crushing capacity: |
10 t/h |
20-30 t/h |
Motor: |
45kW/60 HP |
75kW/100 HP |
Transmission: |
V-belts |
V-belts |
Net weight: |
1800kg |
5300kg |
Shipping volume: |
6, 2-6, 8m 3 |
12, 8-13, 2m 3 |
Dimensions |
1750 x 1450 x 2000mm (lxwxh) |
2850 x 1800 x 1900mm (lxwxh) |
