Continuous Belt Line Fryer CF-89W

Type: Frying Time: 25s-18m
Country of Origin: Taiwan
Ships from: FOB Brampton, Ontario, Canada
U/M: Each
Stock: On Order
Shipping Dimension: 70 X 37 X 50
Shipping Weight: 331 lbs
HTS Code:8419.81.9040
CM: 8590

Financing Available

Note: Shipping to be determined

Power Option:

* Electrical Certification:

* Required Frying Time for CF-89/89W:

* Accessories for Fryers:

		Cover with Exhaust
		Oil Separators Filter
		Oil Filter Papers(1 carton)
		Belt Made For Doughnut Frying

* Conveyor Belt Type:

		T-Shape (Standard) for bigger products
		Cross Shape for smaller products 12 mm
		Cross Shape for smaller products 5 mm

* Product Size and Weight:

* Kind of Product:

* Production units/ hour:

* Type of Frying Oil:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Continuous Belt Line Fryer CF-89W

Type: Frying Time: 25s-18m
Location: FOB Brampton, Ontario, Canada
U/M: Each
Stock: On Order
Shipping Dimension: 70 X 37 X 50
Shipping Weight: 331 lbs
HTS Code:8419.81.9040
CM Product Code: 8590

Financing Available

Note: Shipping to be determined

Power Option:
--220V 60Hz 3Ph

* Electrical Certification:
--Standard - Conforms to CE or CE marking
--Optional - CSA SPE-1000 for Canada
--Optional - TUV/UL For U.S.A.

* Required Frying Time for CF-89/89W:
--From 25 secs To 1 min 40 secs
--From 45 secs To 3 min
--From 1 min 7.5 secs To 4 min 30 secs
--From 2 min 15 secs To 9 min
--From 4 min 30 secs To 18 mins

* Accessories for Fryers:

		Cover with Exhaust
		Oil Separators Filter
		Oil Filter Papers(1 carton)
		Belt Made For Doughnut Frying

* Conveyor Belt Type:

		T-Shape (Standard) for bigger products
		Cross Shape for smaller products 12 mm
		Cross Shape for smaller products 5 mm

* Product Size and Weight:

* Kind of Product:

* Production units/ hour:

* Type of Frying Oil:

Inline Continuous Fryer CF-89W

Build & Performance

Material Durable, high-quality 304 stainless steel construction for maximum longevity and hygiene.

Customizable Standard 12cm (4.7") belt gap; distance between double conveyors is adjustable upon request to suit specific products

Infeed & Operation

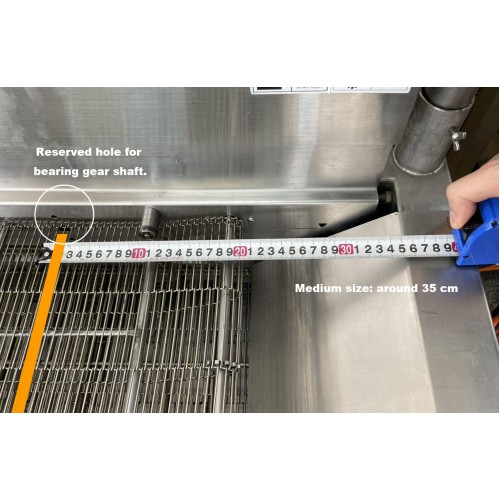

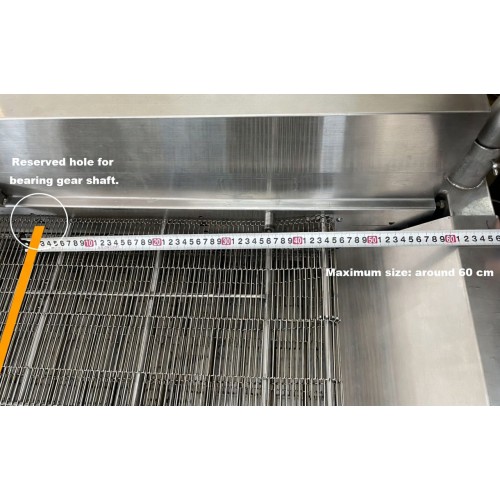

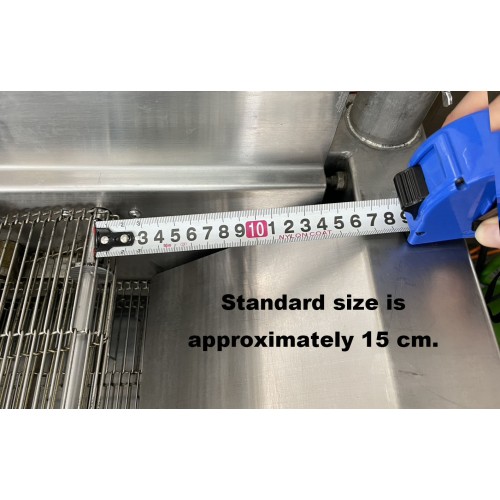

Infeed Gap The gap space can be selected from the following options: standard, medium, or maximum size.

Oil Compatibility Uses all liquid oils; avoid solidifying fats (e.g., coconut oil).

Maintenance & Cleaning

Designed with the operator in mind, featuring a flip-over belt design for complete internal access and a dedicated oil drain integrated for external filter systems.

Technical Specifications: CF-89W

Size	L1650 x W810 x H1660 mm
Fry Zone Length	1030 mm
Fry Zone Width	530 mm (21" Conveyor Width)
Power	220V / 380V / 3PH / 15kW / 18kW
Oil Volume	18L x 5 barrels
Weight	120 kgs / 265 lbs

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: [email protected]

Inline Continuous Fryer CF-89W

Build & Performance

Material Durable, high-quality 304 stainless steel construction for maximum longevity and hygiene.

Customizable Standard 12cm (4.7") belt gap; distance between double conveyors is adjustable upon request to suit specific products

Infeed & Operation

Infeed Gap The gap space can be selected from the following options: standard, medium, or maximum size.

Oil Compatibility Uses all liquid oils; avoid solidifying fats (e.g., coconut oil).

Maintenance & Cleaning

Designed with the operator in mind, featuring a flip-over belt design for complete internal access and a dedicated oil drain integrated for external filter systems.

Technical Specifications: CF-89W

Size	L1650 x W810 x H1660 mm
Fry Zone Length	1030 mm
Fry Zone Width	530 mm (21" Conveyor Width)
Power	220V / 380V / 3PH / 15kW / 18kW
Oil Volume	18L x 5 barrels
Weight	120 kgs / 265 lbs
