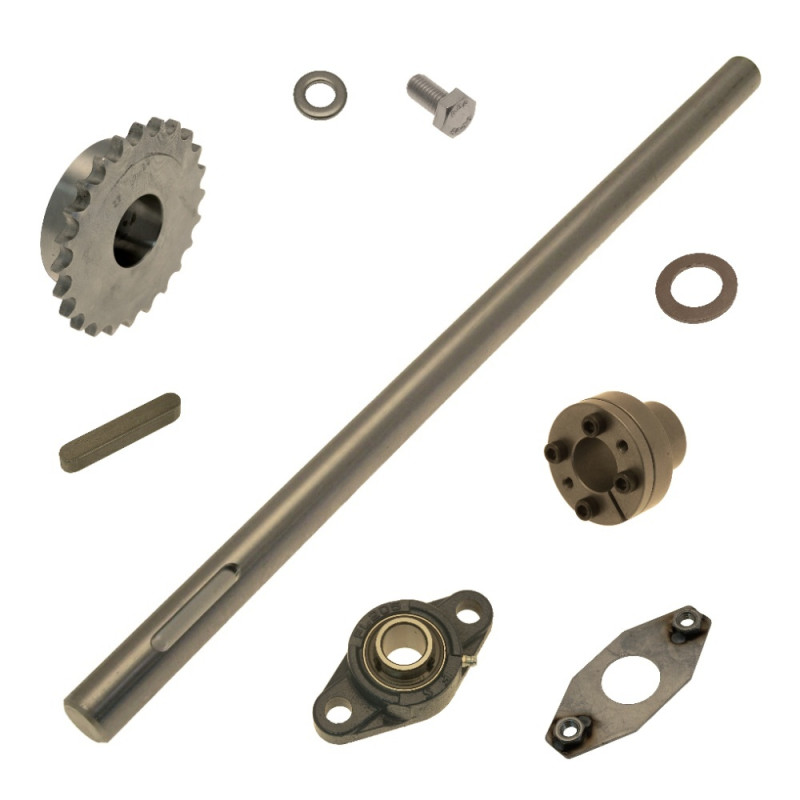

Drive Shaft Exploded View 5 IR56 Injector No. 210 and Higher

Type: F42188
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2411

* Drive Shaft Exploded View 5 IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Shaft Exploded View 5 IR56 Injector No. 210 and Higher

Type: F42188
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2411

* Drive Shaft Exploded View 5 IR 56 No. 210 and higher:
--F21511 Flange bearing
--F42325 Starting sheet
--F27693 Washer
--F20402 Hexagonal bolt
--F29088 Clamping element
--F29087 Shaft
--F20831 Spring key
--101080 Disc
--F29400 Chain wheel

Drive Shaft Exploded View 5 for Ruhle IR56 Meat Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F21511	Flange bearing	UCFL 205	2
2	F42325	Starting sheet	IR 28/56	2
3	F27693	Washer	DIN125 A 10,5	4
4	F20402	Hexagonal bolt	DIN933 M10 x 30	4
5	F29088	Clamping element	kon.RLK 25 x 34	2
6	F29087	Shaft	Ø 25 x 555	1
7	F20831	Spring key	A 8 x 7 x 50	1
8	101080	Disc	Ø 25,5 x 40 x 2,5	1
9	F29400	Chain wheel	Ø 34 Z 24	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Drive Shaft Exploded View 5 for Ruhle IR56 Meat Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F21511	Flange bearing	UCFL 205	2
2	F42325	Starting sheet	IR 28/56	2
3	F27693	Washer	DIN125 A 10,5	4
4	F20402	Hexagonal bolt	DIN933 M10 x 30	4
5	F29088	Clamping element	kon.RLK 25 x 34	2
6	F29087	Shaft	Ø 25 x 555	1
7	F20831	Spring key	A 8 x 7 x 50	1
8	101080	Disc	Ø 25,5 x 40 x 2,5	1
9	F29400	Chain wheel	Ø 34 Z 24	2
