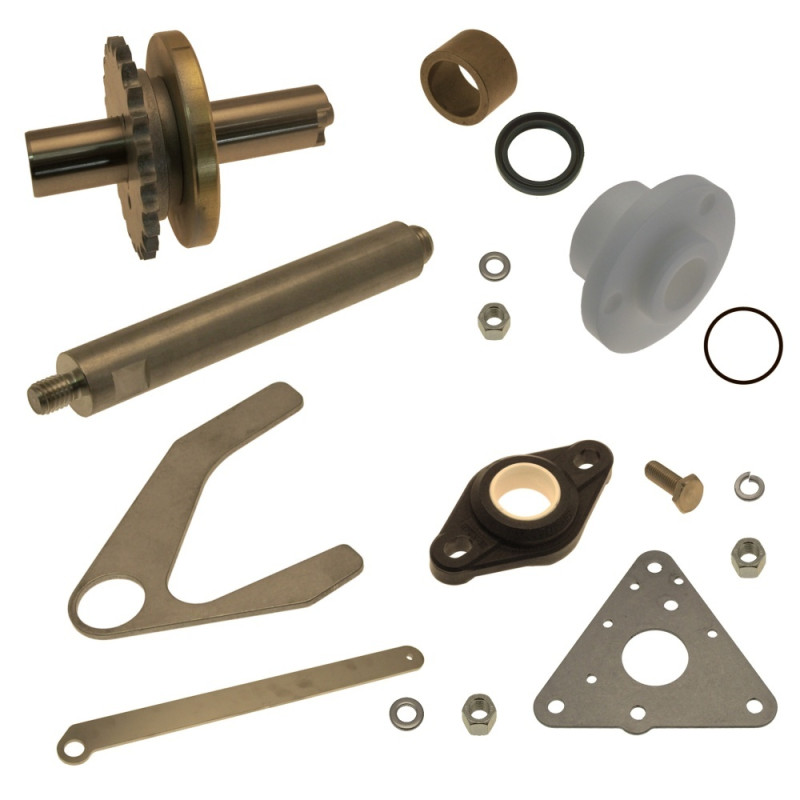

Drive Shaft Exploded View 3 IR56 Injector 210 and Higher

Type: F42171
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2407

* Drive Shaft Exploded View 3 IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Shaft Exploded View 3 IR56 Injector 210 and Higher

Type: F42171
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2407

* Drive Shaft Exploded View 3 IR 56 No. 210 and higher:
--F42332 Flange
--F445629 Drive shaft
--F240924 Shaft
--F29339 Stütze
--F240926 plate / sheet
--101049 bearing
--F27693 Washer
--F20147 Hexagonal nut

Drive Shaft Exploded View 3 Injector IR56

Pos No.	Part No.	Description	Add Info	Required
1	F42332	Flange	IR 56	2
2	F445629	Drive Shaft	IR 56	2
3	F240924	Shaft	Ø 20 x 147	6
4	F29339	Support	424 x 44 x 5	1
5	F240926	Plate / Sheet	122,5 x 97,3 x 3	2
6	F101049	bearing	IR 56	2
7	F27693	Washer	DIN125 A 10,5	6
8	F20147	Hexagonal nut	DIN934 M 10	6

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Drive Shaft Exploded View 3 Injector IR56

Pos No.	Part No.	Description	Add Info	Required
1	F42332	Flange	IR 56	2
2	F445629	Drive Shaft	IR 56	2
3	F240924	Shaft	Ø 20 x 147	6
4	F29339	Support	424 x 44 x 5	1
5	F240926	Plate / Sheet	122,5 x 97,3 x 3	2
6	F101049	bearing	IR 56	2
7	F27693	Washer	DIN125 A 10,5	6
8	F20147	Hexagonal nut	DIN934 M 10	6
