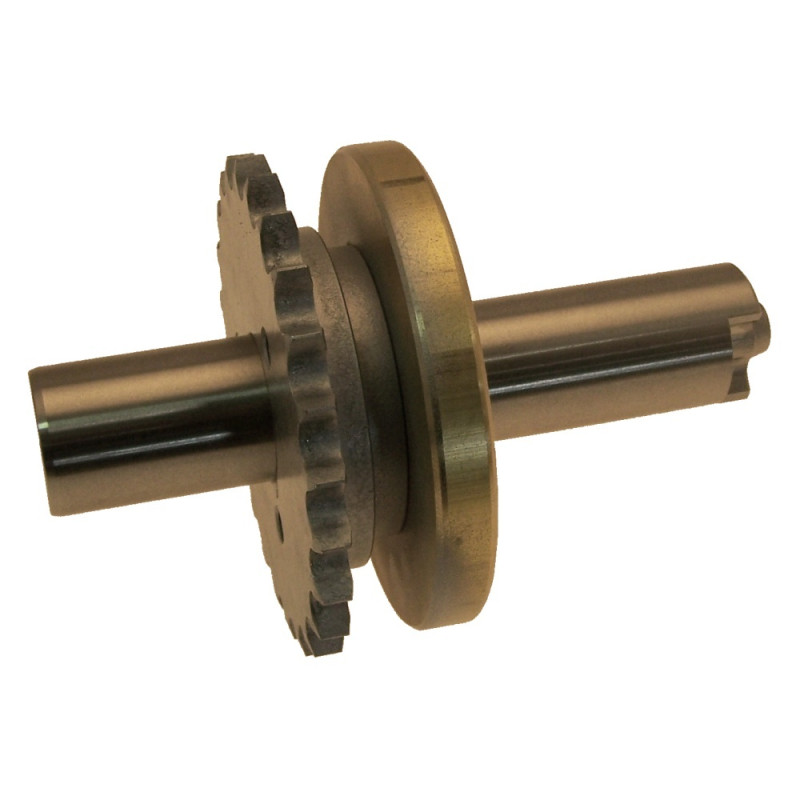

Drive Shaft Exploded View 4 Ruhle IR56 No. 210 and Higher
Type: F445629
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2409
*
Drive Shaft Exploded View 4 IR 56 No. 210 and higher:
--F245630 Shaft
--F245631 Chain wheel
--F245632 Brass disk
--F245635 Cylindrical pin
--F22621 Cylinder head screw
.
Drive Shaft Exploded View 4 Ruhle IR56 No. 210 and Higher
|
Pos No. |
Part no. |
Description |
Add Info |
Required |
 |
1 |
F245630 |
Shaft |
Ø 60 x 155 |
1 |
 |
2 |
F245631 |
Chain wheel |
Ø 30.2 Z 24 |
1 |
 |
3 |
F245632 |
Brass disk |
Ø 30.2 x Ø 100 x 12 |
1 |
 |
4 |
F245635 |
Cylindrical pin |
ISO8734 - Ø 6 m6 x 30 |
1 |
 |
5 |
F22621 |
Cylinder head screw |
DIN912 M 8 x 25 |
3 |
.
