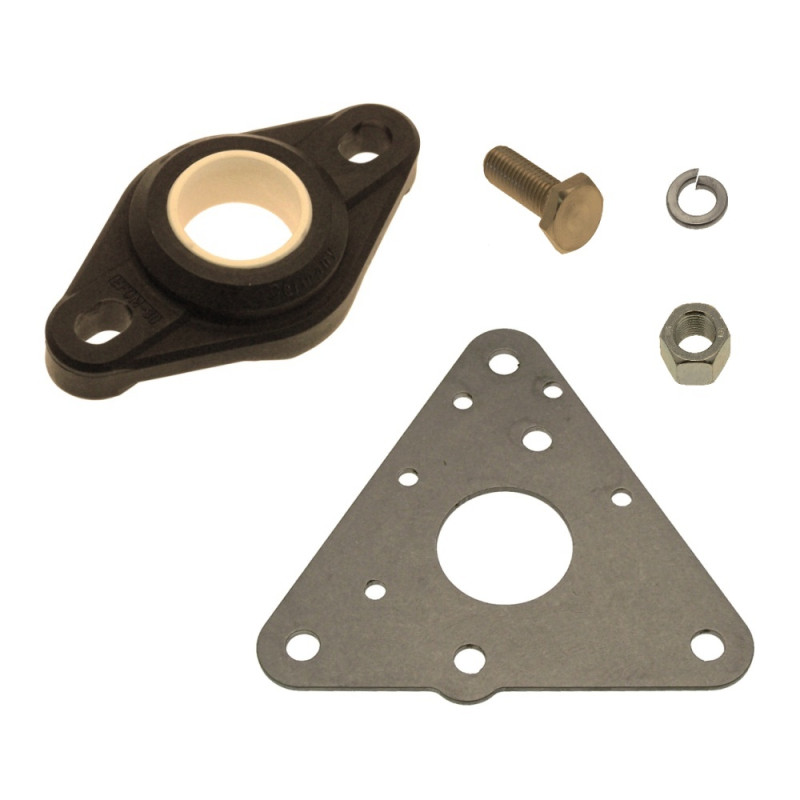

Bearing Exploded View 1 IR56 Injector No. 210 and Higher
Type: 101049
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2410
*
Bearing Exploded View 1 IR 56 No. 210 and higher:
--F240925 plate / sheet
--F29158 Flange bearing
--F20402a Hexagonal bolt
--F26379 Spring lock washer
--F20147 Hexagonal nut
.
Bearing Exploded View for Ruhle Injecting Machine IR56 No. 210 and Higher
|
Pos No. |
Part No. |
Description |
Add Info |
Required |
 |
1 |
F240925 |
Plate / Sheet |
Ø 45 x 160 x 142,5 x 3 |
1 |
 |
2 |
F29158 |
Flange bearing |
EFOM-30 |
1 |
 |
3 |
F20402a |
Hexagonal bolt |
M10 x 30 |
2 |
 |
4 |
F26379 |
Spring lock washer |
DIN127 B 10 |
2 |
 |
5 |
F20147 |
Hexagonal nut |
DIN934 M 10 |
2 |
.
