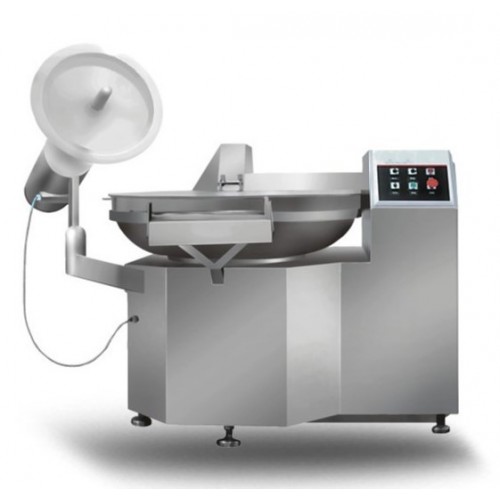

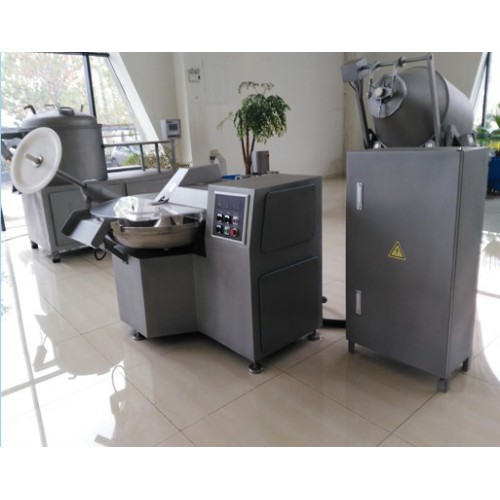

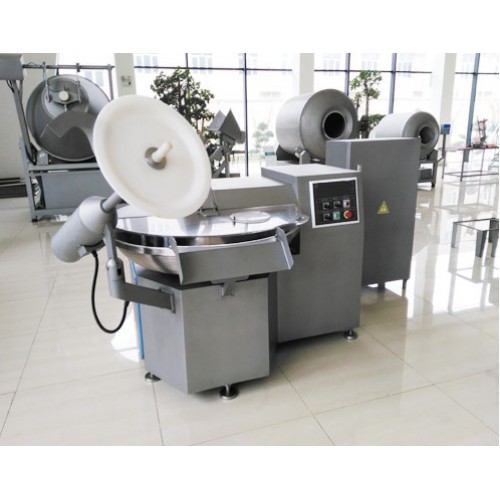

Industrial Meat Bowl Chopper 125L

Heavy Duty Meat Bowl Cutter 125L

This machine can cut and mix meat and auxiliary materials into paste status, also can mix the meat, auxiliary materials and water together evenly. The Bowl Cutter produced by our company has the perfect combination of the cutter speed, pan speed and the distance between the cutters and the revolving pan. With little temperature rise and short cutting time, the machine can produce meat paste with the emulsification, elasticity and smoothness to a maximum extent. The bowl cutter is an ideal machine with features of easy operation, safety and reliability, meeting hygiene requirements.

Features and Advantages

• HACCP standard 304/316 stainless steel
• Auto protection design to make sure safe operation

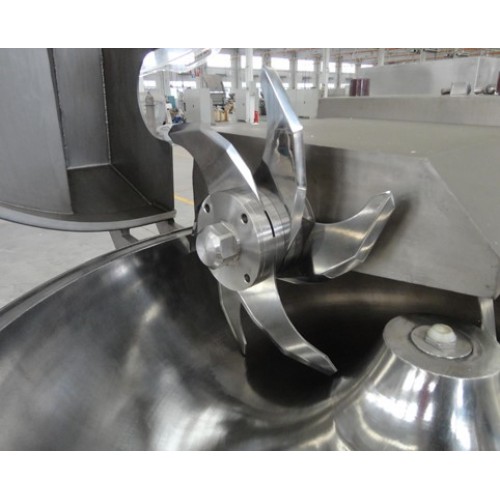

• Distance is less than 2mm between the cutting knife and cutting pot.
• Excellent cutting result due to the best combination of knife and pot speed
• Noise protecting cover noise preventing cover
• Temperature monitoring and little meat temperature changing, benefit to preserve freshness
• Automatic output device and automatic lifting device
• Double seals structure to protect the axis of cutter being rusted and the risk of contaminant in the sausage meat will be avoided.
• Key parts produced by advanced machine processing center, ensure the precision of process.
• Waterproof and ergonomic design to reach IP65 security.
• Hygienic cleaning in short time due to smooth surfaces.
• Vacuum and non-vacuum option for customer
• Also suitable for fish, fruit, vegetable and nut processing.

Technical Specifications:

• Productivity: 100-110 kg
• Volume: 125 L
• Power: 33.2 kw
• Knife Qauntity: 6
• Knife Speed: 300/1500/3000/4500 r/min
• Bowl Speed: 7-11 r/min
• Unloader Speed: 88 rpm
• Machine DImension: 2100x1420x1600 mm
• Machine Weight: 2000 kg
