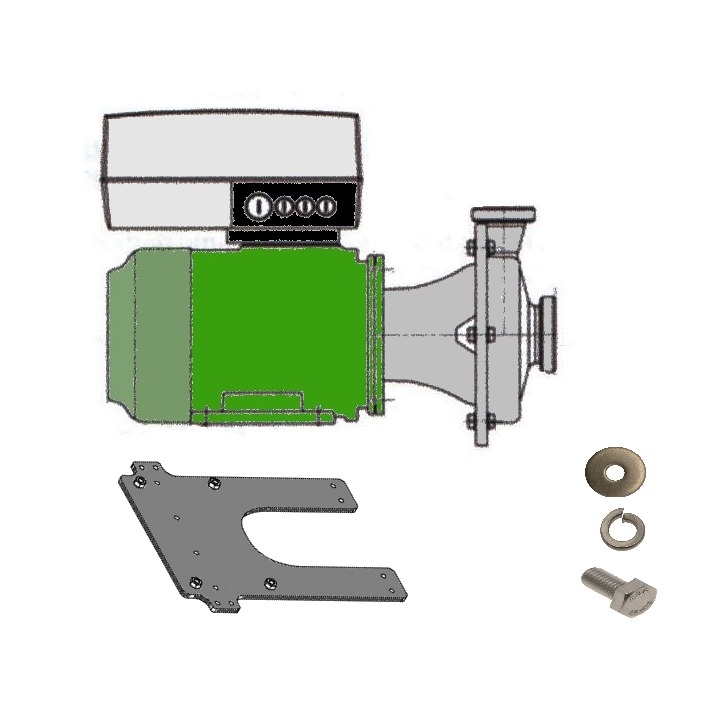

Main Pump Assembly Ruhle IR112 Injector

Type: F449471
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2171

* Main Pump Assembly IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Main Pump Assembly Ruhle IR112 Injector

Type: F449471
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2171

* Main Pump Assembly IR 112:
--F252433 Angle inside-to-outside
--F252447 Screw joint
--F250159 Hose socket
--F252740 Sealing ring
--F252739 Sealing ring
--F453564 Housing
--F22907 Disc
--F26379 Spring lock washer
--F20588 Hexagonal bolt
--F252772 Main pump with FC IR112
--F20948 Cable gland
--F29057 Cable gland

Main Pump Assembly Ruhle IR112 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F252433	Angle inside-to-outside	90° FG 2324 3/4"	1
2	F252447	Screw joint	3/4"	1
3	F250159	Hose socket	R 3/4" FG 30 2420	1
4	F252740	Sealing ring	DN 50	1
5	F252739	Sealing ring	DN 65	1
6	F453564	Housing	IR 112	1
7	F22907	Disc	Ø 10,5 x Ø 35 x 3	4
8	F26379	Spring lock washer	DIN127 B 10	4
9	F20588	Hexagonal bolt	DIN933 M10 x 40	4
10	F252772	Main pump with FC IR112	FP2/40-185/752 (0/205)	1
11	F20948	Cable gland	M 16 x 1.5	2
12	F29057	Cable gland	M 25 x 1.5	1
