- Stock: On order
- Brand: CM-HM-CN
- Type: Belt width 400 mm

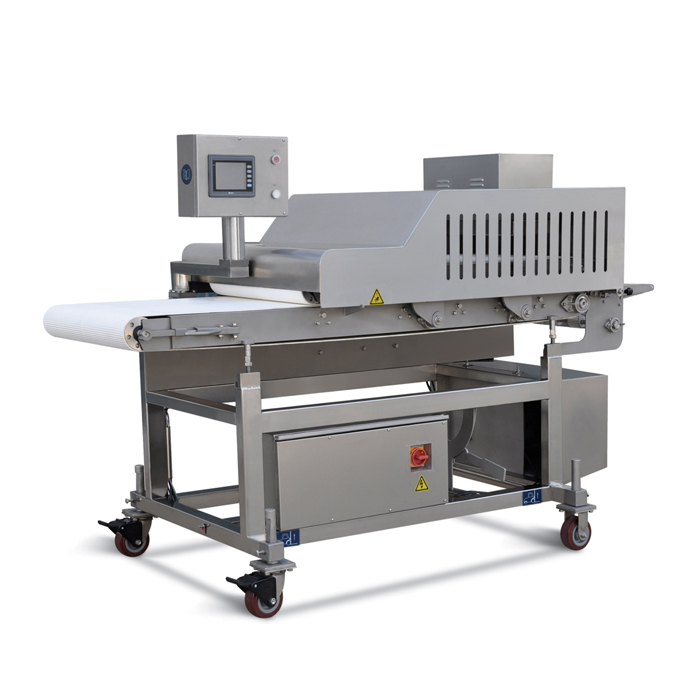

Automatic Digital Meat Flattening Machine 400mm
The industrial-grade Automatic Digital Meat Flattening Machine 400mm is a state-of-the-art volumetric processing system engineered to deliver flawless portion consistency and structural uniformity across active food production lines. If you are filtering through local listings for a high-efficiency meat flattening machine in Ontario Canada or trying to invest in the absolute best meat flattening machines near me, this digitized system stands out as a premier asset. Functioning as an automated meat flattener and heavy-duty meat press machine near me selection, it utilizes a dual-belt counter-rolling assembly to increase product surface area cleanly without tearing vital fibers. Slicing fresh or half-frozen cuts under controlled compression ensures identical cooking rates, significantly reduced frying intervals, and enhanced marinade retention, making it perfect for high-demand lines producing premium chicken schnitzels and uniform fish fillets.
- Digital Touch Screen Interface: Outfitted with an interactive centralized PLC touch screen panel to allow instant operators overrides and smart parameter tracking.
- Automated Thickness Adjustment: Features advanced digital servo adjustments where the target flattening thickness gaps calibrate automatically to your pre-set product recipe values.
- Hygienic Anti-Sticking Sprinkler: Built-in water sprinkling manifold deposits a microscopic moisture layer onto the belts, preventing sticky or delicate protein masses from adhering or tearing.
- High-Traction Conveyor Tracks: Engineered with a specialized anti-slippery conveyor belt texture to ensure constant, linear product tracking under intensive compression loads.
- Continuous Line Integration: Designed with exceptional upstream connectivity; can be combined directly inline with a mechanical meat tenderizer to establish a continuous, high-volume automated processing system.
- Toolless Cleaning Teardown: Quick-release modular conveyor belts can be completely detached within seconds without tools, drastically shortening sanitation turnaround times.
- Strict HACCP & Safety Compliance: Fabricated entirely from premium food-grade stainless steel and engineering plastics, powered by premium CE-approved SIEMENS electrical apparatuses.
This automated flattening system is masterfully optimized for processing a vast spectrum of consumable products down to uniform, precise target thickness tolerances. It delivers exceptional processing results across all kinds of poultry (breasts, cutlets, nuggets), beef steaks, pork cutlets, fresh fish fillets, processed block cheese, and other responsive food products with a raw entry thickness under 30 mm.
| Operational Conveyor Belt Width | 400 mm |
| Conveyor Tracking Speed | 3 ~ 15 meters per minute (Fully Adjustable VFD Control) |
| Digitized Flattening Thickness Range | 5 - 30 mm (Automatically Calibrated) |
| Total Motor Drive Power | 3.05 kW High-Torque Smart Drive |
| Electrical Connection Profile | 220V / 60Hz / 3Ph (Alternative global voltage parameters provided upon factory order) |
| Overall 400mm Model Size (L x W x H) | 2300 mm × 1400 mm × 1500 mm |
| Overall 600mm Variant Size (L x W x H) | 2300 mm × 1400 mm × 1500 mm |
* Note: The heavy-duty architectural design of this digital texturing flattener combines an automated pressure path with rapid, toolless cleaning loops, delivering low maintenance costs and complete code compliance under continuous commercial processing shifts.
