Nock Open Top Fish Skinning Skinex S 460
Country of Origin: Germany
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8125
Brochure

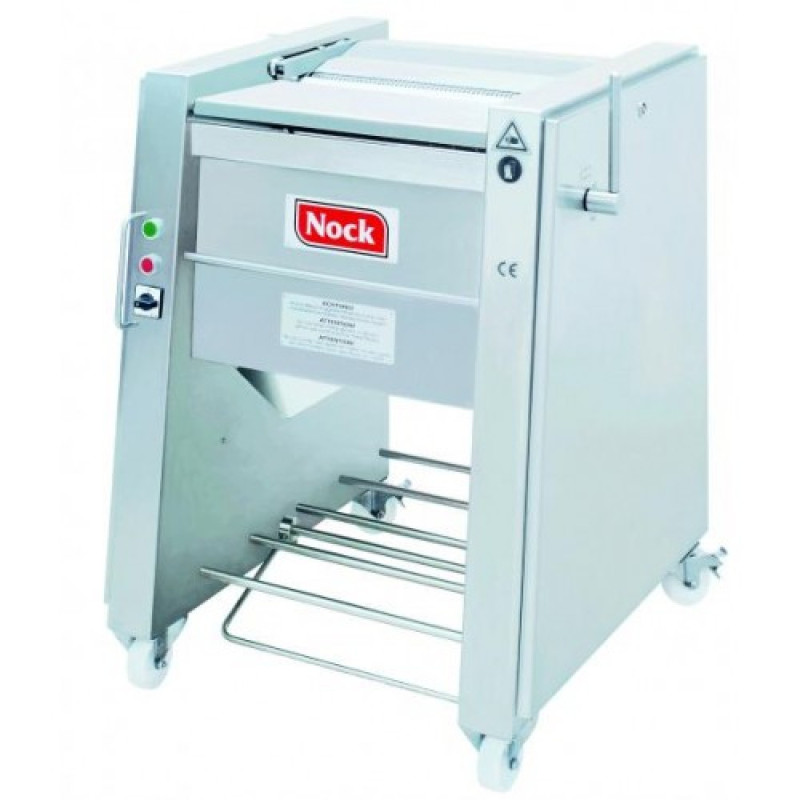

Nock Skinex S 460 Open Top Fish Skinning Machine
The German-engineered Nock Open Top Fish Skinning Skinex S 460 sets the premium global standard in open-surface material recovery, meticulously built to process thin-skinned species with near-zero product giveaway. If your commercial plant floor, processing plant, or industrial fish kitchen is source-matching an ultra-reliable commercial fish skinner, looking to acquire a robust manual-feed skinning machine, or deploying an elite nock skinner line asset, evaluating the Nock Skinex S 460 Canada edition delivers an unrivaled competitive edge. Widely recognized as the absolute best fish skinning machine for delicate whitefish fillets, this versatile machine handles thin skin layers flawlessly. Its open-top design grants operators unrestricted movement to position and flip products, making it perfect for maximizing profit margins on high-value fish processing runs.
???? 3 Adaptable Seafood Skinning Variations
The Skinex S 460 platform features high cutting adaptability, letting operators manually step through three primary industrial processing formats to meet distinct retail yields:
- Low-Loss Thin Skinning (Shallow): Utilizes sharp blade tracking mapped to precise micro-tolerances to cut away only the epidermis, protecting valuable fillet weights.
- Silver Skinning (Pulling-Off): Configures a specialized blunt blade array to softly strip skin cleanly away from the underlying membrane, leaving a flawless, shimmering silver tissue finish.
- Industrial Deep Skinning (Restricted): Employs sharp blade edges to smoothly trim away skin along with the dark side lateral muscle layer to deliver uniform, single-color portions.
- Groove-Free S-Technology Roller: Marine-grade AISI 316L stainless steel transport cylinder operates completely without peripheral grooves, running in tandem with a counter-rotating dynamic cleaning roller to maintain steady fillet grip and prevent muscle tearing.
- Flexible Species Diversity Scope: Expertly optimized for low-loss skinning of thin-skinned varieties (including tilapia, basa/pangasius, trout, cod, catfish, and squid) alongside specialized flatfish (like plaice and sole).
- Steady-Flow Water Cleaning Unit: Built-in water wash manifold continuously flushes away surface slime, blood lines, and fine scales to preserve roller traction during continuous runtime blocks.
- Ergonomic Safety Foot Switch Bar: Flat, wraparound safety foot switch bar is fully height-adjustable to maximize worker ergonomics and enable immediate machine shutoff from any operating angle.
- 15mm NOCK POWER PLATES®: Critical internal mechanical drive linkages are bolted directly onto solid structural steel plates to ensure permanent alignment precision and ultra-quiet shop floor operation.
| Active Cutting Width Clearance | 430 mm Clear Open-Top Track |
| Operational Linear Skinning Speed | 29 meters / minute Controlled Safety Flow |
| Blade Gap Sizing Bounds | 0 to 0.5 mm High-Precision Infinitely Adjustable Matrix |
| Hygienic Water Grid Connection | G ¼" Internal Pipe Thread Fitting |
| Operational Water Flow Consumption | ≈ 100 Liters / hour Utility Intake |
| Main Motor Drive Performance | 0.75 kW High-Torque Waterproof Drive Engine |
| Electrical Connection Grid Target | 3 AC • 400 V • 50 Hz • 3-Phase Standard (Other voltage setups available) |
| Physical Equipment Size (W × H × D) | 750 × 960 × 750 mm |
| Equipment Structural Net Weight | 160 kg (~352.7 lbs.) High-Stability Mechanical Footprint |
- NOCK Immediate Cut-Out (ICO) Safety System: Advanced sensory electronic safety braking loop that provides unrivaled operator protection during live manual blade adjustments.
- Specialized Herring Processing Equipment: Retrofit sub-assemblies tuned specifically to skin hyper-fragile herring fillets with minimal structural yield fracturing.
- Alternative Cylinder Toothing Arrays: Custom transport rollers can be specified with alternate coarse or extra-fine tooth tracking matrices to match unique fish profiles.
- Precision Feed Guide Unit: Specialized loading guide block engineered to secure small or short fish pieces safely against the knife edge.
* Note: Manufactured completely from sanitary food-grade stainless steel with watertight bearings and lockable castors. The spring-suspended blade holder eliminates loose adjustments, allowing your floor crew to execute effortless cleanup cycles while maintaining absolute compliance with local regulatory food safety guidelines.
