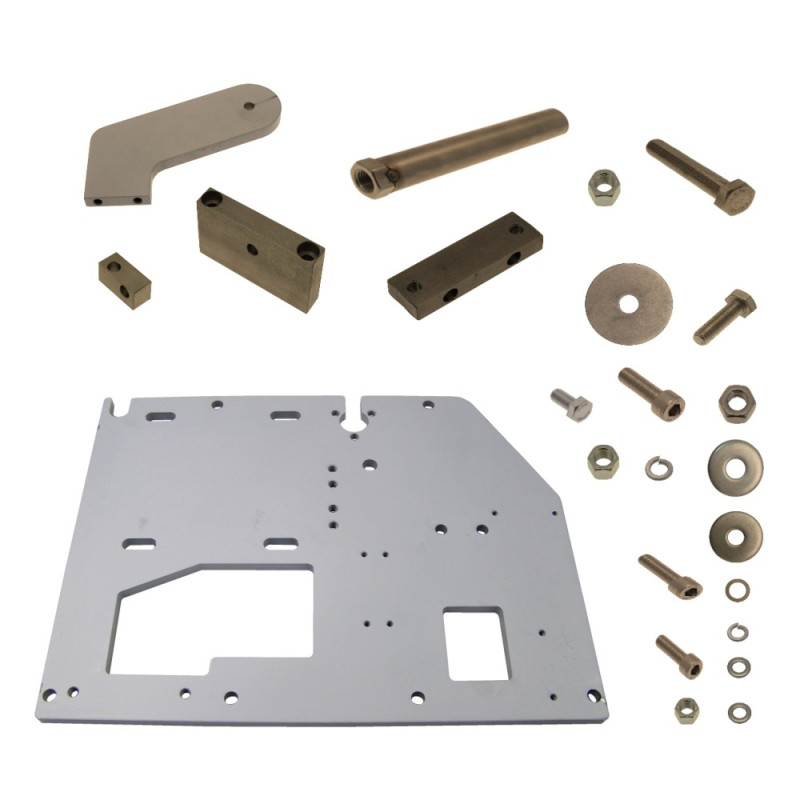

Plate Drive Complete Ruhle SR2 Turbo

Type: 103750-1et
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 676
* Plate Drive:

Plate Drive Complete for Ruhle SR2 Dicer

  Pos No. Part No. Description Add Info Required
F26906 1 F26906 Plate 480 x 370 x 12 1
F20202 2 F20202 Washer DIN125 A 13 4
F20204 3 F20204 Hexagonal nut DIN934 M 12 4
F26907 4 F26907 Housing 45 x 20 x 20 2
F27693 5 F27693 Washer DIN125 A 10,5 19
F25962 6 F25962 Cylinder head screw DIN912 M10 x 30 2
F26379 7 F26379 Spring lock washer DIN127 B 10 21
F26908 8 F26908 Bracket 116 x 60 x 20 1
F28109b 9 F28109b Compensating disc Ø 12 x Ø 18 x 0,5 4
F28773 10 F28773 Cylinder head screw DIN912 M10 x 70 2
F22907 11 F22907 Washer Ø 10,5 x Ø 35 x 3 2
F23646 12 F23646 Disc Ø 12,5 x Ø 35 x 4 2
F20210 13 F20210 Spring lock washer DIN127 A 12 2
F26910 15 F26910 Plate 100 x 30 x 15 1
F21807 16 F21807 Cylinder head screw DIN912 M10 x 60 2
F20047 17 F20047 Hexagonal nut DIN439 M 10 2
F20693 18 F20693 Hexagonal bolt DIN933 M10 x 35 2
F27226 19 F27226 Disc Ø 11 x Ø 50 x 5 1
F26909 20 F26909 Bracket 206 x 150 x 15 1
F20402 21 F20402 Hexagonal bolt DIN933 M10 x 30 2
F42237 22 F42237 Support SR 2 Turbo 1
F22276 23 F22276 Hexagonal bolt DIN933 M20 x130 1
F20204 24 F20563 Hexagonal nut DIN934 M 20 3
