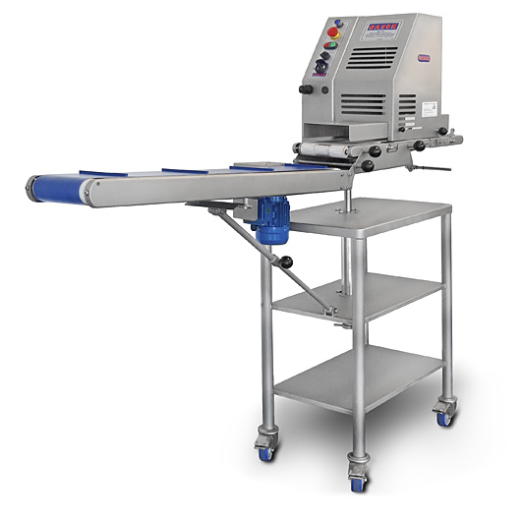

Automatic Portioning Machine PNT-120 for Fillers

Country of Origin: Spain
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 30 X 25 X 25
Shipping Weight: 200 lbs
CM: 7929
Financing Available
Note: Shipping to be determined
Shaper Outlet for Meatbrick:




Shaper Outlet for Cylinder:


Enter product diameter for cylinder outlet:

Other Accessories:




Gaser Automatic Portioning Machine with Leg and Outlet Belt - PNT-120 for Fillers

Specifications:

  • Made in stainless steel.
  • Tractional inner belt with adjustable inclination and speed.
  • Outlet belt one meter long and adjustable height.
  • Portions are adjustable when changing the length or changing the nozzle.
  • Uses paper in rolls.
  • Perfect presentation of product.
  • Automatic cutting of paper and portion of meat.

Technical Data:

  • Pneumatic operation (6kg / cm2).
  • Air consumption 10 liters per minute.
  • Electrical power: maximum 370 watts.
  • Voltage: 110V 60Hz 1Ph
  • Measurements: 470 x 360 x 600 mm.
  • Weight: 69kg.
  • Shipping Weight: 51 lbs.
  • Shipping Dimension: 20 x 11 x 16 inches

Different Shaper or Connector Options:

  • These connectors can shape mincemeat into meat bricks or cylinders (with paper support)

Connected to Filler for Meat Brick Outlet:

  • The width of shaper option must be within the standard measurements of 90mm, 100mm and 115mm.

Connected to Filler for Cylinder Outlet:

  • The width of the shaper option is 115mm and number of holes depends on the diameter of the cylinder(product) which has to be specified by customer.

Paper Rolls:

  • The machine needs to work with paper rolls, which are of 108mm width or 120mm width.
  • For meat brick output paper size must be bigger than width of the meat brick output.
  • For free flow output paper size, it can be smaller than the width of the free-flow output.
  • Note: 24 Rolls per Box
