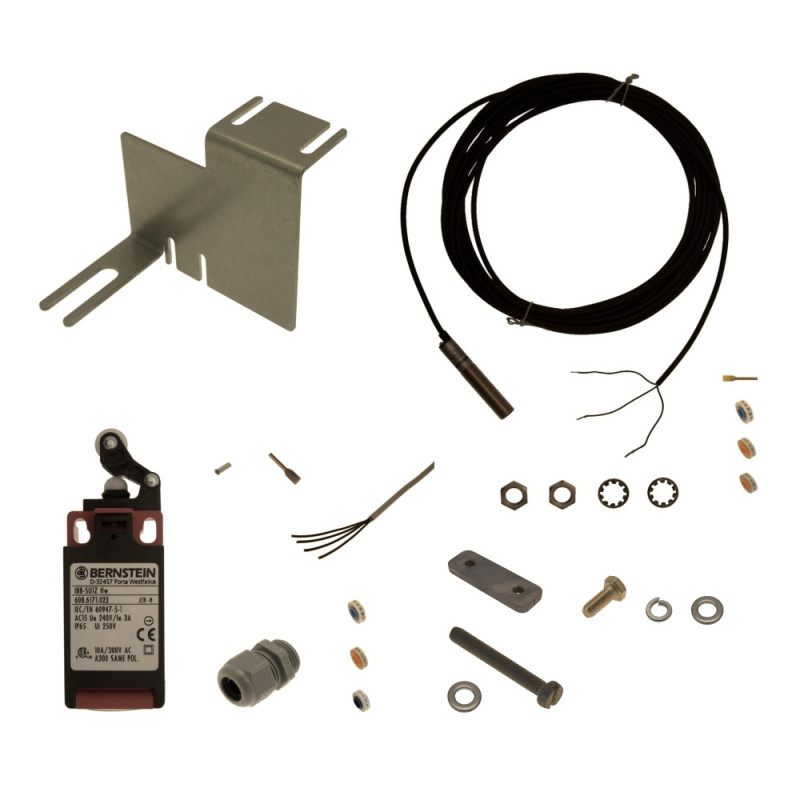

Sensor unit exploded view 4 Ruhle SR2 No. 435

Type: 103804
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 924

Note: Shipping to be Determined.

* Sensor unit exploded view 4 SR2-Turbo No. 435:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Sensor unit exploded view 4 Ruhle SR2 No. 435

Type: 103804
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 924

Note: Shipping to be Determined.

* Sensor unit exploded view 4 SR2-Turbo No. 435:
--F26513 Bracket
--F20569 Cylinder head screw
--F20570 U-Scheibe
--F26346 Plate / Sheet
--F20417 Hexagonal bolt
--F24031 Spring lock washer
--F20258 Washer
--F29058 Cable gland
--F28791 Cable
--F20737 Limit switch
--F27081 Initiator

Sensor unit exploded view 4 for Ruhle SR2 Turbo

Pos No.	Part No.	Description	Add Info	Required
1	F26513	Bracket	114,5 x 113,5 x 97 x 2,5	1
2	F20569	Cylinder head screw	DIN84 M 4 x 30	2
3	F20570	Washer	DIN125 A 4,3	2
4	F26346	Plate / Sheet	36 x 12 x 4	1
5	F20417	Hexagonal bolt	DIN933 M 6 x 16	2
6	F24031	Spring lock washer	DIN127 B 6	2
7	F20258	Washer	DIN125 A 6,4	2
8	F29058	Cable gland	M 20 x 1.5	1
9	F28791	Cable	ÖZ-O 4x0.75 mm²	3650
10	F20737	Limit switch	I88-SU1Z Hw	1
11	F27081	Initiator	KIN-M12PS/004 KL6	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: [email protected]

Description

Sensor unit exploded view 4 for Ruhle SR2 Turbo

Pos No.	Part No.	Description	Add Info	Required
1	F26513	Bracket	114,5 x 113,5 x 97 x 2,5	1
2	F20569	Cylinder head screw	DIN84 M 4 x 30	2
3	F20570	Washer	DIN125 A 4,3	2
4	F26346	Plate / Sheet	36 x 12 x 4	1
5	F20417	Hexagonal bolt	DIN933 M 6 x 16	2
6	F24031	Spring lock washer	DIN127 B 6	2
7	F20258	Washer	DIN125 A 6,4	2
8	F29058	Cable gland	M 20 x 1.5	1
9	F28791	Cable	ÖZ-O 4x0.75 mm²	3650
10	F20737	Limit switch	I88-SU1Z Hw	1
11	F27081	Initiator	KIN-M12PS/004 KL6	1
