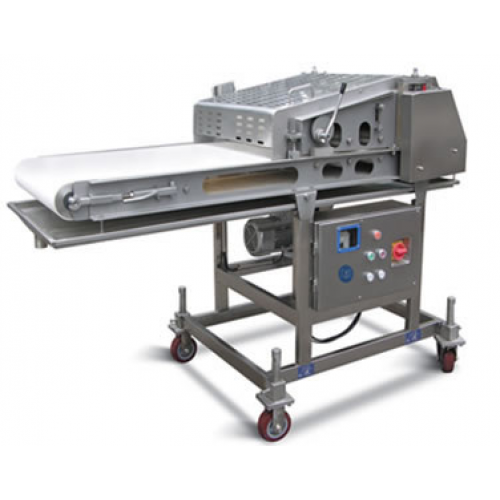

Meat Flattening Machine 600 mm Belt Width

The industrial-grade **CM600-II Meat Flattening Machine** represents the pinnacle of automated high-capacity texturing, purpose-built to deliver ultimate portion uniformity across commercial processing environments. If your facility is looking to implement an efficient **automatic flattening machine near me** or trying to source the absolute most reliable **chicken breast flattening machines in Ontario Canada**, this heavy-duty workhorse delivers outstanding line integration. Functioning as a high-volume **meat flattener** and multi-purpose **meat flattening machine**, it is outfitted with 4 precision-ground pressure rollers that flatten fresh or semi-frozen cuts effortlessly. Expanding the surface area of your products ensures a highly uniform cooking time, minimized frying intervals, and enhanced marinade absorption, establishing it as a vital asset for processors, commercial butchers, and large-scale industrial kitchens.

Key Features & Technical Advantages
  • 4-Roller Pressure Array: Leverages a series of four heavy-duty structural rollers to apply smooth, even compression across various fresh or half-frozen products.
  • Hygienic Water Spray System: Features an integrated fine-mist water spray mechanism to keep sticky or delicate protein fibers from adhering to the moving conveyor belt.
  • Advanced Operator Protection: Built-in multi-layered safety guard shields and automatic cutoff protection systems ensure maximum security for your processing line crew.
  • Robust Stainless Steel Chassis: Fabricated entirely from food-grade stainless steel to deliver reliable performance, exceptional wear resistance, and quick, chemical-resistant washdown cycles.
  • Smart Automation Connectivity: Offers exceptional cross-connectivity to factory automation layouts; can be paired seamlessly inline with an industrial meat tenderizer to build a customized, high-output production line.
Optimized Product Application Range

This industrial meat processing equipment is masterfully optimized for the continuous flattening of boneless proteins and dense food products up to a maximum thickness of 30 mm. It delivers excellent structural processing uniformity across all kinds of poultry (including high-volume chicken flattener tasks), pork slices, beef primals, sliced potatoes, block cheese, and fresh fish fillets. It remains highly efficient when processing semi-frozen ingredients maintained down to approximately -4°C.

Technical Product Specifications
Conveyor Belt Width 600 mm
Conveying Tracking Speed 3 ~ 15 meters per minute (Variable Frequency Speed Control)
Flattening Thickness Range 3 - 30 mm
Motor Drive Power Output 1.5 kW High-Torque Engine
Electrical Power Profile 220V / 60Hz / 3Ph (Other global voltages provided upon factory order)
Overall Dimensions (L x W x H) 2135 mm × 915 mm × 1320 mm
Assembled with High-Grade Components from Renowned International Suppliers
Premium Electronics and Hardware Parts from International Suppliers

* Note: The heavy-duty architectural design of the CM600-II is explicitly optimized for seamless chemical washdown hygiene, utilizing premium food-grade stainless alloy plates to avoid product buildup and meet strict regulatory codes.
