Hard Bone Pre-breaker

Type: Capacity: 300-500 kg/hr.
Ships from: FOB Brampton, Ontario, Canada
U/M: Each
Stock: On Order
CM: 8634
Financing Available
Note: Shipping to be determined

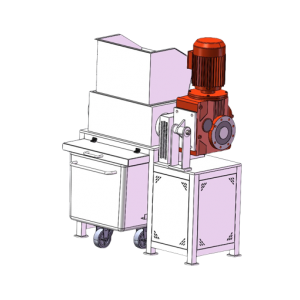

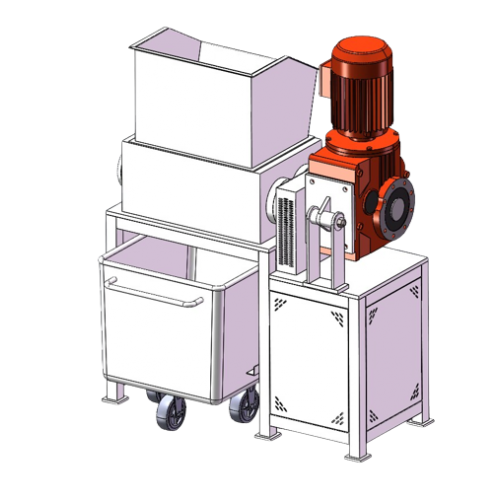

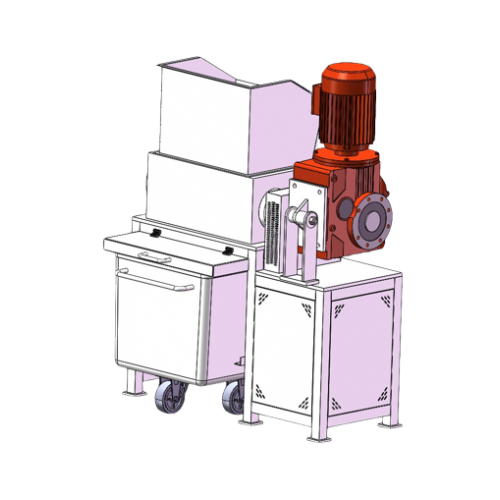

Industrial Hard bone pre-breaker

This machine is ideal for all type of bones, it is our Stage 1 primary starter in our Bone Crsuhing and grinding Process.

Stage 2 is our  Bone Crusher Combi grinder machine.

This machine can pre-break large bones upto 431mm in length to output range of 30 -80 mm perfect for further processing for our Bone Crusher grinder for faster and most efficient production.

The pre-breaker can be customised to work with inclined conevyor system for transferring pre crushed bones automatically to our Bone Crusher grinder hopper.

Types of Bones:

  • Fresh or frozen
  • Beef Femur bone
  • Sheep bone
  • Fish bone
  • Chicken bone
  • Goat bone
  • Donkey bone
  • Deer bone
  • Beaver bone
  • Bison bone
  • and more...


  • Motor: 5.5kW
  • Material of Knifes and Shaft: S440C Stainless Steel
  • Hardness of Material: 53-54 HRC
  • Material of cavity, silo and frame: SS304 stainless steel
  • Material of Motor casing: SS304 Stainless Steel
  • Material of Control cabinet: explosion proof and waterproof SS304 Stainless Steel
  • Power: 220V 60Hz 3Ph (other powers available on request)

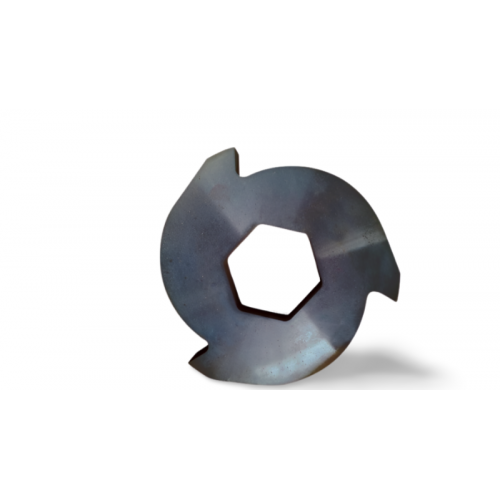

  • Crusher blade thickness: 30mm
  • Crusher blade type: 3 hooks

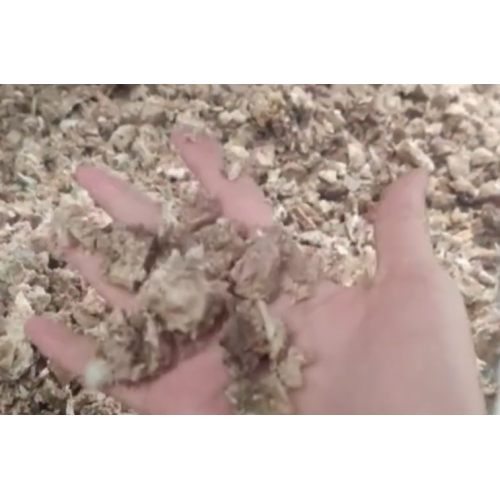

  • Product output size range: 30 - 80mm
  • Output capacity: 300-500 kg/hr. (660-1100 lbs.)
  • Suitable for bone length of 431mm (16.9 inches)
