Continuous Belt Line Fryers CF-90

Type: Frying Time: 40s-28m
Country of Origin: Taiwan
Ships from: FOB Brampton, Ontario, Canada
U/M: Each
Stock: On Order
HTS Code:8419.81.9040
CM: 8641

Financing Available

* Power Option:

* Electrical Certification:

* Required Frying Time for CF-90/90W:

* Accessories for Fryers:

		Cover with Exhaust
		Oil Separators Filter
		Oil Filter Papers(1 carton)
		Belt Made For Doughnut Frying

* Conveyor Belt Type:

		T-Shape (Standard) for bigger products
		Cross Shape for smaller products 12 mm
		Cross Shape for smaller products 5 mm

* Product Size and Weight:

* Kind of Product:

* Production units/ hour:

* Type of Frying Oil:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Continuous Belt Line Fryers CF-90

Type: Frying Time: 40s-28m
Location: FOB Brampton, Ontario, Canada
U/M: Each
Stock: On Order
HTS Code:8419.81.9040
CM Product Code: 8641

Financing Available

* Power Option:
--220V 60Hz 3Ph
--480V 60Hz 3Ph

* Electrical Certification:
--Standard - Conforms to CE or CE marking
--Optional - CSA SPE-1000 for Canada
--Optional - TUV/UL For U.S.A.

* Required Frying Time for CF-90/90W:
--From 40 secs To 2 min 40 secs
--From 1 min 7.5 secs To 4 min 30 secs
--From 1 min 45 secs To 7 mins
--From 3 min 30 secs To 14 mins
--From 7 min To 28 mins

* Accessories for Fryers:

		Cover with Exhaust
		Oil Separators Filter
		Oil Filter Papers(1 carton)
		Belt Made For Doughnut Frying

* Conveyor Belt Type:

		T-Shape (Standard) for bigger products

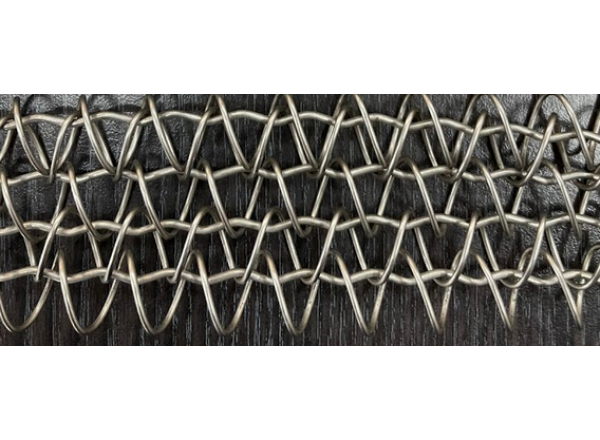

		Cross Shape for smaller products 12 mm

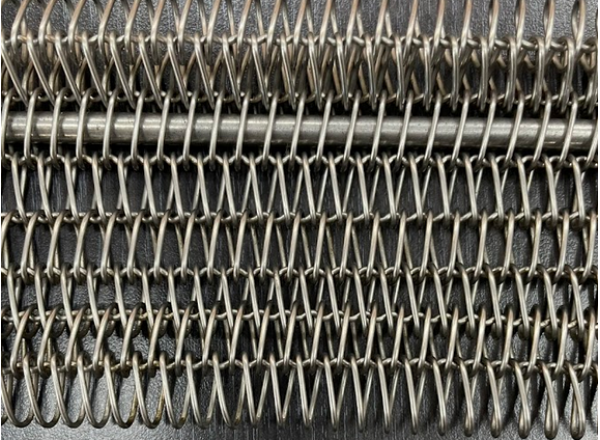

		Cross Shape for smaller products 5 mm

* Product Size and Weight:

* Kind of Product:

* Production units/ hour:

* Type of Frying Oil:

Inline Continuous Fryer CF-90

Build & Performance

Material Durable, high-quality 304 stainless steel construction for maximum longevity and hygiene.

Customizable Standard 12cm belt gap, adjustable upon request.

Infeed & Operation

Infeed Gap The gap space can be selected from the following options: standard, medium, or maximum size.

Oil Compatibility Uses all liquid oils; avoid solidifying fats (e.g., coconut oil).

Maintenance & Cleaning

Designed with the operator in mind, featuring a flip-over belt design for complete internal access and a dedicated oil drain integrated for external filter systems.

Technical Specifications: CF-90

Size	L2580 x W740 x H1660 mm
Fry Zone Length	1900 mm
Fry Zone Width	330 mm
Power	220V or 380V / 24000W / 30000W
Oil Volume	18L x 7 barrels
Weight	150 kgs

Note: Power can be accommodated to North American standards via step-down transformer.
