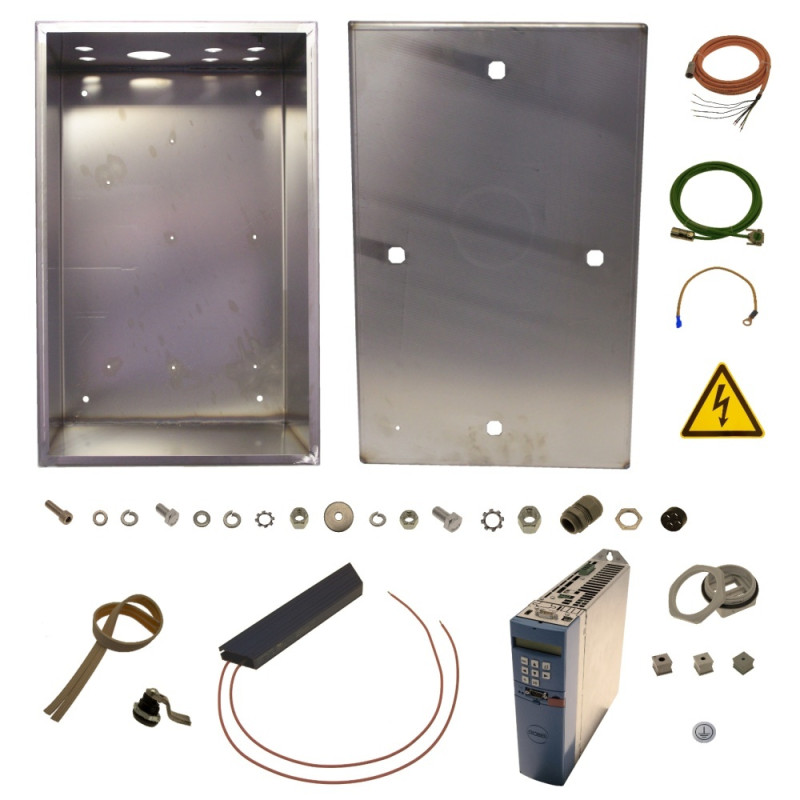

Switch Box Assembly Ruhle SR3 Lifting Unit No. 70 and Higher
- Stock: On order
- Brand: Ruhle
- Type: 106673
Switch Box Assembly Ruhle SR3 Lifting Unit No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 106686 | Switch box | SR 3 | 1 |
 |
2 | F20266 | Cylinder head screw | DIN912 M 5 x 10 | 4 |
 |
3 | F21045 | Washer | DIN125 A 5,3 | 2 |
 |
4 | F20260 | Spring lock washer | DIN127 B 5 | 2 |
 |
5 | F26993 | Hexagonal bolt | DIN933 M 5 x 10 | 2 |
 |
6 | F20258 | Washer | DIN125 A 6,4 | 2 |
|
7 | F24031 | Spring lock washer | DIN127 B 6 | 2 |
 |
8 | F28732 | lock washer | DIN6797-A ø 6,4 | 2 |
 |
9 | F20203 | Hexagonal nut | DIN934 M 6 | 2 |
 |
10 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 4 |
|
11 | F21260 | Spring lock washer | DIN127 B 8 | 4 |
|
12 | F20259 | Hexagonal nut | DIN934 M 8 | 4 |
 |
13 | 106689 | Lid | 560 x 356 x 18 x 2 | 1 |
 |
14 | F20664 | Seal | 18 x 3 | 628mm |
|
15 | F20664 | Seal | 18 x 3 | 1108mm |
 |
16 | 105860 | Bolt lock | IR 56 | 4 |
|
17 | F25910 | Hexagonal bolt | DIN933 M 5 x 25 | 1 |
|
18 | F21045 | Washer | DIN125 A 5,3 | 3 |
|
19 | F20260 | Spring lock washer | DIN127 B 5 | 1 |
|
20 | F26336 | lock washer | DIN6797-A Ø 5,3 | 1 |
|
21 | F21028 | Hexagonal nut | DIN934 M 5 | 2 |
 |
22 | F247515 | Servo converter | MDS 5075/L | 1 |
 |
23 | F252053 | Power cable servo drive | 5m orange with 1 connector | 1 |
 |
24 | F252054 | Control cable servo drive | 5m green with 2 plugs | 1 |
 |
25 | F29057 | Cable gland | M 25 x 1.5 | 6 |
 |
26 | F29060 | Hexagonal nut | M 25 x 1,5 | 6 |
 |
27 | F26132 | Sealing ring | M 25 / 4 x 6 mm | 1 |
 |
28 | F251999 | Cable gland | KVT63-4, grey | 1 |
 |
29 | 104916 | Cable sleeve | KT 8, grey | 1 |
 |
30 | F252000 | Cable sleeve | KT 4, grey | 2 |
 |
31 | F252001 | Cable sleeve | KT 4, grey | 1 |
 |
32 | F148541 | Sticker | BMK02 | 3 |
 |
33 | F10131 | Sticker | flash | 1 |
 |
34 | 106676 | ground wire | lid - SK 2 SR 3 | 1 |
 |
35 | F248535 | Brake resistance | VHPR 300 Ohm/150 W | 1 |
