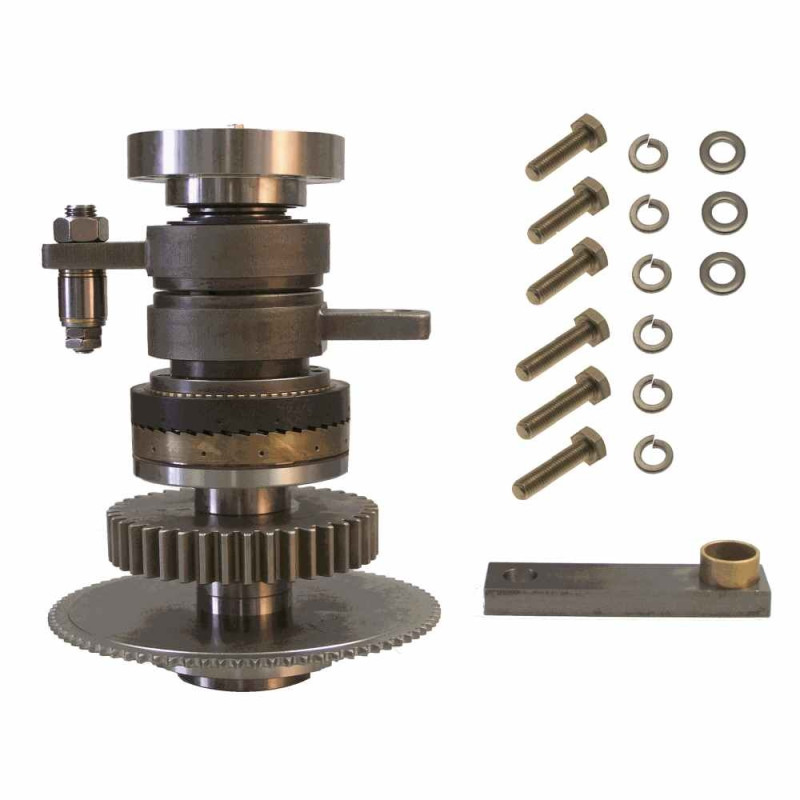

Coupling Complete SR2 Dicer No. 435
Coupling Complete for Ruhle SR2 Turbo No. 435
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F41998 | Free wheel | SR 2 / SR 2 T | 1 |
 |
2 | F26903 | Spring lock washer | DIN127 B 20 | 1 |
 |
3 | F26983 | Disc | Ø 6,5 x Ø 42 x 5 | 1 |
 |
4 | F23234 | Hexagonal bolt | DIN933 M12 x 45 | 3 |
 |
5 | F21042 | Hexagonal bolt | DIN933 M12 x 30 | 3 |
 |
6 | F26961 | Flange | Ø 130 x 28 | 1 |
|
7 | F20210 | Spring lock washer | DIN127 A 12 | 6 |
 |
8 | F20202 | Washer | DIN125 A 13 | 3 |
 |
9 | F26890 | Flange | Ø 130 x 41 | 1 |
 |
10 | F26962 | Self-aligning ball bearing | 2207 E | 2 |
 |
11 | F26968 | Shaft | Ø 40 x 322 | 1 |
 |
12 | F41420 | Chain wheel | SR 2 / SR 2 T | 1 |
 |
13 | F26965 | Ring | Ø 40,2 x Ø 60 x 10 | 1 |
 |
14 | F26966 | Sprocket wheel | Z 40 m 4 | 1 |
 |
15 | F26967 | Ring | Ø 40,2 x Ø 60 x 22 | 1 |
 |
16 | F26977 | Axial Grooved Ball Bearing | DIN711 51108 | 2 |
 |
17 | F26969 | Ring | Ø 40,2 x Ø 60 x 10 | 1 |
 |
18 | F20553 | Disc | Ø 40 x Ø 50 x 0,1 | 4 |
|
19 | F20553a | Compensating disc | Ø 40 x Ø 50 x 0,5 | 2 |
 |
20 | F26979 | Disc | Ø 35,5 x Ø 60 x 4 | 1 |
|
21 | F24031 | Spring lock washer | DIN127 B 6 | 1 |
 |
22 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 1 |
 |
23 | 103748 | Bracket | SR 2 T | 1 |
 |
24 | F26974 | Toothed clutch magnet. SR 2 | 550.25.1.0 | 1 |
