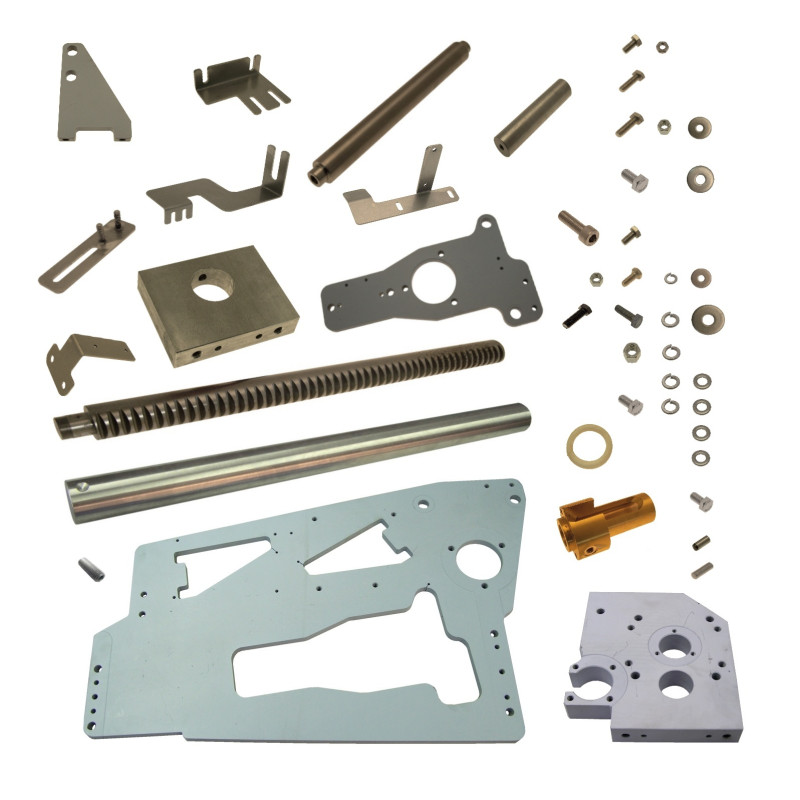

Forward feed guiding Complete SR2 No. 435
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26922 | Plate | 810 x 518 x 15 | 1 |
 |
2 | F26923 | Plate | 275 x 250 x 40 | 1 |
 |
3 | F26929 | Cylindrical pin | ISO8734 - Ø 8 m6 x 20 | 6 |
 |
4 | F21042 | Hexagonal bolt | DIN933 M12 x 30 | 8 |
 |
5 | F26927 | Tube | Ø 40 x 100 x 165 | 1 |
 |
6 | F26926 | Shaft | Ø 40 x 187,5 | 1 |
 |
7 | F27693 | Washer | DIN125 A 10,5 | 5 |
 |
8 | F26379 | Spring lock Washer | DIN127 B 10 | 16 |
 |
9 | F26940 | Plate | 150 x 120 x 30 | 1 |
 |
10 | F21400 | Shock absorber | Ø 10 x 190 | 2 |
 |
11 | F26796 | Shaft | Ø 50 x 713 | 1 |
 |
12 | F21396 | Threaded pin | DIN916 M 12 x 18 | 1 |
 |
13 | F26936 | Gear rack | Ø 40 x 680 | 1 |
|
14 | F21260 | Spring lock Washer | DIN127 B 8 | 3 |
|
15 | F22449 | Hexagonal bolt | DIN933 M 8 x 20 | 3 |
|
16 | F20202 | Washer | DIN125 A 13 | 12 |
|
17 | F20210 | Spring lock Washer | DIN127 A 12 | 18 |
 |
18 | F28447 | Straight pin | ISO2338 - Ø 8 m6 x 20 | 2 |
 |
19 | F26925 | Shaft | Ø 30 x 301 | 2 |
 |
20 | 26924 | Plate | 400 x 220 x 15 | 1 |
 |
21 | F248590 | Bracket | 102,5 x 80 x 72,5 x 2,5 | 1 |
|
22 | F26903 | Spring lock Washer | DIN127 B 20 | 4 |
 |
23 | F24901 | Disc | Ø 12,5 x Ø 35 x 3 | 4 |
 |
24 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 2 |
 |
25 | F28352 | Hexagonal bolt | DIN933 M20 x 60 | 1 |
 |
26 | F20563 | Hexagonal nut | DIN934 M 20 | 1 |
 |
27 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 10 |
|
28 | F24031 | Spring lock Washer | DIN127 B 6 | 10 |
 |
29 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 8 |
|
30 | F20204 | Hexagonal nut | DIN934 M 12 | 8 |
|
31 | F20229 | Hexagonal bolt | DIN933 M12 x 60 | 6 |
 |
32 | F20718 | Cylinder head screw | DIN912 M12 x 65 | 4 |
 |
33 | F42257 | Housing | SR 2 Turbo | 1 |
|
34 | F23646 | Disc | Ø 12,5 x Ø 35 x 4 | 4 |
|
35 | F20323 | Hexagonal bolt | DIN933 M12 x 25 | 4 |
 |
36 | F21403 | Bracket | 140 x 110 x 50 x 5 | 1 |
|
37 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 11 |
|
38 | F20147 | Hexagonal nut | DIN934 M 10 | 8 |
 |
39 | F258520 | Bracket | 135 x 96,5 x 63,5 x 2,5 | 1 |
|
40 | F20258 | Washer | DIN125 A 6,4 | 6 |
 |
41 | F26918 | Plate | 180 x 100 x 15 | 2 |
 |
42 | F20693 | Hexagonal bolt | DIN933 M10 x 35 | 4 |
|
43 | F20402 | Hexagonal bolt | DIN933 M10 x 30 | 4 |
 |
44 | F21661 | Bracket | 107,5 x 155 x 100 x 2,5 | 1 |
|
45 | F21047 | Hexagonal bolt | DIN933 M 6 x 12 | 4 |
 |
46 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 2 |
 |
47 | F20033 | Washer | Ø 20 x Ø 35 x 3 | 1 |
 |
48 | F23389 | Adjusting Spring | A 8 x 7 x 20 | 1 |
