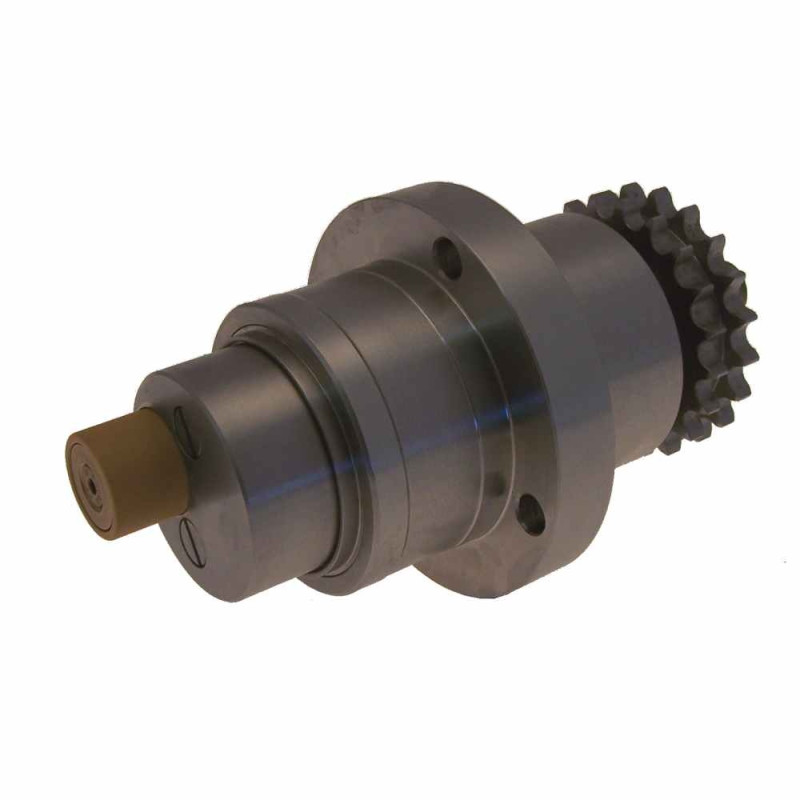

* Eccentric Shaft Exploded View SR2-Turbo No. 74 and higher ex:

Print
  Pos. No.  Part No.  Description  Add. Info  Required
1 F26814a Take-up ring Ø 50 x Ø 72 x 20 1
2 F28057 Radial shaft seal Ø 50 x Ø 65 x 8 2
3 F26809 Housing Ø 120 x 111,5 1
4 F23386 Schrägkugellager DIN628 - 3207 2RS 2
5 F26811 Ring Ø 35,5 x Ø 45 x 40,5 1
6 F26813 Scheibe Ø 55 x Ø 71 x 2 1
7 F27341 Eccentric shaft Ø 50 x 177 1
8 105417 Roller SR 2 Turbo / SR 3 Servo 1
9 F21380 Disc Ø 35,5 x Ø 45 x 5 2
10 F26817 Double chain wheel Z 20-1/2x5/16 1
11 F21393 Disc Ø 20,5 x Ø 45 x 2,5 1
12 F26897 Hexagonal nut DIN439 M 20 x 1,5 2
