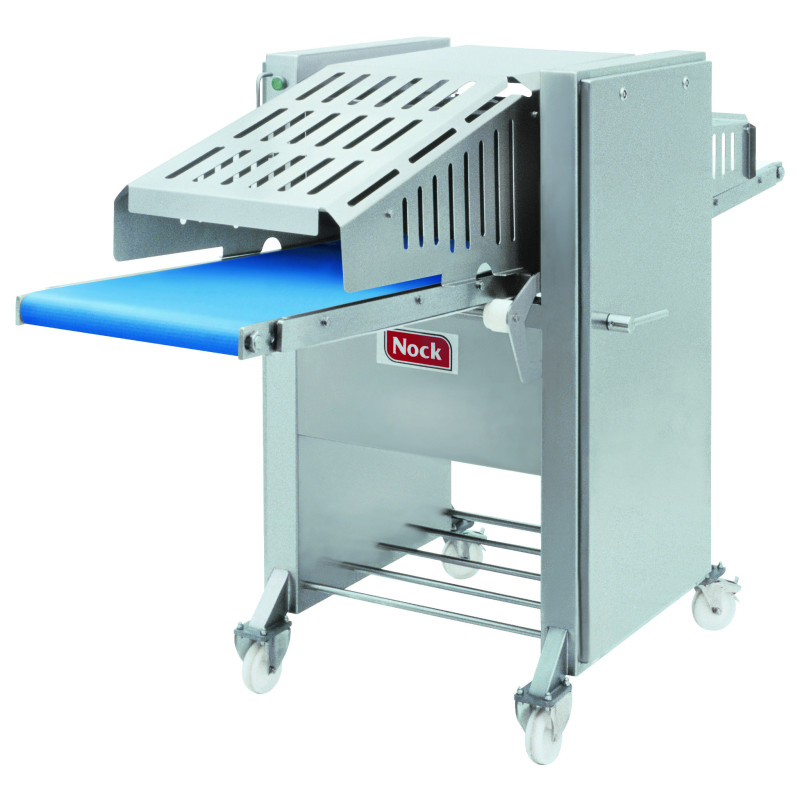

Nock Cortex CB 495/5K Slicer circular blade cutting machine

Economical circular blade cutting machine with an enormous capacity.

Operating width of 400 mm and blade diameter of 200 or 300 mm

Features:

• Blade distance is available in steps / adjustable
• Minimum blade distance depending on product is from 6 - 8 mm
• Meat can be cubed with 2 machines standing at a right angle with an excellent cut quality and protection of the product line with an enormous capacity

Application:

• Various application areas, when large quantities of boneless products need to be cut into slices or strips with a high cut quality in a short period of time.
• Products that can be processed: Beef scallops or steaks, pork scallops or steaks, thin slices from pork belly, diced meat, poultry, fish fillets or whole fish, offal, diced meat for cutters or mincers, etc.

Standard:

• Infeed conveyor
• Discharge conveyor
• Intersection roller with quick change system
• NOCK POWER PLATES for typical NOCK service friendliness
• NOCK EASY-FLOW safety cover with pneumatic spring for exemplary operational safety
• Lift out device for blade shaft
• Safety cover for blades
• Lockable castors
• Stainless steel

Technical Specifications:

• Blade diameter: 200/300mm
• Max. throughput height: 70/120mm
• Blade equipment: max. 400mm
• Conveyor belt width: 435mm
• Max. throughput width: 475mm
• Conveyor speed: 18m/min
• Min. blade distance (tech. limit): 6mm (depending on product)
• Available blade distance grids: 6-7-8-9-10-11mm
• Overall dimension: 820x1300x2450mm (WxHxD)
• Weight: 260kg (with 8mm blade distance and 200mm blade diameter)
• Motor performance: 1.1kW
• Voltage: 400V 50Hz 3Ph (other voltage options available)

Options:

• Adjustable lateral guides on infeed conveyor
• Transport and storage box for blade shaft
• Cleaning wagon for 2 blade shafts
• Other speeds available
• Plastic intersection roller with stainless steel core
• Intersection roller without quick change system, but with scraper comb
• Longer conveyors
• Scraper on output conveyor
