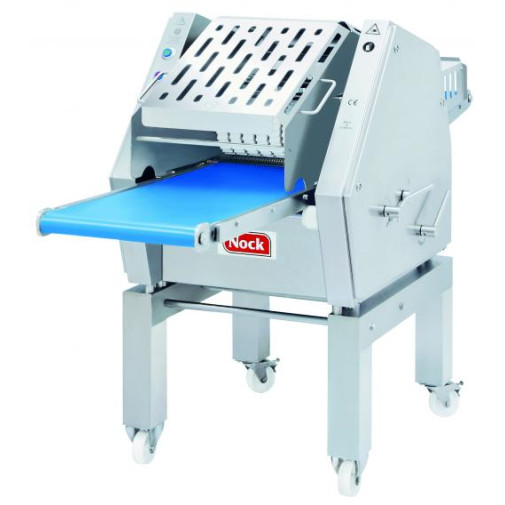

Nock Derinding Machine Cortex CB 619

Type: cutting width: 600mm
Country of Origin: Germany
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8100
Financing Available
Note: Shipping to be determined
Options for Nock Cortex CB 619:

Nock Cortex CB 619 Automatic Conveyorized Derinding Machine

The derinding machine has further developed geometry of the pressure system with dynamic adaptation for variously products

Features and application range:

  1. Infeed conveyor (1070x590 mm)
  2. Discharge conveyor (1070x590 mm)
  3. Cutting width: 600 mm
  4. Cutting speed: 29 m/min
  5. Max height of meat: 120mm


  • Infeed conveyor
  • Discharge conveyor
  • Compact casing with sloping tops and with underframe open on all four sides
  • Blade gap infinitely adjustable
  • Spring suspended blade holder for perfect derinding results
  • Tooth roller with scraper comb
  • NOCK POWER PLATES for outstanding robustness, service friendliness, and easy clean of surfaces
  • NOCK EASY-FLOW safety cover for reliable product flow and better hygiene during processing with pneumatic spring
  • Conveyors can be removed within seconds without any tools
  • Lockable castors
  • Material: Stainless steel and stainless steel bearings


  • Discharge conveyor for removed skin
  • Lateral discharge conveyor for removed skin with separate drive
  • Suspended version with plant specific adaptation
  • Safety cover for discharge conveyor
  • Plastic modular belts
  • Inflated pressure balloon
  • Transfer plate for passage without processing

Technical Data:

Blade Gap 0-5mm
Apply length on infeed conveyor 315mm
Infeed conveyor 1070 x 590mm
Discharge conveyor 1070 x 590mm
Discharge conveyor for removed skin 850 x 590mm
Overall dimension WxHxD 956x1570x2260mm
Weight 330kg
Motor performance 1,1kW
Electrical connection

3AC - 400V - 50Hz

Other voltages upon request
