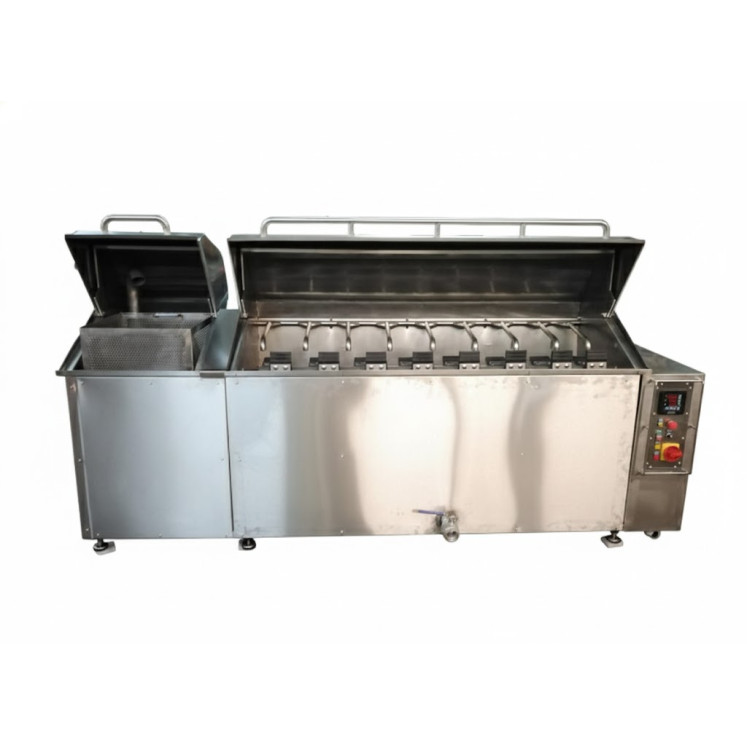

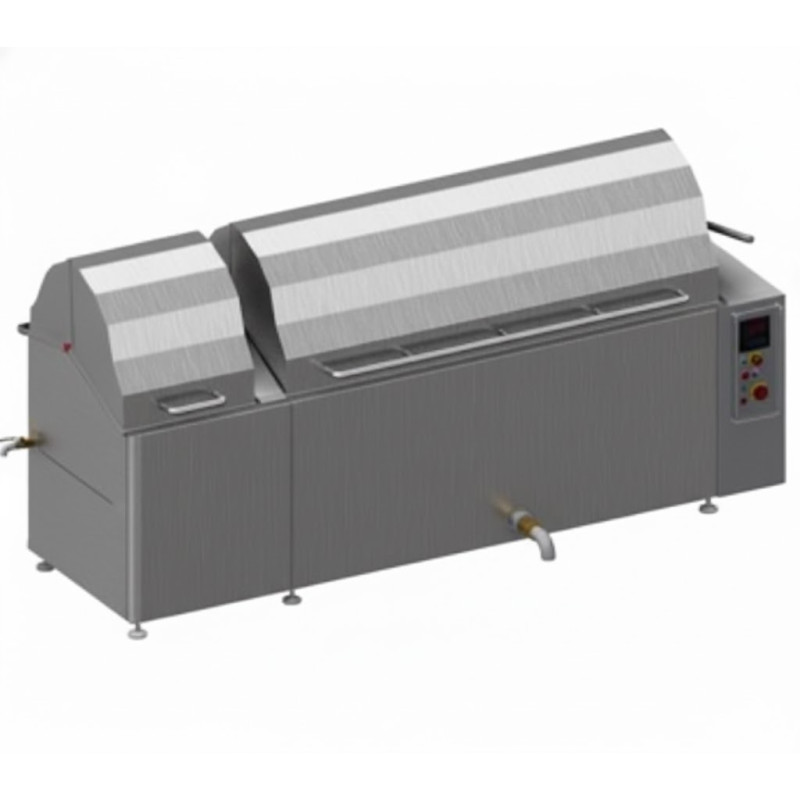

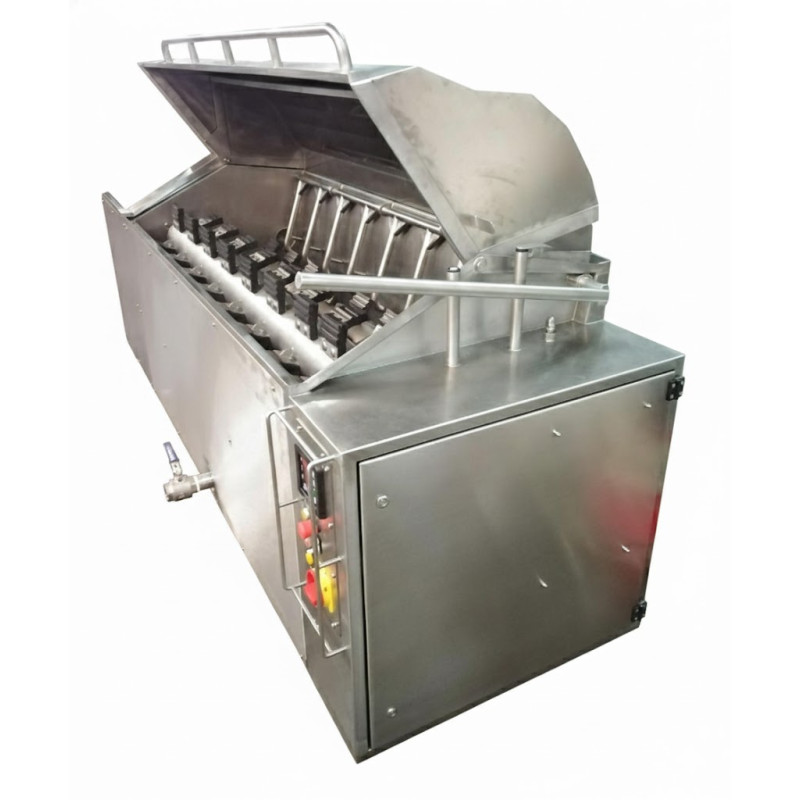

Scalding-Dehairing Machine OSM Type

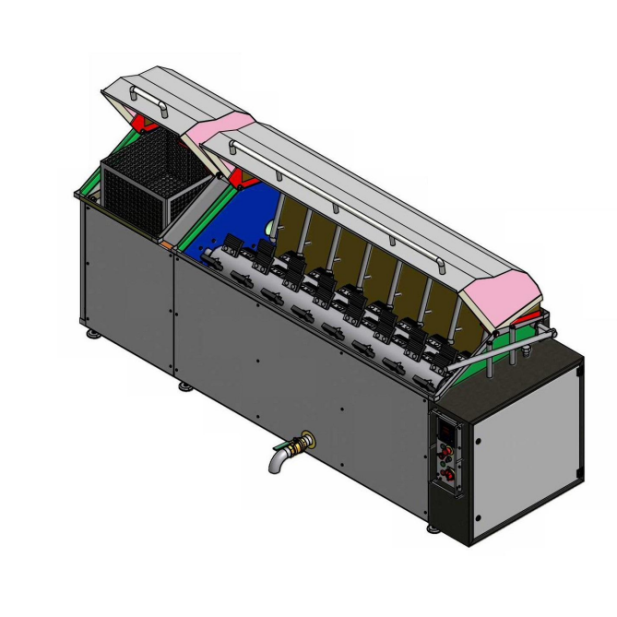

The Machine has two open-able covers enabling the loading of pig carcases from the rear or from the front of the device. A convenient bristle separator is mounted on the side of the burner. The construction and housing of the machine is made entirely of acid-resistant steel.

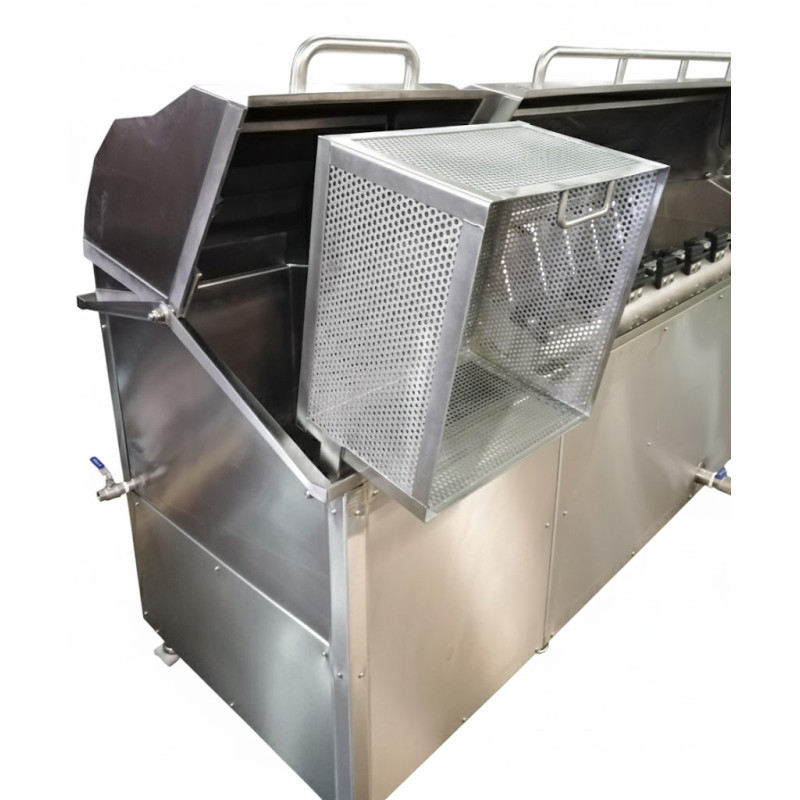

The working part consists of a scalder as well as a drive and control part. Bathtub insulated with mineral wool and covered with protective sheets. A bristle separator with a movable ejection basket is mounted on the side of the burner.

The device is equipped with:

  • Ejector design
  • Bristling shafts
  • Bristle separator
  • Bristle suction pump into the separator

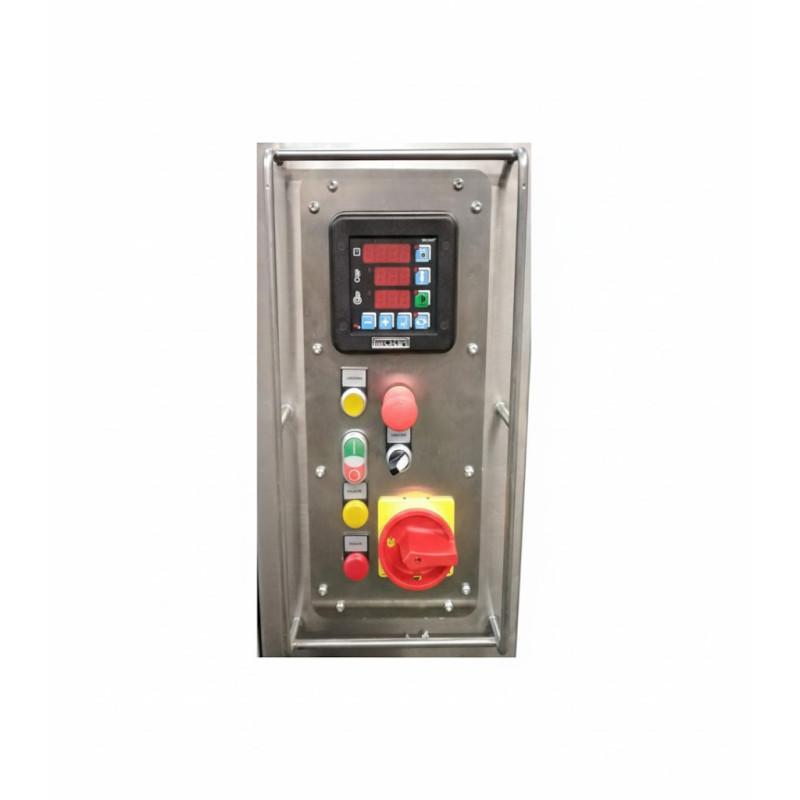

  • Control panel
  • Tap for filling in water ¾ ''
  • Water drain valve 2 ''

Technical Data:

• Power of the motor driving the shafts - 2.2 kW.
• Motor power of the bristle separator pump - 0.75kW.
• Heater power - 25kW.
• Efficiency - up to 20 pcs / h
• Max weight of pig – 150kg
• Weight of the machine - 995kg
• Voltage – 3x480V/60Hz, 3x400/50 or 3x220/60
