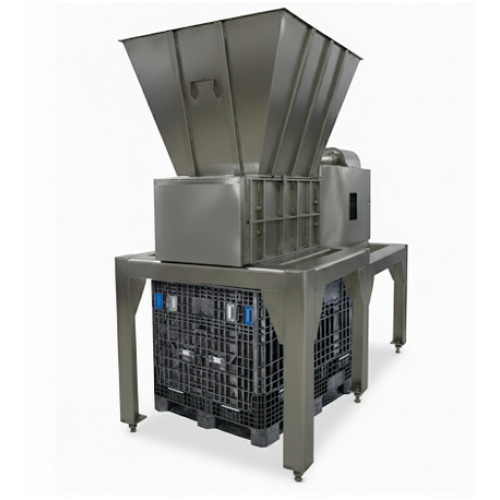

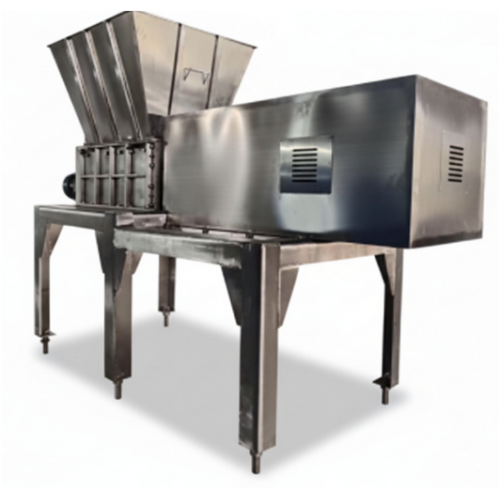

Introducing the Bone Crusher 5T Industrial Shredder

A powerful and reliable solution engineered to meet your toughest material reduction challenges.

This machine combines robust construction with efficient performance, making it the ideal choice for businesses seeking a durable and effective shredding solution.

Key Features & Performance

Powered by a 45kW motor, the Bone Crusher 5T handles large materials with ease. It accepts feed sizes up to 1000mm and reduces them to random, average sizes between 20 - 100mm.

This unique output provides a mix of sizes that can be customized for a variety of applications.

With a capacity of 5 tons per hour, it significantly boosts productivity, allowing you to process high volumes of material quickly and efficiently.

Built to Last: Premium Materials

Durability is at the core of the Bone Crusher 5T's design. The frame, box, and hopper are crafted from high-quality 304 stainless steel, providing excellent resistance to corrosion and wear.

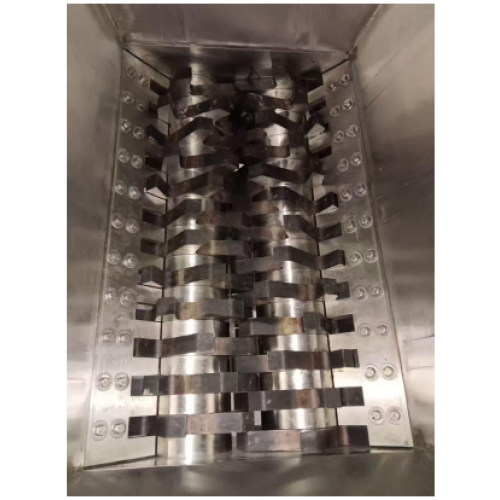

The main spindle is constructed from 1Cr17in2 stainless steel for superior strength, while the blades are made from exceptionally tough 440C stainless steel, ensuring long-lasting performance and minimal maintenance.

This premium material selection guarantees the machine's longevity, even under the most demanding operating conditions.

Specifications at a Glance

• Model: Bone Crusher 5T

• Motor: 37kW-380V-50Hz-3-phase Standard, (Optional 45kW-220V-60Hz-3-phase)

• Feed Size: 600-1000mm

• Discharge Particle Size: 20 - 100mm

• Capacity: 5 tons/hr

• Spindle Speed: 26 r/min

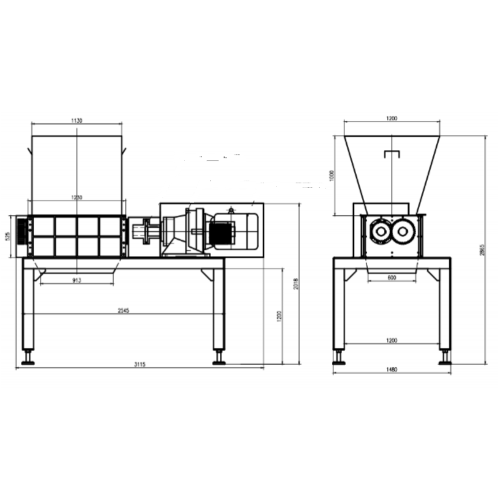

• Dimensions: 3115 x 1200 x 2865mm

• Weight: 4000kg

The Bone Crusher 5T Industrial Shredder is more than just a machine; it's a long-term investment in efficiency and reliability for your business.
