Thermoforming Packaging Machine B420

Thermoforming Packaging Machine B420 These Thermoforming Packaging Machine are made of stainle... Read More

Stock: On Order
Brand: 1281

Available Options

Tooling Molds

2-Up Tooling Mold

4-Up Tooling Mold

Qty

Request Quote

From Same Category
Same Brand

Quickview

Thermoforming Packaging Machine A4210

View Details Request Quotes

Tags: Thermoforming Machines

Description
Specifications

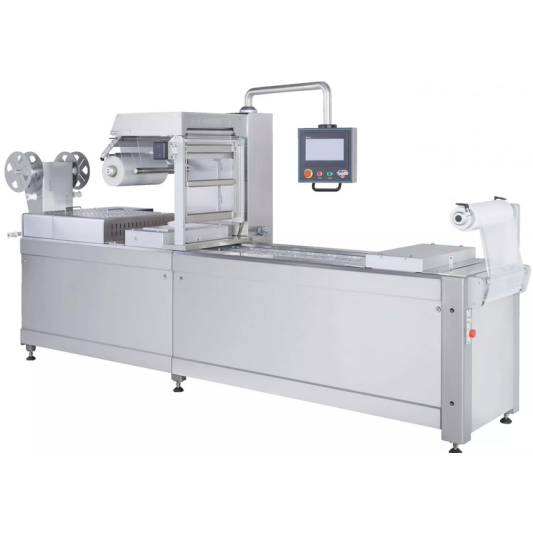

Thermoforming Packaging Machine B420

These Thermoforming Packaging Machine are made of stainless steel, in line with food hygiene and safety.
Consists of Durable transmission chain.
Equipped with Servo motor that provides precise and fast forward functioning.
Multi-lingual PLC touch screen.
Able to work with automatic filling system, data injecting printing, data thermal printing, film easy to tear, water cooling machine etc.,
Simple, and easy to use and change die sets.
Die size and design can be customized as per customer needs.
Machine is provisioned with automatic system that will notify about insufficient film supply.
High-speed production can reduce considerable labor costs.
It can be used to pack powder, paste, solid and liquid products.
Vacuum Pump Busch: 100m3/hr.

Specification

Machine dimension	3700 x 950 x 2000mm
Width of forming film	424 mm
Width of sealing film	404 mm
Air Supply	5~7 bar
Water consumption	50~80 L/h
Power	220V 60Hz 3Ph
