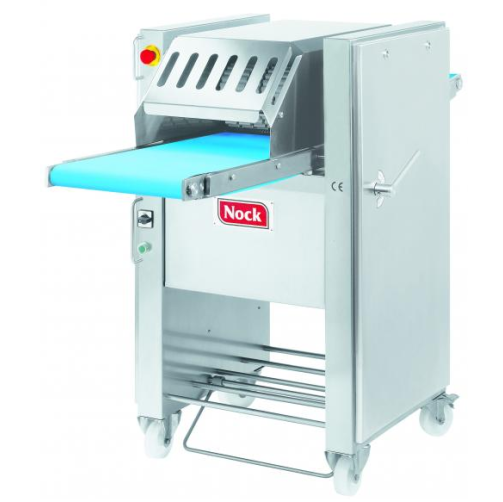

Nock Derinding Machine Cortex CB 435

Nock Cortex CB 435 Automatic and Manual Conveyorized Derinding Machine

The Nock Cortex CB 435 Automatic and Manual Conveyorized Derinding Machine is a highly versatile, dual-function processing unit built to bring industrial precision to meat rooms and high-volume packing plants. As an elite selection among modern automatic derinding machines, this space-saving conveyorized system features a compact footprint combined with an integrated short infeed conveyor, making it perfectly optimized for open-top processing. Built by Nock, a premier brand recognized globally for engineering heavy-duty high-speed derinders, this machine allows lines to transition effortlessly from conveyor-fed operations to open manual skinning, providing maximum yield efficiency on every cut.

• Dual Mode Flexibility: Configured for automatic inline processing using a high-grip conveyor system or manual open-top derinding via an ergonomic foot-switch control bar.
• Automatic Infeed Setup: Ships standard with a integrated high-durability infeed conveyor (850 x 425 mm) paired with a solid output discharge slide sheet.
• Conveyor Processing Scope: Programmed for automated skinning and rind removal of all flat pieces, including pork belly cuts, back fat plates, and rinds cut to specific size templates.
• Manual Open Top Scope: Ideal for precision manual skinning of large, round primal pieces of meat up to 90 mm in height, such as commercial hams or bone-in shoulders.
• High-Speed Output Performance: Provides a generous cutting width of 430 mm driving a fixed linear cutting speed of 24 meters per minute for swift batch throughput.

• Infinitely Adjustable Blade Gap: Micro-adjustable blade settings enable processing lines to calibrate the skinning thickness precisely to specific product types.
• Spring Suspended Blade Holder: Floating blade assembly adapts automatically to varying rind density profiles to ensure clean extraction results without meat loss.
• NOCK Power Plates: Internal mechanical structural plates provide outstanding chassis robustness, lifelong machine alignment, and superior service friendliness.
• NOCK Easy-Flow Safety Cover: Streamlined protective cover maximizes safety parameters while improving product flow and preventing ingredient traps.
• Tooth Roller with Scraper Comb: Heavy-duty dynamic pulling roller prevents surface buildup and ensures continuous blade loading.
• Toolless Conveyor Removal: Modular transport belts can be stripped down from the machine frame within seconds without tools to allow rapid sanitizing cycles.
• All-Stainless Construction: Engineered entirely from food-grade stainless steel with specialized stainless steel bearings and lockable heavy-duty swiveling castors.

• Motorized rear discharge conveyor assembly.
• Plastic modular conveying belts for advanced wear-resistance.
• Pneumatically inflated internal pressure balloon roller system.
• NOCK Integrated Product Return System for multi-pass lines.

* Note: The Cortex CB 435 is a highly adaptable industrial derinding machine equipped with a detachable mechanical table and a foot switch bar. This configuration can be effortlessly converted to accommodate open-top skinning routines for bone-in rounds.
