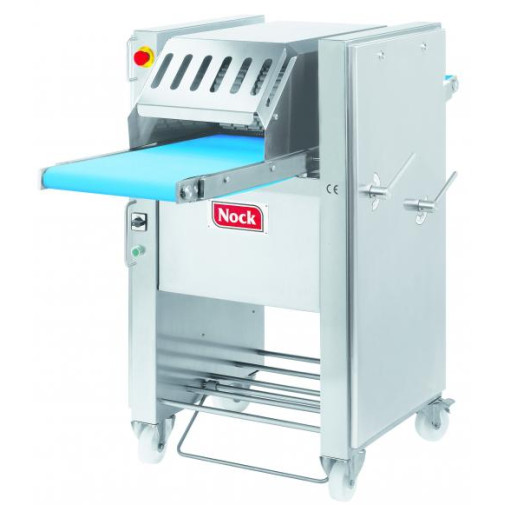

Nock Derinding Machine Cortex CB 496

Nock Cortex CB 496 Automatic and Manual Conveyorized Derinding Machine

The Nock Cortex CB 496 Automatic and Manual Conveyorized Derinding Machine is a premier dual-purpose processing unit designed to handle versatile high-speed workflows in commercial meat plants and packaging facilities. Engineered as an elite choice among modern automatic derinding machines, this highly flexible model features a medium-long infeed conveyor alongside an integrated pressure unit that is infinitely variable in height. Built by Nock, a brand globally renowned for manufacturing highly robust, failure-free derinders, the Cortex CB 496 bridges the gap between high-volume automated inline processing and precise manual open-top operations. This adaptable derinding machine configuration ensures your processing lines maximize meat yield while reducing changeover downtime.

• Dual-Mode Functionality: Offers an efficient inline automated configuration utilizing integrated conveyors or a manual open-top setup powered by an ergonomic foot-switch bar.
• Highly Versatile Pressure Unit: Features a specialized height-adjustable pressure system that moves dynamically to safely accommodate flat cuts or thicker profiles.
• Automated Material Path: Built standard with a resilient infeed conveyor tracking system (850 x 425 mm) and an integrated product output slide sheet.
• Manual Open-Top Scope: Ideal for precision skinning of round product primal cuts (such as whole bone-in hams or shoulders) up to a maximum meat height clearance of 90 mm.
• High-Throughput Yield: Outfitted with a generous 430 mm operational cutting width operating at a swift cutting speed of 24 meters per minute to maximize plant floor productivity.

• Infinitely Adjustable Blade Gap: Precise mechanical blade-gap settings enable operators to customize thickness levels from 0 to 5 mm depending on product specs.
• Floating Blade Holder: Outfitted with a spring-suspended blade assembly that self-adjusts to varying skin densities, preventing meat loss or tearing.
• Advanced Spring-Suspended Roller: Heavy-duty pressure roller incorporates spring suspension while remaining fully variable in height to ensure uniform contact.
• NOCK Power Plates: Internal mechanical structural plates provide outstanding chassis robustness, lifelong machine alignment, and ultra-smooth, easy-to-clean surfaces.
• NOCK Easy-Flow Safety Cover: Streamlined protective shielding maximizes operator safety while guaranteeing a reliable product flow and top-tier sanitary compliance.
• Toolless Cleaning Maintenance: Conveyor belt assemblies can be stripped down from the stainless steel frame within seconds without any tools, lowering daily washdown overhead.
• Sanitary Mechanical Build: Fabricated entirely from food-grade stainless steel with specialized stainless steel bearings and lockable heavy-duty swiveling castors.

• Motorized rear product discharge conveyor lines.
• Specialized discharge conveyor configured specifically for removed skins.
• Plastic modular conveying belts for intense wear resistance.
• Pneumatically inflated internal pressure balloon systems.
• NOCK Integrated Product Return System for multi-pass slicing networks.

* Note: The Cortex CB 496 includes a fully exchangeable technical infeed table configuration and foot switch control bar. This layout allows the machine to be effortlessly converted within minutes to transition to open-top skinning protocols for heavy bone-in products.
