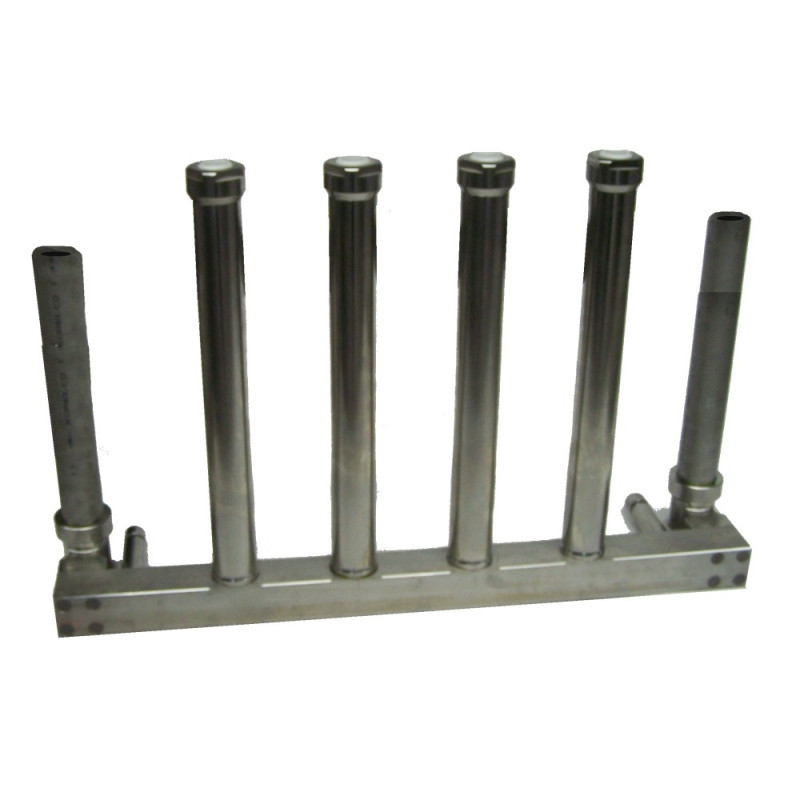

Housing Complete - Needle beam
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F249450 | Traverse | 60 x 60 x 900 | 1 |
 |
2 | F250253 | Shaft | Ø 30 x 181 | 2 |
 |
3 | F250256 | Bushing | ø 30,5 x 44,5 x 58,7 | 4 |
 |
4 | F250254 | Tube | Ø 63 x 11,5 x 550 | 4 |
 |
5 | F250255 | Bushing | Ø 25,5 x 47,6 x 73 | 4 |
 |
6 | F250257 | Nut | Ø 65 x 13,5 x 37 | 4 |
 |
7 | F445069 | Bracket | IR 28/56 | 2 |
 |
8 | F28447 | Cylindrical pin | ISO2338 - Ø 8 m6 x 20 | 4 |
 |
9 | F21087 | Cylinder head screw | DIN912 M10 x 60 | 8 |
 |
10 | F245076 | Disc | Ø 18 x 4 | 8 |
 |
11 | F250252 | Tube | Ø 55 x 5 x 375,5 | 2 |
 |
12 | F240148 | Flange | M48 x 1,5 x Ø 53,8 x 25 | 2 |
