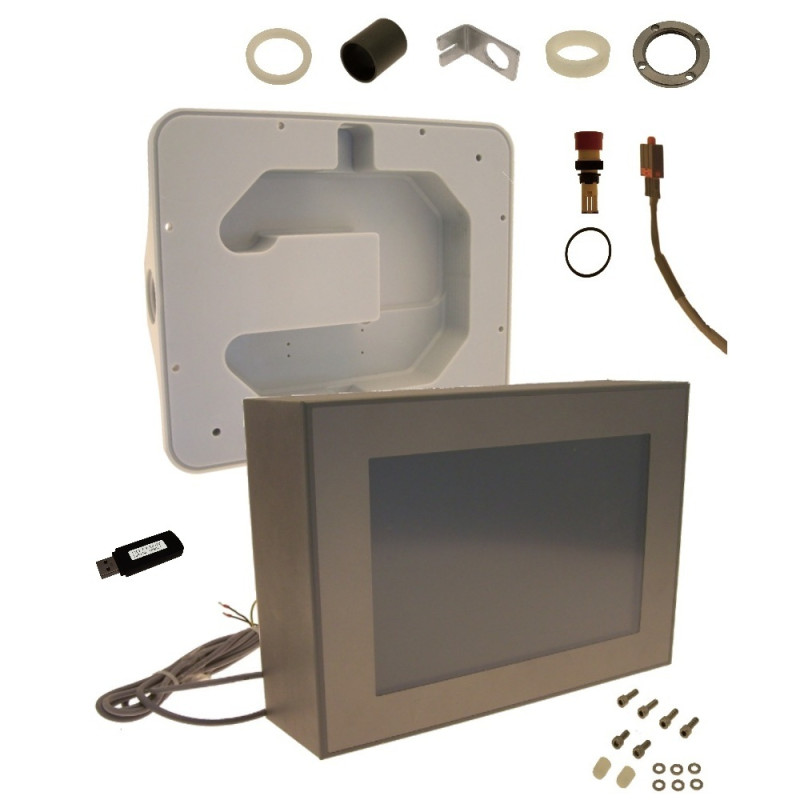

Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|---|
 |
1 | F245778 | Back part | 320 x 265.4 x 49 | 1 | |
 |
 |
2 | 108002 | PC Kuhnke 12,1" | cpl. | 1 |
 |
3 | 108011 | Programmed USB-Stick | SR2T V 2.0 Ku | 1 | |
 |
4 | 104034 | PC conversion kit | PC MSC CARAT 12" | 1 | |
 |
5 | F144249 | Sealing ring | Ø 3 | 1,5 | |
 |
6 | F28387 | Not-Aus Taster | Q 25PV | 1 | |
 |
7 | F29325 | O-Ring | Ø 17 x 2,5 | 1 | |
|
 |
8 | 101571 | Cable emergency stop switch | MKR 150/220 | 1 |
 |
9 | F28918 | Ring | Ø 30,2 x Ø 39,8 x 6 | 1 | |
 |
10 | F20074 | Gleitlager | GSM-3034-40 | 2 | |
 |
11 | F28909 | Nut | M 30 x 1.5 x Ø 42 x 6 | 1 | |
 |
12 | F28911 | Ring | Ø 30,2 x Ø 42 x 12 | 1 | |
 |
13 | F245790 | Bracket | 103,5 x 40 x 4 | 1 | |
 |
14 | 106178 | Circuit diagram | MKR 150/220 | 1 |
