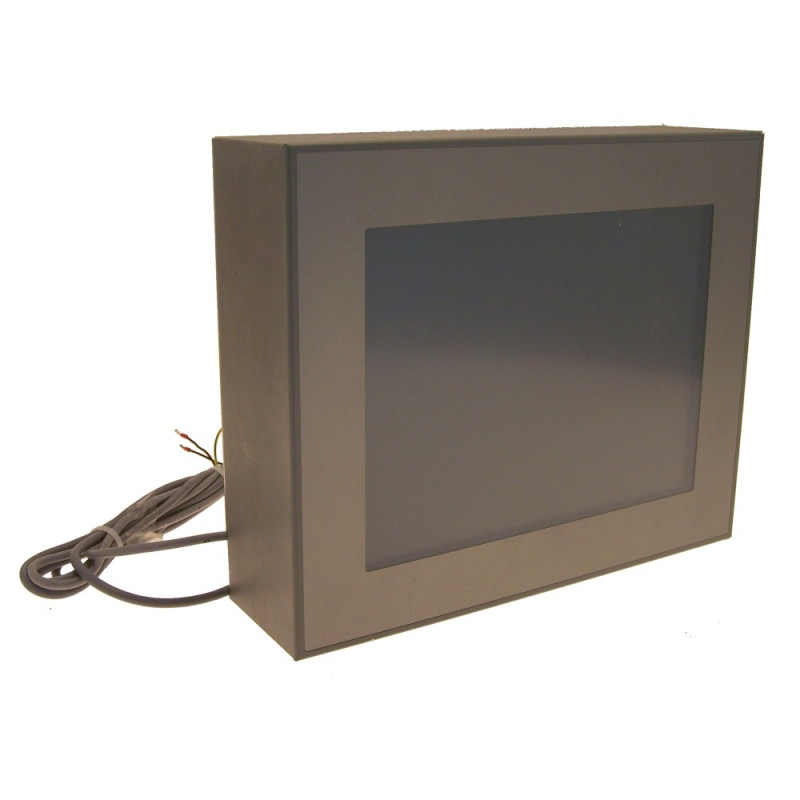

PC Kuhnke 12,1" Complete

Type: 108002
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 791

Note: Shipping to be Determined.

* PC Kuhnke 12,1" Exploded View SR2 Turbo No. 74 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

PC Kuhnke 12,1" Complete

Type: 108002
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 791

Note: Shipping to be Determined.

* PC Kuhnke 12,1" Exploded View SR2 Turbo No. 74 and higher:
--104465 Frame
--104046 Plate / Sheet
--F144249 Sealing ring
-- F24105 Countersunk bolt
--F22760 Countersunk bolt
--104020 Cylinder head screw
--F25984 Zylinderschraube
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F144451 Rundschnur
--F148541 Sticker
--F28732 lock washer
--F27365 Cylinder head screw
--105416 Cylinder head screw
--106739 MECPART clamp
--106784 Ventura Panel PC 12,1"
--F29060 Hexagonal nut
-- F249240 Cable gland
--F23343 Cable
--F27333 Litz 1.5mm²
--F249399 Drying agent
--F20700 Cable
--F249129 Hood metal.
--F249013 Plug-in connector SUB D, TM
--F27358 Cable end sleeve
--F20714 Shrink hose

Pos. No.	Part No.	Description	Add. Info	Required
1	104465	Frame	335 x 275 x 86	1
2	104046	Plate / Sheet	PC MSC CARAT 12"	1
3	F144249	Sealing ring	Ø 3	1,2
4	F24105	Countersunk bolt	DIN963 M 5 x 6	2
5	F22760	Countersunk bolt	DIN963 M 5 x 16	6
6	104020	Cylinder head screw	DIN84 M 5 x 6	4
7	F25984	Zylinderschraube	DIN84 M 5 x 12	2
8	F20258	Washer	DIN125 A 6,4	12
9	F24031	Spring lock washer	DIN127 B 6	5
10	F20203	Hexagonal nut	DIN934 M 6	4
11	F144451	Rundschnur	Ø 6 Silikon klar	0,03
12	F148541	Sticker	BMK02	2
13	F28732	lock washer	DIN6797-A ø 6,4	3
14	F27365	Cylinder head screw	DIN84 M 6 x 20	3
15	105416	Cylinder head screw	DIN912 M 4 x 60	6
16	106739	MECPART clamp	QW 72/96 PA-6	6
17	106784	Ventura Panel PC 12,1"	Kuhnke	1
18	F29060	Hexagonal nut	M 25 x 1,5	1
19	F249240	Cable gland	M 25 x 1.5 2 x 4/1 x 8	1
20	F23343	Cable	ÖZ-J 3 x 1.0 mm²	4
21	F27333	Litz 1.5mm²	H07V-K 1,5 mm² gn/ge	0,35
22	F249399	Drying agent	1/6, 40 x 95 x 5	3
23	F20700	Cable	Liycy 3 x 0.5 mm²	2
24	F249129	Hood metal.	9 poles SUB D	1
25	F249013	Plug-in connector SUB D, TM	9 poles SUB D	1
26	F27358	Cable end sleeve	0,5 mm² white	6
27	F20714	Shrink hose	HIS - 1/4"	0,03
