Nock Fish Skinning Skinex SBS 416

Type: cutting width: 230mm
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8123
Financing Available
Note: Shipping to be determined
* Power Option for Skinex SBS 416:

Options for Skinex SBS 416:


Nock Skinex SBS 416 Automatic Fish Skinning Machine

Automatic fish skinning machine for plaice fillets and other flatfish transport roller with dynamic cleaning roller.

With water spray unit, special pressure unit, 2 trimming rollers to remove the frills

Automatic fish skinner with S technology and special application for low-loss skinning of fish with thin skin.

Features:

  • High capacity (28 m/min conveyor speed)
  • Skins both upper and lower fillets
  • Very simple demounting of infeed conveyor, pressure unit and blade holder to quickly and easily clean the machine.

Application:

  • Automatic skinning machine with S technology for plaice fillets and other flatfish
  • Removes simultaneously or selectively the frills (fin fringes) (from both sides, from only one side, or from neither side)

Standard:

  • Infeed conveyor
  • Discharge conveyor

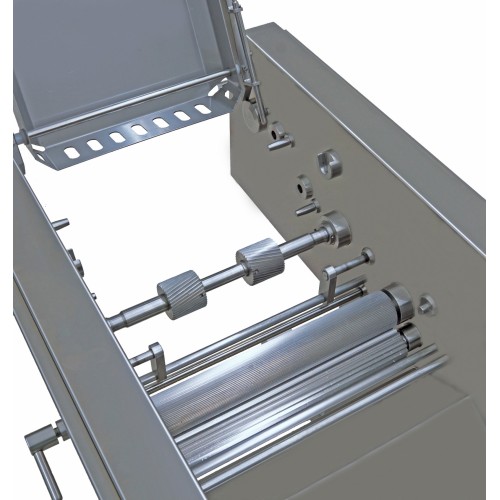

  • Skinning unit with very quick changeable blade, transport roller (AISI 316L) without peripheral grooves and dynamic stainless steel cleaning roller (S technology)
  • High blade durability
  • 2 trimming rollers to remove the frills (fin fringes) (individual deactivation via cover plates)
  • Integrated water cleaning unit for reliable continuous operation with low water consumption
  • Blade gap infinitely adjustable
  • Spring suspended blade holder for perfect skinning results
  • Special pressure unit for reliable skinning and ideal product protection
  • Infeed conveyor
  • NOCK POWER PLATES for a particularly easy to clean machine construction, outstanding robustness and service friendliness
  • NOCK EASY-FLOW safety cover
  • Operating levers on left hand side of the machine
  • Lockable steering castors
  • Stainless steel
  • Stainless steel bearings

Technical Specifications:

  • Cutting width: 230mm
  • Speed of infeed conveyor: 17m/min
  • Maximum throughout height: 20mm
  • Blade gap: 0-0.5mm infinitely adjustable
  • Apply length on infeed conveyor: 550mm
  • Dimension: 750x1060x1420mm (WxHxD)
  • Weight: 280kg
  • Motor performance: 1.5kW
  • Voltage: 400V 50Hz 3Ph (other voltage options available)
  • Water connection: G 1/2 internal thread

Options:

  • Operating levers on the right hand side of the machine
