Nock Fish Skinning Skinex SBW 496 White Fish
Country of Origin: Germany
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8124
Brochure

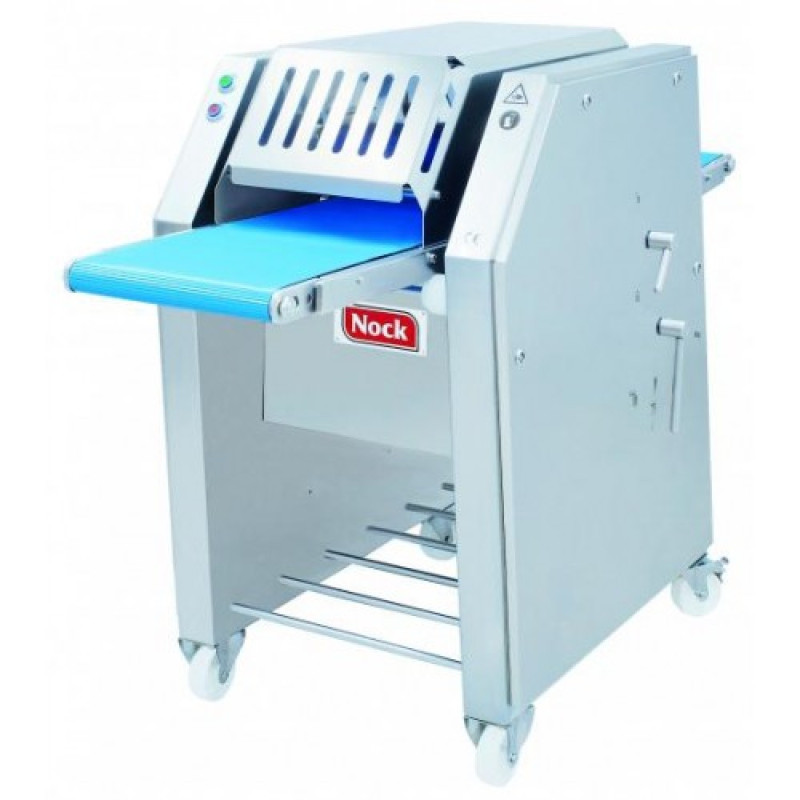

Nock Skinex SBW 496 Automatic White Fish Skinning Machine
The German-engineered Nock Fish Skinning Skinex SBW 496 White Fish processing system represents the industry pinnacle in conveyorized yield recovery, purpose-built to survive high-yield fish packing lines. If your processing facility, industrial seafood commissary, or packaging plant is source-matching a premium commercial fish skinner, looking to acquire a heavy-duty continuous skinning machine, or deploying an elite automatic fish skinner line, this specialized fish skinning machine sets the automated benchmark. Specifically optimized to act as a precision catfish skinner Canada asset and process demanding whitefish fillets—including cod, pollock, haddock, wolffish, and perch—it relies on Nock's proprietary ACTIVE SKIN GRIPPER (ASG). This system prevents the problematic, costly V-shaped splitting of the fish tail, protecting fillet integrity and maximizing downstream retail presentation margins.
???? 2 Adaptable Seafood Skinning Methods
The SBW 496 provides flexible processing mechanics, letting seafood production crews quickly calibrate across two distinct operational formats:
- Skinning with Sharp Blade: Provides stepless precision tracing from paper-thin to deep cut tracking, driven by the activated NOCK ACTIVE SKIN GRIPPER (ASG) to completely protect delicate sub-dermal whitefish layers.
- Pulling-Off with Blunt Blade (Silver Skinning): Safely peels the outer skin layer from the underlying fillet membrane, leaving a flawless, glistening silver tissue finish.
- NOCK MULTI-DISC Upper Pressure Conveyor: Advanced, highly flexible multi-disc pressure conveyor with integrated pneumatic release, designed to glide smoothly over delicate whitefish fillets without bruising internal flesh structures.
- Groove-Free S-Technology Roller: Marine-grade AISI 316L stainless steel transport cylinder operates completely without peripheral lines, running in tandem with a counter-rotating dynamic cleaning roller to maintain steady fillet grip and prevent muscle tearing.
- Integrated Water Cleaning Loop: Pressurized water wash unit continuously flushes away scales, slime, and blood line residues to preserve optimal roller traction while maintaining exceptionally low water consumption.
- Toolless Conveyor Extraction: High-traction infeed and discharge conveyor systems detach completely from the machine frame within seconds without tools, accelerating daily cleanup tasks.
- Bypass Passage Configuration: Versatile engineering allows the machine to be adapted with just a few simple adjustments to facilitate clean product passage through the deck without engaging the skinning blade.
- 15mm NOCK POWER PLATES®: Internal mechanical transmission tracks are mounted directly onto solid, 15 mm thick internal alignment plates to deliver exceptional structural robustness, low vibration, and long-term service friendliness.
| Active Cutting Width Clearance | 430 mm Clear Skinning Track |
| Operational Linear Skinning Speed | 28 meters / minute Continuous Line Velocity |
| Maximum Throughput Clearance Height | 70 mm Product Height Cap |
| Blade Gap Sizing Bounds | 0 to 3 mm High-Precision Infinitely Adjustable Matrix |
| Integrated Conveyors (Infeed / Outfeed) | 850 × 425 mm (With a 400 mm manual loading zone) |
| Required Pneumatic Air Supply | 5 ≤ p ≤ 10 Bar Supply Pressure |
| Operational Volumetric Air Flow | ≈ 50 Liters / minute continuous lines consumption (Ambient pressure) |
| Hygienic Water Grid Connection | G ½" Internal Pipe Thread Fitting • Consumption: ≈ 200 L/h |
| Main Motor Drive Performance | 1.1 kW High-Torque Waterproof Drive Engine |
| Electrical Connection Grid Target | 3 AC • 400 V • 50 Hz • 3-Phase Standard (Other voltages available) |
| Overall Dimensions (W × H × D) | 750 × 1220 × 1820 mm |
| Equipment Structural Net Weight | 260 kg (~573.2 lbs.) High-Stability Mechanical Footprint |
- Dedicated Waste Skin Conveyor: Integrates an secondary discharge tracking belt under the main outfeed frame to carry removed skin automatically to collection bins.
* Note: Constructed entirely from premium food-grade stainless steel with watertight bearings and lockable steering castors. Designed around NOCK's EASY-FLOW® safety cover to maximize product safety while streamlining tool-free sanitation tear-downs.
