Nock Fish Skinning Skinex QS 98

Type: cutting width: 2x200 mm
Country of Origin: Germany
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8122

Financing Available

Note: Shipping to be determined

* Power Option for Skinex QS 98:

Options for Skinex QS 98:
discharge conveyor for removed skin
longer infeed conveyor
transport roller with coarse or fine toothing

Brochure

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Nock Fish Skinning Skinex QS 98

Type: cutting width: 2x200 mm
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM Product Code: 8122

Financing Available

Note: Shipping to be determined

* Power Option for Skinex QS 98:
--Standard: 400V 50Hz 3Ph
--Optional: 220V 60Hz 3Ph
--Optional: 480V 60Hz 3Ph
--Optional: 575V 60Hz 3Ph

Options for Skinex QS 98:
discharge conveyor for removed skin
longer infeed conveyor
transport roller with coarse or fine toothing

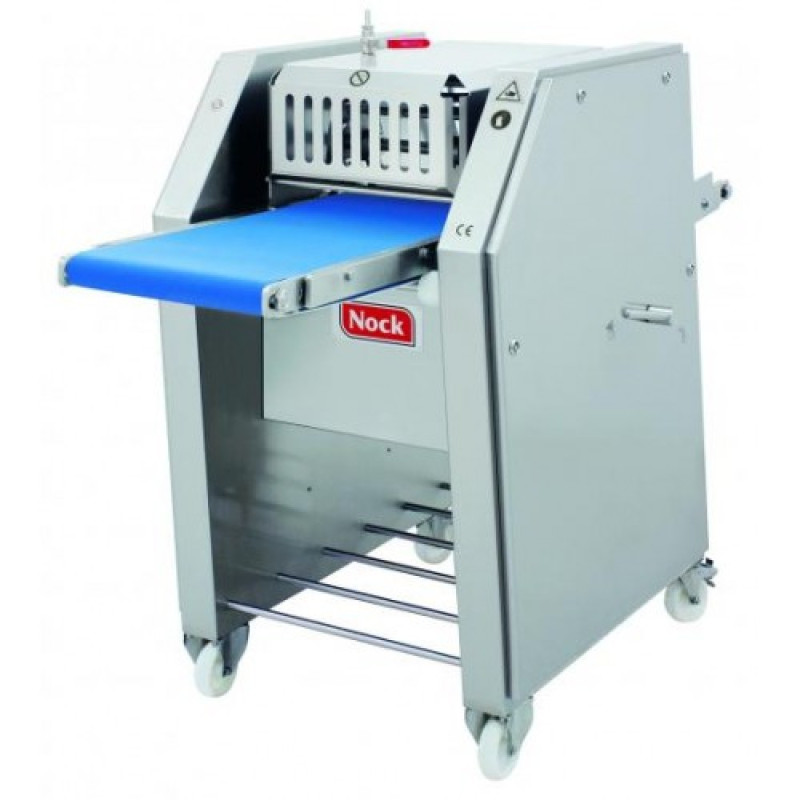

Nock Skinex QS 98 Automatic Fish Skinning Machine

The German-engineered Nock Fish Skinning Skinex QS 98 series represents a premier industrial advancement in conveyorized seafood yield optimization, purpose-built to withstand the demands of intense commercial processing environments. If your facility, fish packing plant, or distribution commissary is looking to source a high-capacity dual-lane fish skinner machine, upgrading to a continuous automated fish skinning machine line, or looking to deploy an elite automatic fish skinner to eliminate material trim loss, the Skinex QS 98 Canada edition delivers an unrivaled competitive advantage. Serving as the specialized sister model to the QS 888, the QS 98 is outfitted with an upgraded, larger-diameter transport roller explicitly engineered to handle soft, delicate fish products like whitefish, redfish, and cod. Utilizing groove-free "S-Technology," this advanced platform strips skins flawlessly in a single pass without tearing fragile muscle fibers—maximizing output yields and increasing line profitability across every shift.

???? 3 Adaptable Seafood Skinning Variations

As an elite, modern replacement for heritage systems like the old BAADER 51, the QS 98 splits processing paths efficiently, letting production crews rapidly calibrate across three major processing formats depending on final packaging goals:

Low-Loss Thin Skinning (Shallow): Relies on sharp blade mechanics mapped to micro-gaps to trim away only the outer skin layer, protecting valuable under-skin meat weights.
Silver Skinning (Pulling-Off): Deploys a specialized blunt blade array to softly strip skin away from the fillet membrane, leaving an immaculate silver tissue finish (highly optimized for single-lane salmon runs).
Industrial Deep Skinning (Restricted Bounds): Utilizes sharp cutting tracks to remove both skin and the dark side muscle layer to deliver uniform retail fillet presentations.

Key Features & S-Technology Multi-Lane Advantages

Enlarged-Diameter S-Technology Roller: Heavy-duty AISI 316L stainless steel transport cylinder features an enlarged structural diameter without peripheral lines, running in tandem with a dynamic cleaning roller to maintain steady fillet grip on soft flesh.
True Split-Lane Pressure System: Outfitted with an independent, spring-suspended divided upper pressure head assembly to smoothly stabilize dual processing tracks feeding raw fish concurrently.
Steady-Flow Water Cleaning Unit: Built-in water spray manifold constantly flushes fish slime, blood lines, and fine scales away from the active roller tracks during continuous runtime blocks to preserve optimal traction.
Polyamide Soft Pressure Rollers: Custom-formulated food-grade polyamide rollers offer gentle product handling, easy handling, and significantly extended service life over traditional rubber rollers.
Trapeze-Shaped Ultra-Rigid Casing: Custom-engineered structural geometry provides an expanded wheel base, guaranteeing maximum stability when rolling the equipment over uneven floor drainage slates or wet shop tiles.
Toolless Conveyor Extraction: High-traction infeed and discharge conveyor systems detach completely from the machine frame within seconds without tools, accelerating daily cleanup tasks.

Technical Product Specifications & Infrastructure Requirements

Active Cutting Width Clearance	Dual Track Layout: 2 × 200 mm Separate Processing Fields
Speed of Infeed Conveyor Line	29 meters / minute High-Throughput Processing Flow
Maximum Throughput Clearance Height	40 mm Max Product Height Cap
Blade Gap Adjustment Threshold	0 to 2 mm High-Precision Infinitely Adjustable Matrix
Integrated Conveyors (Infeed / Outfeed)	850 × 425 mm (With a generous 540 mm manual product loading zone)
Hygienic Water Grid Connection	G ½" Internal Pipe Thread Fitting
Operational Water Flow Consumption	≈ 200 Liters / hour Continuous Utility Intake
Main Motor Drive Performance	1.1 kW Industrial High-Torque Waterproof Drive Engine
Electrical Connection Grid Target	3 AC • 400 V • 50 Hz • 3-Phase (Other industrial voltages available upon request)
Physical Equipment Size (W × H × D)	810 × 1190 × 1820 mm
Equipment Structural Net Weight	250 kg (~551.1 lbs.) High-Stability Mechanical Footprint

Available Factory Options & Upgrades

Dedicated Waste Skin Conveyor: Integrates a secondary discharge tracking belt under the primary outfeed deck to continuously carry away skins to storage bins (Sizing footprint: 650 × 425 mm).
Extended Product Infeed Conveyor: Replaces the standard loading track with an elongated conveyor model to increase available manual sorting area spacing.
Alternative Cylinder Toothing Profiles: Custom transport rollers can be specified with alternate coarse or extra-fine tooth tracking matrices to match specialized regional fish species.

* Note: Engineered with integrated NOCK POWER PLATES® and NOCK EASY-FLOW® safety covers to optimize material pathways and guarantee lasting structural robustness. Components strip down smoothly without tools, allowing fast washdown sanitation and total compliance with strict plant health inspections.
