Industrial equipment expertise you can rely on.

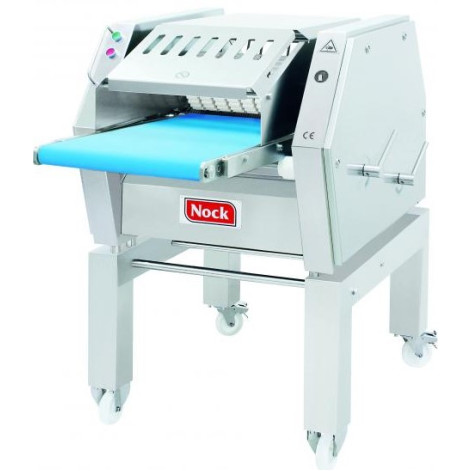

The Nock Cortex CB 503 Automatic Conveyorized Derinding Machine represents the cutting edge in high-throughput mechanical skinning, meticulously engineered for automatic inline processing in industrial food plants and commercial packing facilities. As a premium choice among modern automatic derinding machines, this model is built with an advanced 500 mm cutting width and medium-length material conveyors to manage large product volumes continuously. Manufactured by Nock, a brand trusted worldwide for durable engineering and industrial yield optimization, this high-performance derinding machine features a specialized pressure unit that is infinitely variable in height. Implementing this top-tier derinder setup guarantees flawless rind removal, reduced operator handling, and maximum protein recovery across every batch.
| Operational Cutting Width | 500 mm |
| Blade Gap Range | 0 - 5 mm (Infinitely Adjustable) |
| Linear Cutting Speed | 29 meters per minute |
| Max Meat Height Clearance | 120 mm |
| Infeed Conveyor Area | 850 mm x 490 mm (Apply length: 300 mm) |
| Standard Discharge Conveyor Area | 850 mm x 490 mm |
| Skin Discharge Conveyor (Optional) | 850 mm x 490 mm |
| Overall Dimensions (W x H x D) | 865 mm x 1350 mm x 2280 mm |
| Equipment Net Weight | 285 kg (approx. 628.3 lbs) |
| Motor Performance Rating | 1.1 kW Industrial Drive |
| Electrical Network Connection | 3 AC - 400 V - 50 Hz (Alternative custom voltage options available upon individual plant request) |
* Note: The professional Nock Cortex CB 503 inline configuration can be further optimized by introducing optional plastic modular belts or an inflated mechanical pressure balloon, allowing food plants to customize their material handling layout perfectly.
