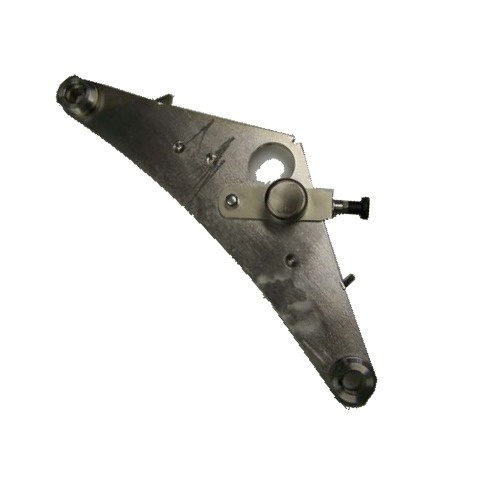

Traverse Exploded View

Type: F453324
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2121

* Traverse Exploded View IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Traverse Exploded View

Type: F453324
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2121

* Traverse Exploded View IR 112:
--F253325 Traverse
--F250313 Flange
--F450314 locking device
--F20455 Hexagonal bolt
--F22888 Washer
--F20134 Cap nut
--F20202 Washer
--F250264 Bushing
--F29233 Locking bolt

Traverse Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	F253325	Traverse	500 x 166.8 x 12	1
2	F250313	Flange	Ø 20,5 x Ø 50 x 29	2
3	F450314	locking device	IR 112	1
4	F20455	Hexagonal bolt	DIN933 M 8 x 25	1
5	F22888	Washer	DIN125 A 8,4	1
6	F20134	Cap nut	DIN917 M 8	1
7	F20202	Washer	DIN125 A 13	1
8	F250264	Bushing	Ø 12 x Ø 16 x 9	1
9	F29233	Locking bolt	GN 617-6-A-NI	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Traverse Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	F253325	Traverse	500 x 166.8 x 12	1
2	F250313	Flange	Ø 20,5 x Ø 50 x 29	2
3	F450314	locking device	IR 112	1
4	F20455	Hexagonal bolt	DIN933 M 8 x 25	1
5	F22888	Washer	DIN125 A 8,4	1
6	F20134	Cap nut	DIN917 M 8	1
7	F20202	Washer	DIN125 A 13	1
8	F250264	Bushing	Ø 12 x Ø 16 x 9	1
9	F29233	Locking bolt	GN 617-6-A-NI	1
