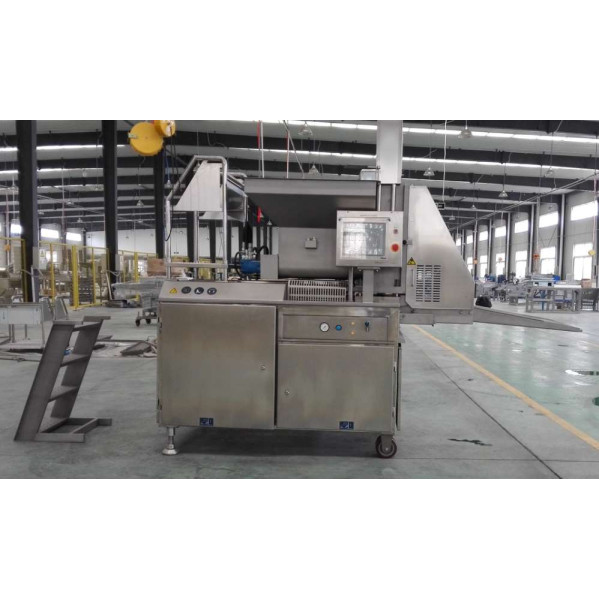

Large Automatic Multi-Forming Machine (600mm)
The industrial-scale Large Automatic Multi-Forming Machine is a high-volume volumetric portioning system engineered to support massive output metrics on heavy-scale processing floors. If your food facility is sourcing a premium industrial automatic food forming machine, evaluating an automated chicken nugget former line, or upgrading your track with a heavy-duty hamburger former, this ultra-precise system delivers elite operational consistency. Functioning as a continuous food former, meat ball former, and patty former, it utilizes a proprietary high-capacity four-screw feeding system. This configuration moves minced or sliced proteins uniformly into custom molding blocks, dramatically reducing material shear while preserving a premium natural meat texture. Its precise portion controls maximize yield predictability and manage ingredient cost targets perfectly across intensive production runs.
Engineered specifically to anchor large-scale, automated processing operations, this machine connects seamlessly into a fully automatic prepared food system. It integrates inline with industrial wet battering coaters, breading stations, continuous fryers, spiral steam cookers, flash cryogenic IQF freezing tunnels, and high-speed multi-head packing machines.
- Premium Siemens PLC Command: Equipped standard with an original German SIEMENS PLC micro-processor complete with an interactive central touch screen operational display and an integrated automated diagnostic error alarm system.
- Patented Four-Screw Feed Geometry: Advanced multi-screw tracking propels raw product into templates uniformly, avoiding product backtracking or crushing to ensure premium mouthfeel.
- All-German Pneumatic Controls: Incorporates a 100% original German pneumatic valving network to deliver instantaneous, perfectly timed mold slide indexing.
- Heavy-Wear Hydraulic Infrastructure: Built with premium heavy-duty hydraulic parts to guarantee vibration-free, consistent filling pressures during continuous industrial operation.
- Magnetic Enclosure Safeguards: High-security magnetic safety interlock switches halt all mechanical motion instantly if the protective covers or guard assemblies are compromised.
- Strict Sanitary Code Compliance: Fabricated using premium food-grade stainless steel paired with food-inert non-metal plastics, offering an easy-to-sanitize layout that meets absolute CE sanitation authorization codes.
| Massive Production Throughput | About 500 - 1,000 kg / hour (Depending closely on product geometry) |
| Conveyor Belt Operating Width | 600 mm |
| Mechanical Operating Velocity | 30 ~ 70 strokes per minute |
| Adjustable Product Thickness Limits | 6 ~ 40 mm |
| Portion Sizing Accuracy | Weight Error Variance: ≤ 1% |
| Maximum Sizing Capabilities | 150 mm maximum product diameter template clearance (for broad round burgers) |
| Adjustable Filling Pressure | 3 ~ 15 Mpa (Fully Customizable Micro-Controls) |
| Utility Supply Requirements | Pneumatic Compressed Air Pressure: 6 Bar | Supply Input Water Pressure: 2 Bar |
| Total Motor Drive Power Load | 15.12 kW Heavy-Duty High-Yield Motor Array |
| Overall Dimensions (L x W x H) | 3170 mm × 1176 mm × 2430 mm |
✔ Versatile Material Processing Application Range
Widely handled in high-capacity continuous production loops across the commercial meat, seafood, vegetable, and convenience foods sectors. Delivers premier form retention for minced or sliced:
- Meat & Poultry: Dynamic automated forming of large beef patties, pork sausage links, uniform chicken nuggets, and dinosaur shapes.
- Seafood Lines: Precision volume layout of fish cakes, fish sticks, and minced shrimp portions.
- Vegetable & Crop Lines: Processing of vegetable patties, seasoned potato hash browns, and custom formed tuber crop shapes.
Industrial Engineering Recommendation:
To achieve continuous material feed speeds and manage automated ergonomic workflows with this large-scale system, we highly recommend integrating an industrial Stainless Steel Column Lifter / 200-Litre Meat Buggy Tote Lifter. This enables seamless, touch-free automatic overhead payload dumping directly into the high-capacity forming hopper.
