- Stock: On Order
- Brand: CM-HM-CN
- Type: Production: 200-600 Kg/Hr

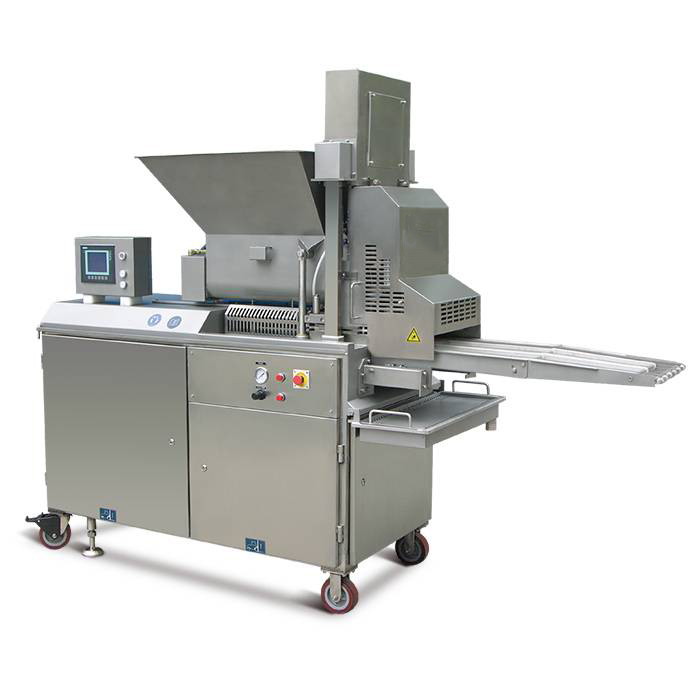

Medium Automatic Multi-Forming Machine
The industrial-grade Medium Automatic Multi-Forming Machine represents the pinnacle of high-precision volumetric portioning, purpose-built to deliver immense production outputs with flawless product weight consistency. If you are sourcing an advanced multi-forming machine, evaluating an efficient meat ball former near me, or tracking down the absolute best automatic multi forming machine in Ontario Canada, this automated system is engineered to maximize your line yields. Functioning as a high-capacity industrial food former and heavy-duty patty former, it utilizes a proprietary four-screw feeding layout that fills molds cleanly while minimizing product shear and protecting the delicate structure of your ingredients. Integrating this inline asset allows you to automatically transition raw inputs through filling, shaping, and precise conveyor discharge routines, guaranteeing excellent portion cost control and a premium homestyle product texture.
Engineered with exceptional upstream and downstream structural connectivity, this system integrates seamlessly into full-scale, hands-free production lines. It can be linked directly inline with industrial battering machines, breading stations, continuous fryers, spiral cookers, instant IQF freezing tunnels, and high-speed packaging tracks to achieve complete process automation.
- Premium Siemens PLC Core: Outfitted with an original German SIEMENS PLC processor paired with an interactive central touch screen display panel and an automatic diagnostic failure alarm system.
- Advanced Four-Screw Feeding: Proprietary four-screw feed geometry moves material uniformly into the template without crushing or over-working, preserving premium texture profiles.
- All-German Pneumatic Engineering: Leverages a completely original German pneumatic valve assembly system to guarantee lightning-fast, repeatable mold indexing.
- Heavy-Duty Hydraulic Blueprint: Built with premium hydraulic components to deliver reliable, vibration-free pressure regulation across intensive operating shifts.
- Magnetic Guard Protection: Integrated proximity magnetic safety switches automatically cutoff mechanical operation the instant safety panels or covers are breached.
- Sanitary Build Compliance: Fabricated from food-grade stainless steel paired with premium inert non-metal plastics, providing a robust, easy-to-sanitize layout that holds complete CE authorization.
| Hourly Production Capacity | About 200 - 600 kg / hour (Depending closely on product geometry) |
| Conveyor Belt Operating Width | 400 mm |
| Mechanical Operating Speed | 15 ~ 55 strokes per minute |
| Adjustable Product Thickness | 6 ~ 25 mm |
| Portion Sizing Accuracy | Weight Error Variance: ≤ 1% |
| Maximum Sizing Capabilities | 135 mm maximum diameter template clearance (for round burger profiles) |
| Adjustable Filling Pressure | 3 ~ 15 Mpa (Fully Customizable Controls) |
| Utility Supply Requirements | Compressed Air Pressure: 6 Bar | Input Water Pressure: 2 Bar |
| Total Motor Drive Power Load | 11.12 kW Heavy-Duty Total Power System |
| Overall Dimensions (L x W x H) | 2828 mm × 830 mm × 2136 mm |
| System Certifications | Fully CE Certified Layout Configuration |
✔ Versatile Material Processing Application Range
Masterfully optimized to handle a vast spectrum of minced, ground, or sliced materials for the food, catering, and mass manufacturing sectors. Delivers premier form retention for:
- Meat & Poultry: Automated forming of beef burgers, pork patties, chicken nuggets, and tailored meatball blanks.
- Seafood Lines: High-precision portioning of minced fish cakes, shrimp patties, and seafood sliders.
- Vegetable & Crop Lines: Processing of potato patties, hash browns, veggie burgers, and formed tuber crop selections.
* Note: The heavy-duty architectural frame of this automatic multi-shaper combines massive processing force with rapid cleaning loops, delivering low maintenance costs and complete code compliance under continuous industrial processing shifts.
