Nock Cortex CB 495/5K Slicer Circular Blade Cutting Machine The industrial-grade Nock Corte... Read More

Available Options

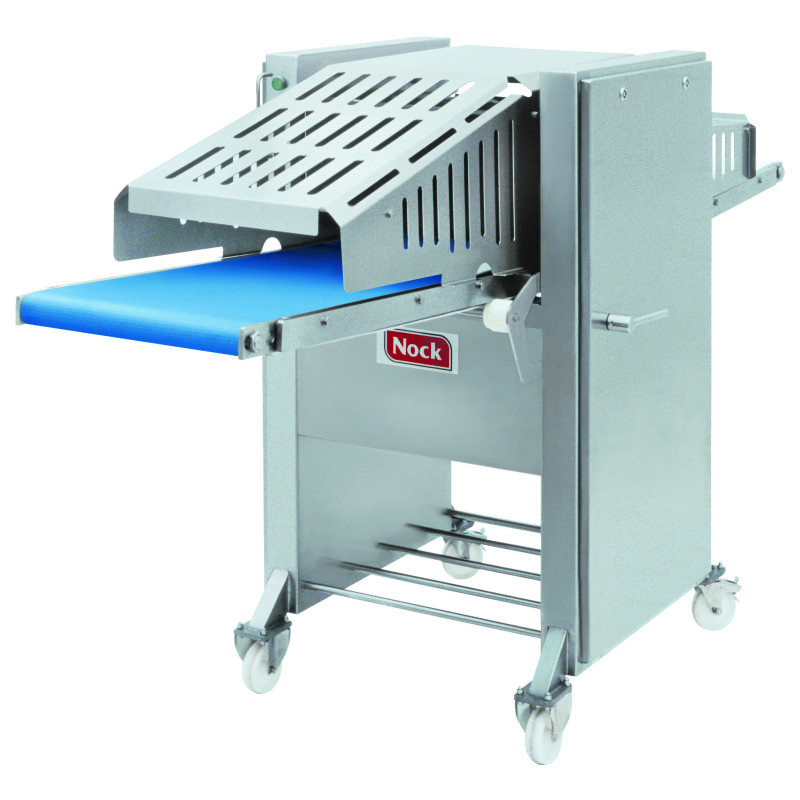

Nock Cortex CB 495/5K Slicer Circular Blade Cutting Machine

The industrial-grade Nock Cortex CB 495/5K Slicer is a highly economical commercial circular cutting machine near me engineered to deliver enormous portioning capacities with zero structural product deformation. If you are aiming to source top-tier commercial meat cutter machines in Ontario Canada or deploying an efficient industrial circular slicer near me, this inline workhorse maximizes your throughput while slashing active labor costs. Built as a premier choice among modern Nock cutting machines in Ontario Canada, the Cortex CB 495/5K operates with a spacious 400 mm cutting width and flexible blade setups. Its high-grip circular knives dip cleanly into an underlying counter-roller to partition skin-on or heavily tendoned primals seamlessly, ensuring an incredibly smooth, smooth cut appearance.

Optimized Product Slicing Scope

The ideal volume system when massive quantities of fresh, boneless product lines must be processed into uniform slices or thin strips in short intervals. Highly recommended for processing:

  • Beef scallops, quick steaks, pork loin scallops, and thin pork belly strips.
  • Fresh poultry breasts, whole fish, or scaled fish fillets.
  • Offal (commercial processing for lungs, paunches, or stomachs).
  • Pre-cut diced material blocks configured perfectly for background cutters or industrial mincers.
Key Features & Mechanical Advantages
  • Flexible Grid Adaptability: Cutting blade distance arrays can be adjusted or manually swapped out across multiple standardized steps.
  • Tight Cutting Tolerance: Achieves clean dimensional portion tracking down to a technical minimum blade distance of 6 mm to 8 mm depending on product density.
  • 90° Automated Cubing: Two independent machines can be positioned at a right angle to establish a continuous, high-volume automated cubing line requiring zero secondary labor.
  • NOCK Easy-Flow Safety Cover: Streamlined protective shielding cover incorporates automated pneumatic springs to maximize safety parameters and prevent debris accumulation.
  • 15mm NOCK Power Plates: High-rigidity internal mechanical structural plates provide outstanding chassis robustness, continuous mechanical alignment, and smooth, easy-to-clean surfaces.
Available Modular Options & Upgrades

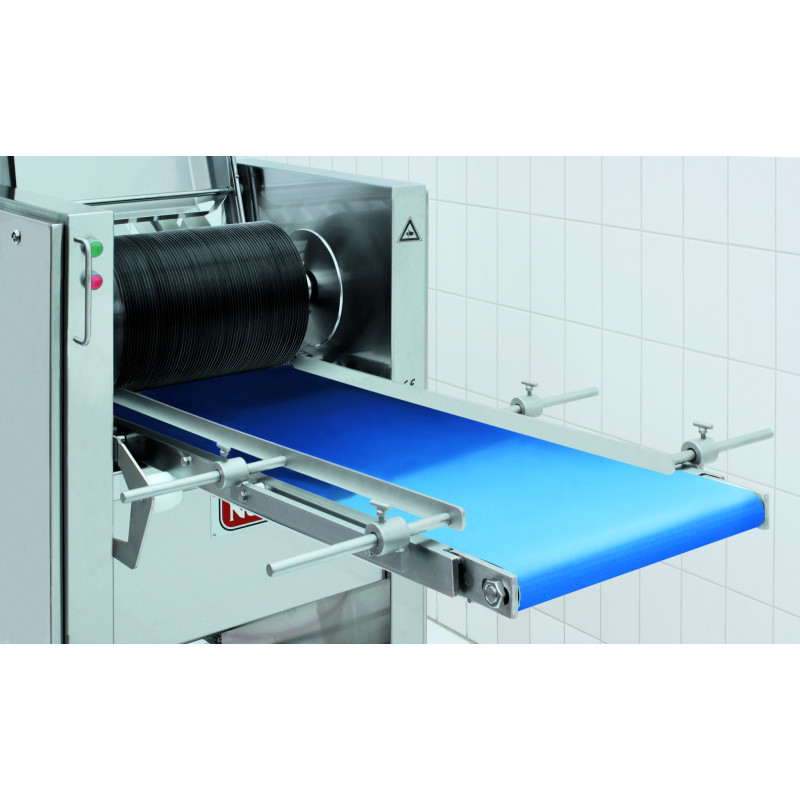

  • Adjustable lateral guiding rails integrated directly onto the infeed conveyor track for raw item stabilization.
  • Mobile technical cleaning wagon built to safely clean, sanitize, and store up to 2 independent blade shafts.
  • Alternative intersection cutting roller fitted with a long-life scraper comb assembly (non-quick change style).
  • Plastic modular intersection roller core engineered with an all-stainless steel core layer.
  • Heavy-duty structural transport and lockable storage box enclosure custom-fit for the blade shaft.
  • Extended conveyor tracking lengths paired with optional product scrapers on the discharge belt.
Technical Product Specifications
Supported Blade Diameters 200 mm / 300 mm Dual Compatibility
Max. Throughput Height Clearance 70 mm (With 200 mm blades) / 120 mm (With 300 mm blades)
Maximum Blade Equipment Space 400 mm
Conveyor Belt Track Width 435 mm
Max. Throughput Width Capacity 475 mm
Linear Conveyor Slicing Speed 18 meters per minute
Minimum Blade Distance Limit 6 mm (depending closely upon product characteristics)
Available Blade Distance Grids 6 - 7 - 8 - 9 - 10 - 11 mm
Overall Physical Dimensions (W x H x D) 820 mm × 1300 mm × 2450 mm
Equipment Structural Weight 260 kg (approx. 573.2 lbs) with an 8 mm distance grid and 200 mm blade shaft loaded
Motor Performance Rating 1.1 kW Heavy-Duty Slicing Drive
Electrical Network Connection 3 AC - 400 V - 50 Hz
(Alternative global voltage configurations such as 220V, 480V, or 575V 60Hz provided upon custom factory order)

* Note: Main fabrication consists of premium food-grade stainless steel paired with a quick-release toolless conveyor belt dismantle path. This guarantees ultra-fast cleaning cycles and maximum compliance with plant safety guidelines.
